Biometric-Fingerprint-Tablet-MOXA7

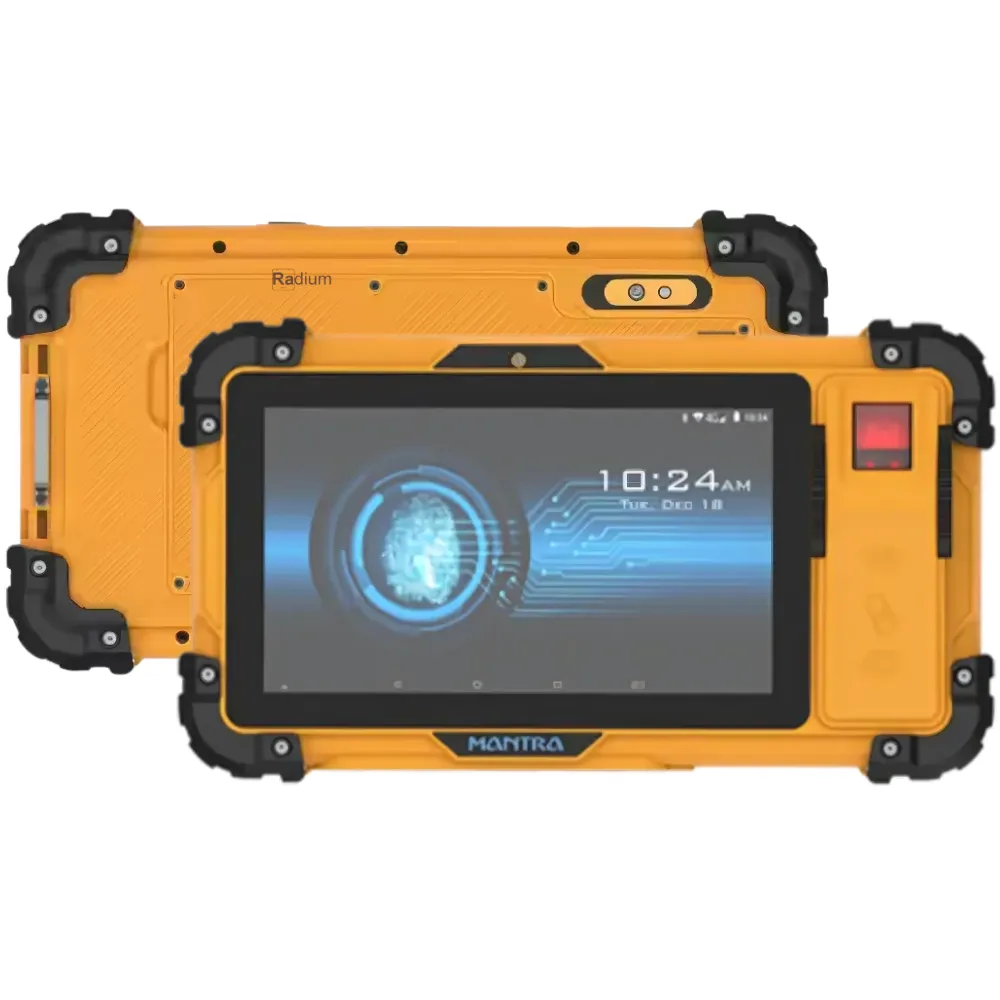

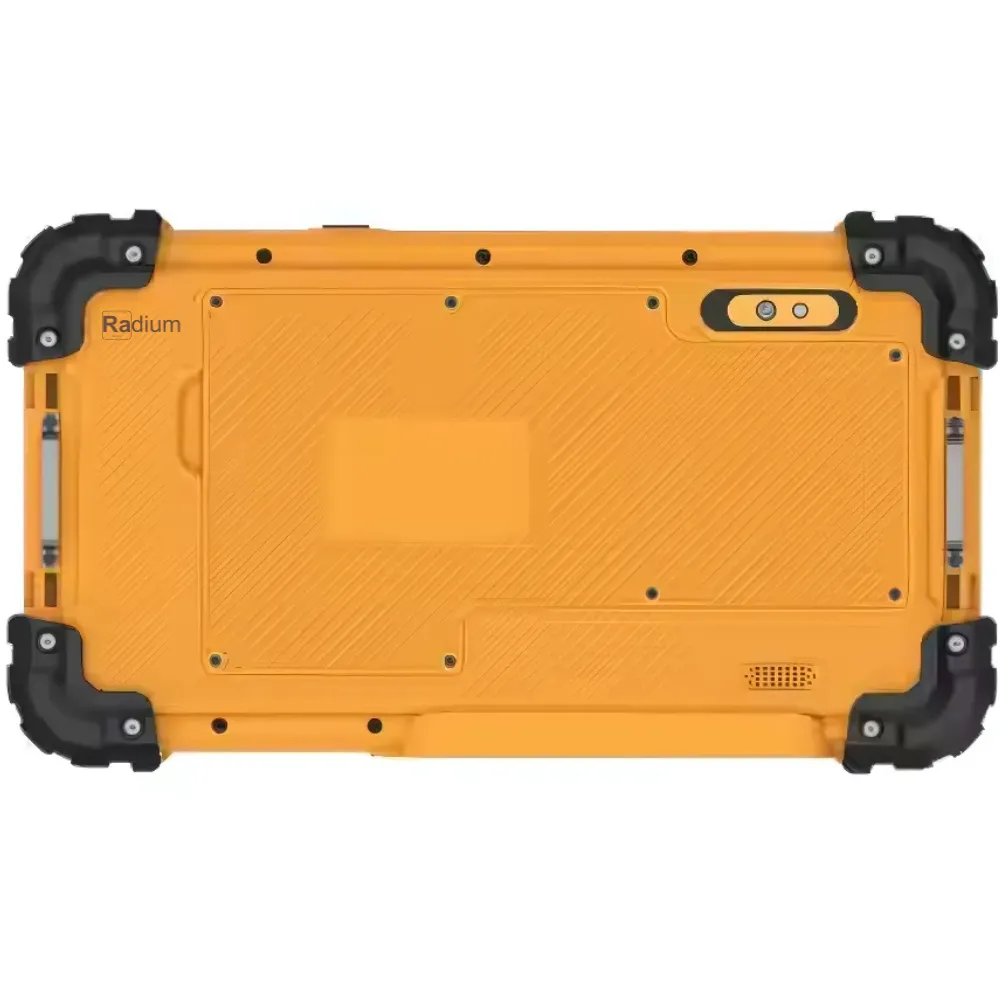

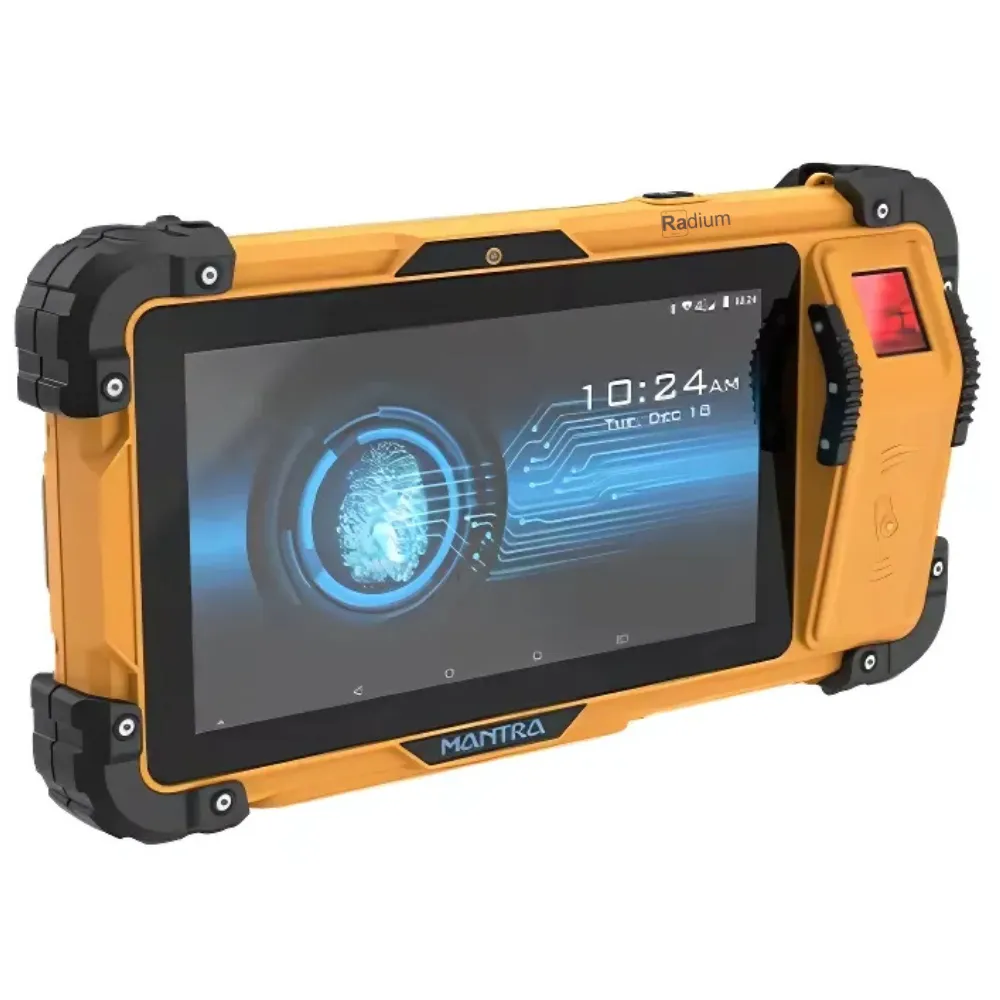

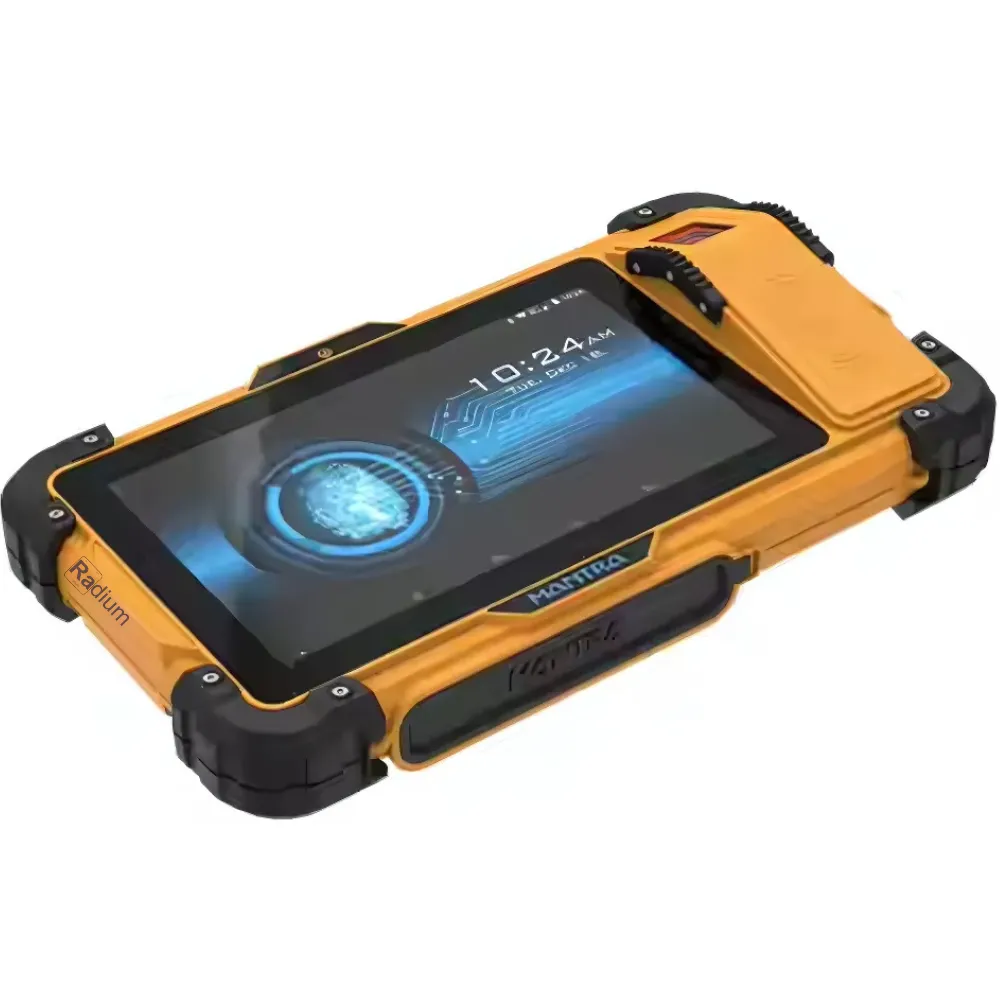

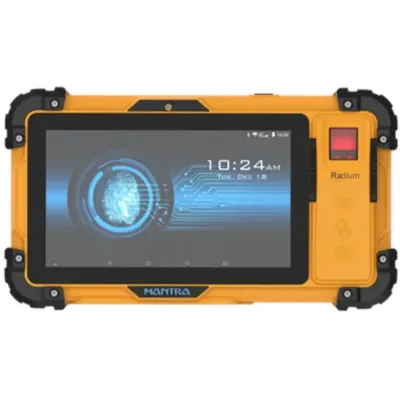

The MOXA7 fingerprint biometric tablet from Mantra is a portable and rugged biometric device.

It comes with a wide range of versatility to suit different registration and identification projects. This biometric tablet has improved fingerprint recognition and a clear camera that can scan barcodes and QR codes. Making it suitable for applications.

With a 7.0-inch high-quality IPS LCD display and a quad-core ARM Cortex A53 processor, MOXA7 has a human-friendly interface and stable operation. This machine is designed for harsh working conditions. Including protection against water and dust with a rating of IP65, so it can be used in the field. Its portability allows users to capture images using the mobile screen that comes with the device even if it takes a long time.

MOXA7 has Communication Capabilities, GPRS, 3G, 4G, Wi-Fi, Bluetooth, Ethernet, USB for multiple accesses that can be easily integrated. There is also a 5 MP Berlin autofocus digital camera with touch control to capture clearer, more cost-effective facial images for Purpose of biometric identification

It has a rechargeable battery capacity of 8000 mAh and guarantees a full day of use. It runs on the custom-built Android operating system and is compatible with biometric product quality standards: it can be used for Identity Registration & Authentication, Citizen Enrollment & Verification, Law Enforcement & Security, Humanitarian Aid & Relief Management, Banking & Retail KYC, Time-Attendance Management and Border & Access Control.

People who want to buy the MOXA7 Fingerprint Biometric Tablet in India at an affordable price can purchase it from the Radium Box store. If you need help installing drivers or would like more information on pricing or other new features about Radium Box, please get in touch. us at 843438443 or email us at [email protected] Every customer is important to us. And our dedicated customer support will help you get the most out of your MOXA7 device.

Specification

• Product

  • Brand: Mantra

  • Model Number: MOXA7

  • Security Level: STQC & FBI PIV Certified

  • Warranty: 1 Year

  • RD Service: Available

  • Origin: Made in India

  • Manufactured by: Mantra Softech India Private Limited

• OS Support & System Requirements

  • OS Support: Customized Android OS / GMS Certified Android OS (optional)

  • CPU: 1 GHz, 64-bit ARM Cortex-A Quad-Core Processor

  • Memory: 1GB RAM

• Images & Capture

  • Sensor Type: FAP10 Optical Fingerprint Scanner (FAP20 Optional)

  • Camera: 2MP Front Camera & 5MP Auto Focus Rear Camera with Flash LED

  • Resolution: 1024 x 600 pixels (Display)

  • Image Size: Supports various formats for fingerprint and image capture

  • Supported Image Formats: Compatible with biometric standards for fingerprint and image data

  • FBI / Image Certifications: STQC & FBI PIV Certified

  • Speed/API Interface: Camera-based barcode and QR code scanner, supports 1D & 2D formats

  • Quality Scoring: Automatic quality assessment during capture

• Weight & Dimensions

  • Product Weight: Approx. 0.750 kg

  • Scanner Assembly Dimensions: 248.5 x 141.0 x 49.5 mm

• Power & Connectors

  • Interface: Ethernet, USB2.0 Type A, Micro USB OTG Supported

  • Connector Type: USB Type A and Micro USB

  • Power Source: AC/DC Adapter Input AC: 100~240V, 50Hz; Output DC: 5V/3A

  • USB Voltage Level: 5V

• Conformance & Certifications

  • USB Certification: Yes

  • USB-IF compatibility: Yes

  • FCC/CE/UKCA Conformance: CE, RoHS, BIS certified

  • Air Discharge / Contact Discharge: Not specified

  • Equipment Safety: Compliant with IEC standards for safety

  • Hazardous Material: RoHS compliant

  • Vibration Test: Not specified

• Compliance/Certifications

  • Fingerprint Template Output Formats: Compliant with biometric data interchange formats

• Temperature & Humidity

  • Operating Temperature: 0 - 50 °C

  • Humidity: Non-condensing, 10% - 90% RH

  • Storage Temperature: 0 - 50 °C

• Surface & Systems

  • Ingress Protection / Water / Dust: IP65 rated for water and dust resistance

  • Surface Durability: Shockproof design for rugged use (up to 1.0M falling)

  • Surface Protection: Toughened glass display (6H hardness)

  • Cleaning & Sanitization: Cleanable surfaces suitable for hygiene standards

• Compliance & Regulations

  • FCC: Yes

Key Features

• Scans QR codes efficiently and can scan a wide variety of barcodes for efficient data capture.
• Meets strict authentication standards for biometric devices. Ensuring reliability and compliance

• High-quality fingerprint recognition technology for secure identity verification

• Built-in GPS function for accurate location tracking during operations.

• Long battery life to support long-term use without frequent recharging.

• User-friendly interface with access to a wide range of applications and functionality.

• Flexible connectivity options available for seamless integration into existing systems.

• Secure Access Module (SAM) to increase data security and encryption capabilities

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
