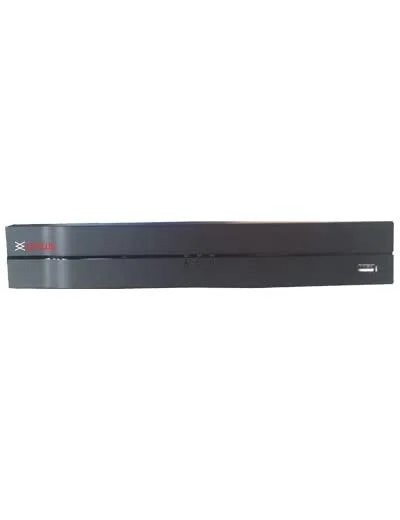

CP Plus CP-UNR-104F1 DVR

CP Plus DVR

The new CP Plus CP-UNR-104F1 DVR, available from the Radiumbox official website, also allows for continuous and seamless video monitoring. This DVR was designed and constructed to be dependable. It features an embedded Linux operating system (OS) and an embedded bipole processor that provide excellent performance. It can accept a 4-channel IP camera input and is designed to offer all-in-one surveillance applications.

This DVR provides high video rendering smoothness and effective compression by utilizing Instastream, H.265, Smart H. 264+, and H. 264 codec decoding. Take advantage of real-time, crystal-clear video output with up to 8MP quality (including previews and playback) and all recorded data. With a maximum network throughput of 80 Mbps, the system allows for nearly any transfer speed because it is latency-free.

By using the CP Plus CP-UNR-104F1, 1 SATA HDD sized up to 8TB can be used for high capacity storage and ensuring that critical recordings never run out of space is guaranteed. It also has 2 USB ports (USB 2.0) for ease of connection and data transfer. Simultaneous video output to the VGA/HDMI port at 1080P resolution is implemented and fits most kind of display devices.

This DVR supports multi-brand network cameras, and is ONVIF compliant in order that devices can be accessed to a wide range of compatibility. The advantage is another convenience that it provides the mobile application (iCMOB and gCMOB) for the field monitoring, and control software (CMS) centrally monitoring softwares (KVMS Pro).

No matter if you are looking for an efficient surveillance in your house or business, this DVR does it all. Expert customer dedication lends to unsurpassed expert help with Radiumbox. Buy it right now on Radiumbox at the lowest price in India, with free shipping and COD available. Please contact us for help/any query at +91-8434384343 or [email protected].

Specification

• Product

• Brand: CP Plus

• Model: CP-UNR-104F1

• Type: DVR

• Warranty: 1 Year

• Processor and Operating System

• Processor: Industrial-grade embedded processor

• Operating System: Embedded LINUX

• User Interface: Web/local GUI

• Video Features

• Video Output: 1 VGA/1 HDMI (simultaneous video output), maximum resolution 1080P

• Video Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF

• Video Recording:

• 80 Mbps for access

• 80 Mbps for storage

• 60 Mbps for forwarding

• Video Display Split: 1/4

• Motion Detection: Supported

• Video Loss: Supported

• Storage and Backup

• Hard Disk: 1 SATA 2.0, up to 8TB

• Recording Modes:

• Manual recording

• Alarm recording

• Motion detection recording

• Timed recording

• Backup Mode: USB device

• Playback Features

• Playback Options: Play, pause, stop, fast forward, fast backward, rewind, play by frame, full screen, backup (cut/file), partially enlarge, audio on/off

• Network and Connectivity

• Ethernet: 1 RJ-45 port (10/100 Mbps)

• Protocols Supported: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T, profile S, profile G), RTSP, CGI, SDK

• Interface Ports

• USB Ports: 2 (1 rear USB 2.0, 1 front USB 2.0)

• Power and Consumption

• Power Supply: DC 12V, 1.5A

• Power Consumption: <10W (without HDD)

• Environmental and Physical Features

• Working Temperature: -10°C to 45°C (+34°F to +113°F)

• Dimensions (W × L × H): 260 mm × 225 mm × 47.6 mm

• Weight: 0.81 kg (without HDD)

• Additional Features

• Smartphone Compatibility: iPhone, iPad, Android Phone

Key Features

• 4-Channel IP Camera Input. It can connect up to 4 IP cameras to record and watch at the same time.
• Advanced Video Compression-Instastream/ H.265/ Smart H.264+/H.264.

• High Resolution Support: It goes along with 8-MP resolution; thus high-quality video preview and playback is present.

• High Frequency availability: With up to 80 Mbps of network bandwidth, the DVR/NVR would be able to ensure fluent video stream and recording.

• High Storage Capacity: It has a Storage capacity of up to 8 TB of SATA HDD.

• Versatile connectivity: 2 USB ports (USB2.0) ensure the channel of additional flexibility.

• Multiple Video Outputs: Provides simultaneous HDMI and VGA video outputs, whereas HDMI monitoring maxes out at 1080P.

• Wide camera compatibility: A wide array of network cameras are supported.

• ONVIF Conformant: Quick and easily installs with all ONVIF-compliant network cameras!

• Mobile and CMS Software: It is packed with mobile applications - iCMOB and gCMOB; and CSM Software - KVMS Pro-to remotely view and manage.

Note: It is recommended to verify all the characteristics and costs before making any purchase.
