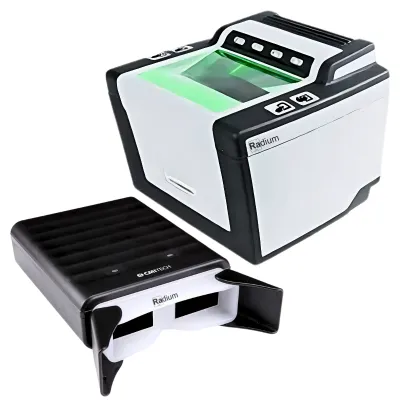

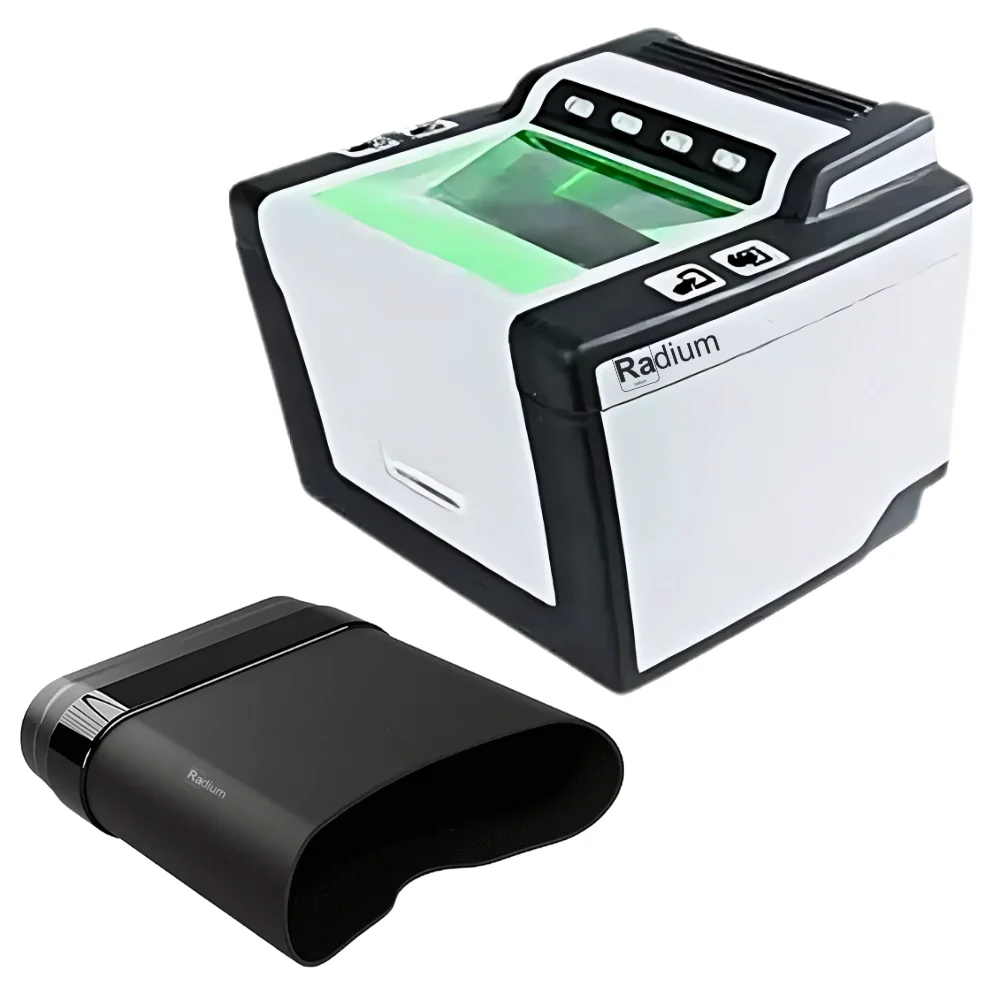

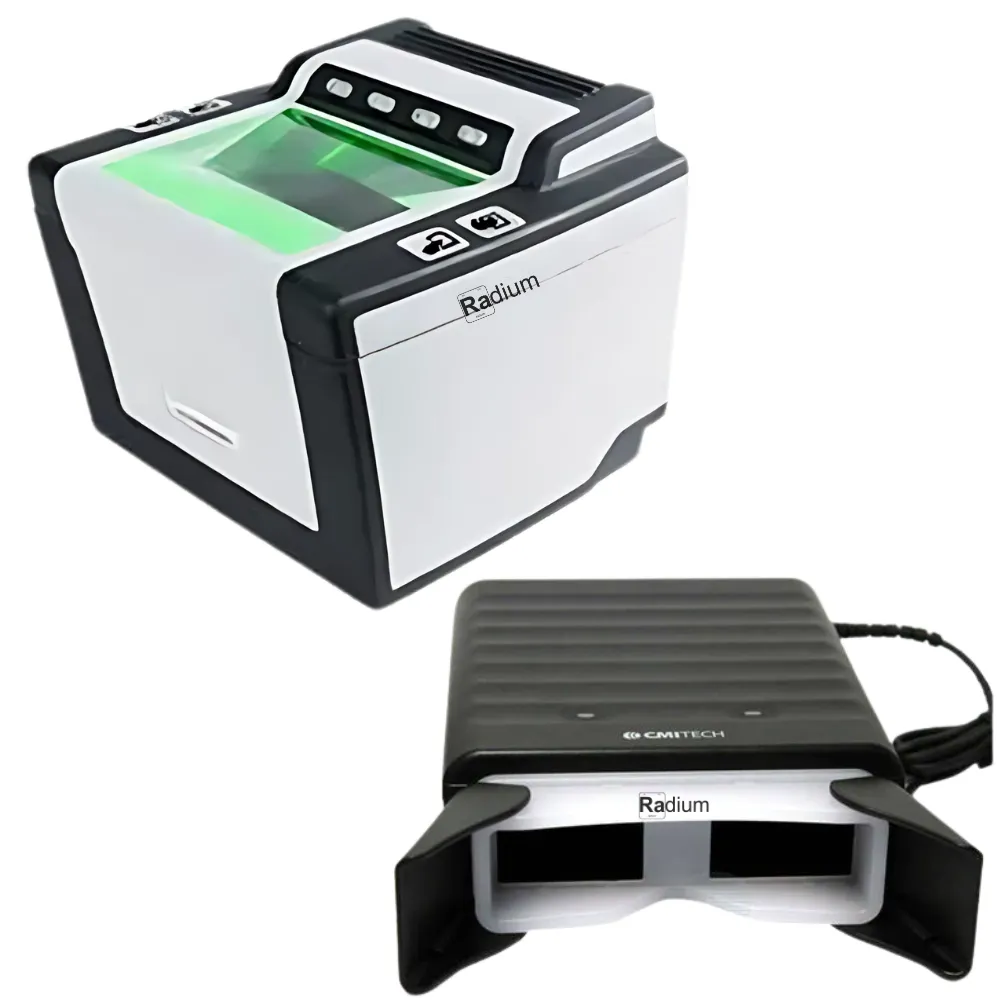

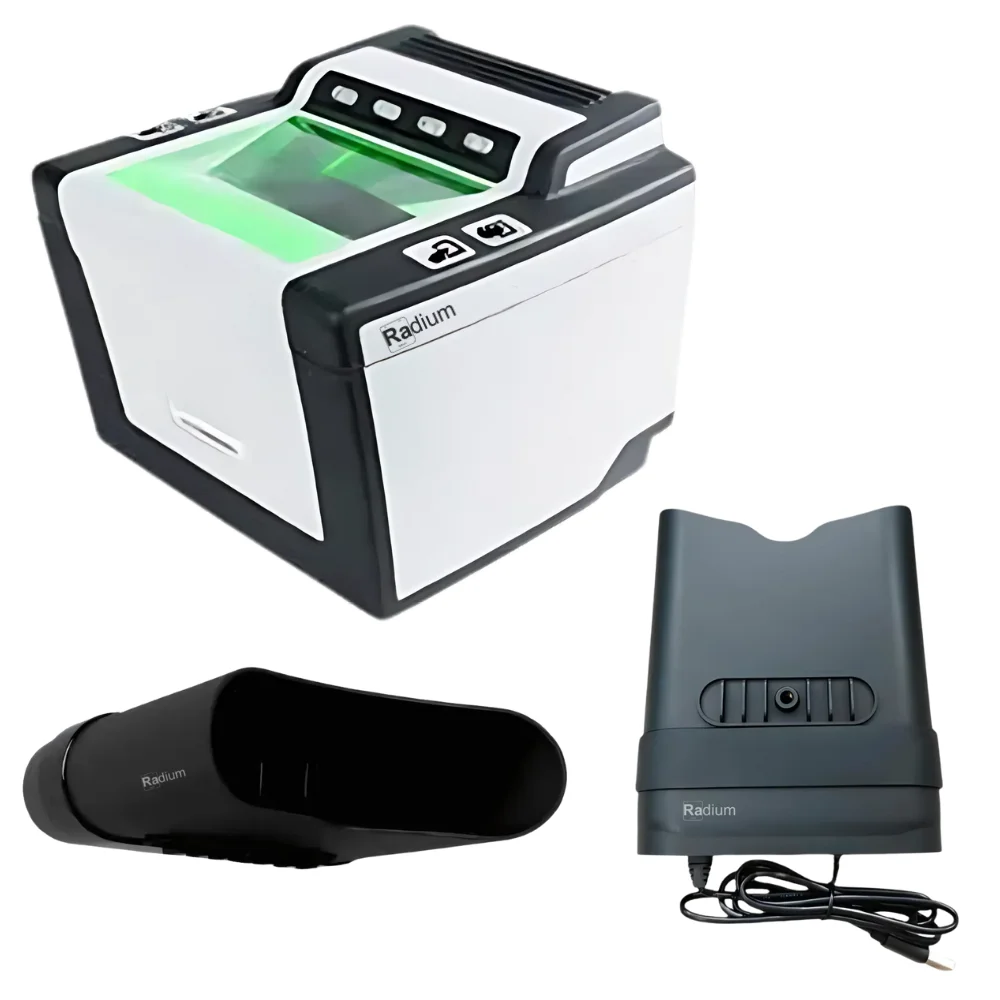

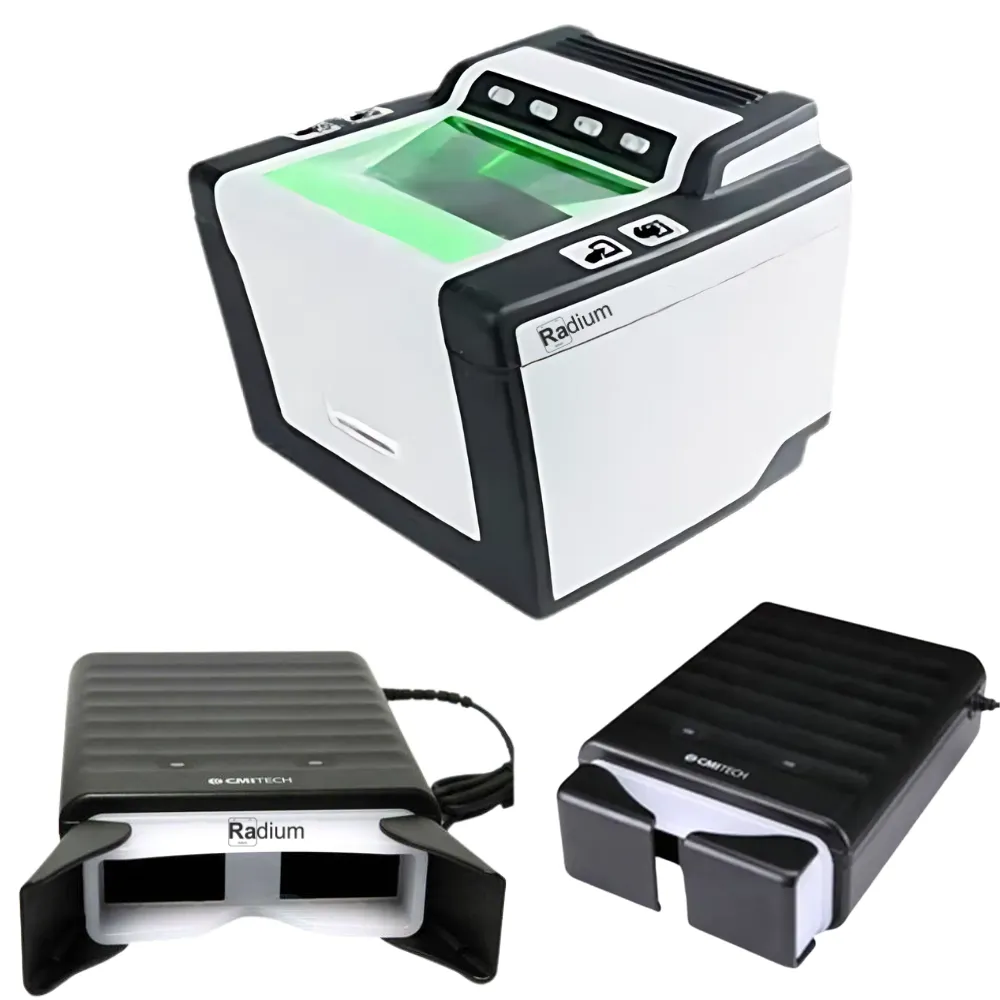

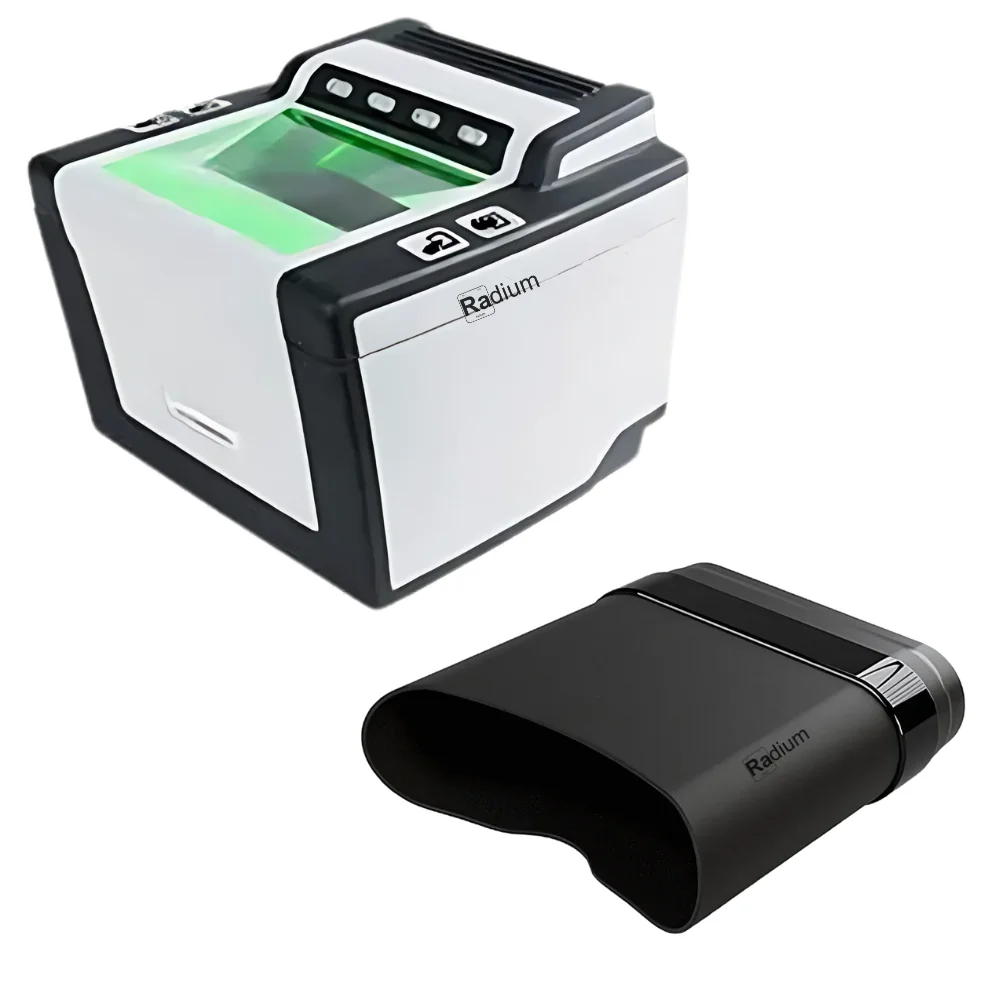

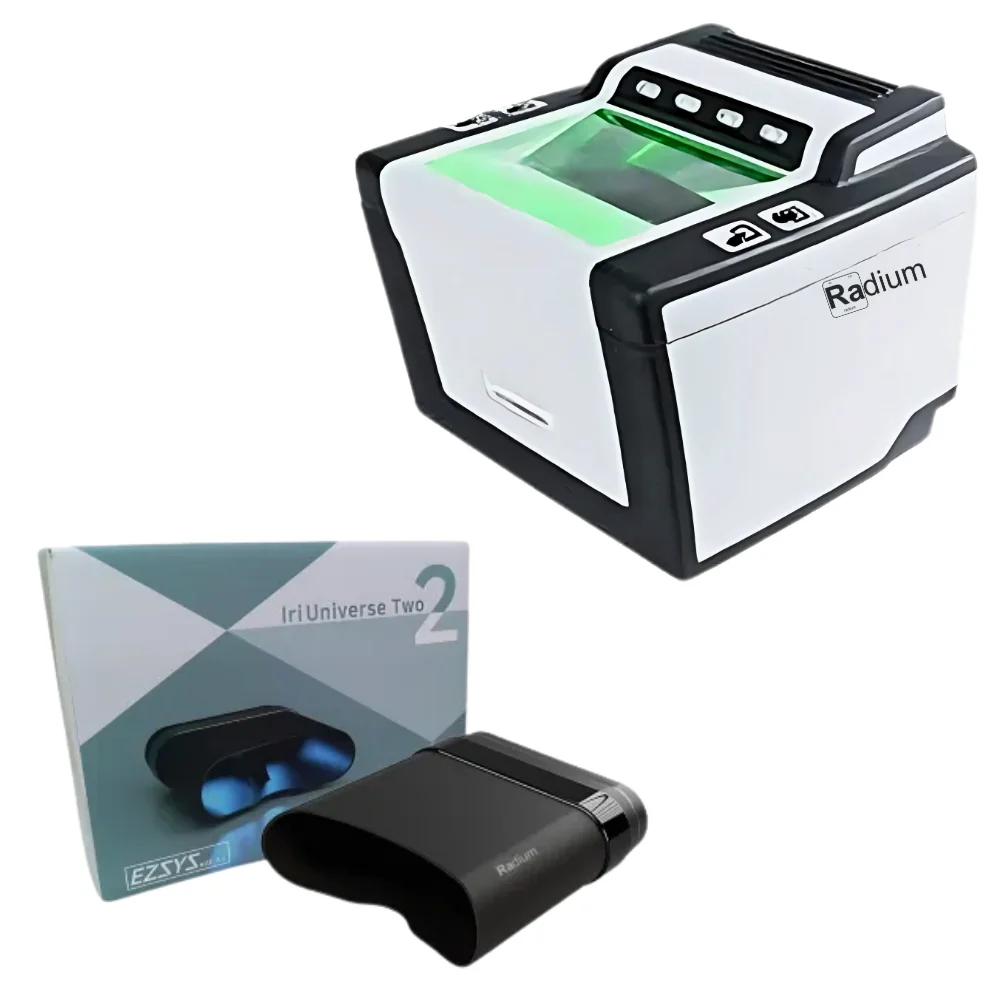

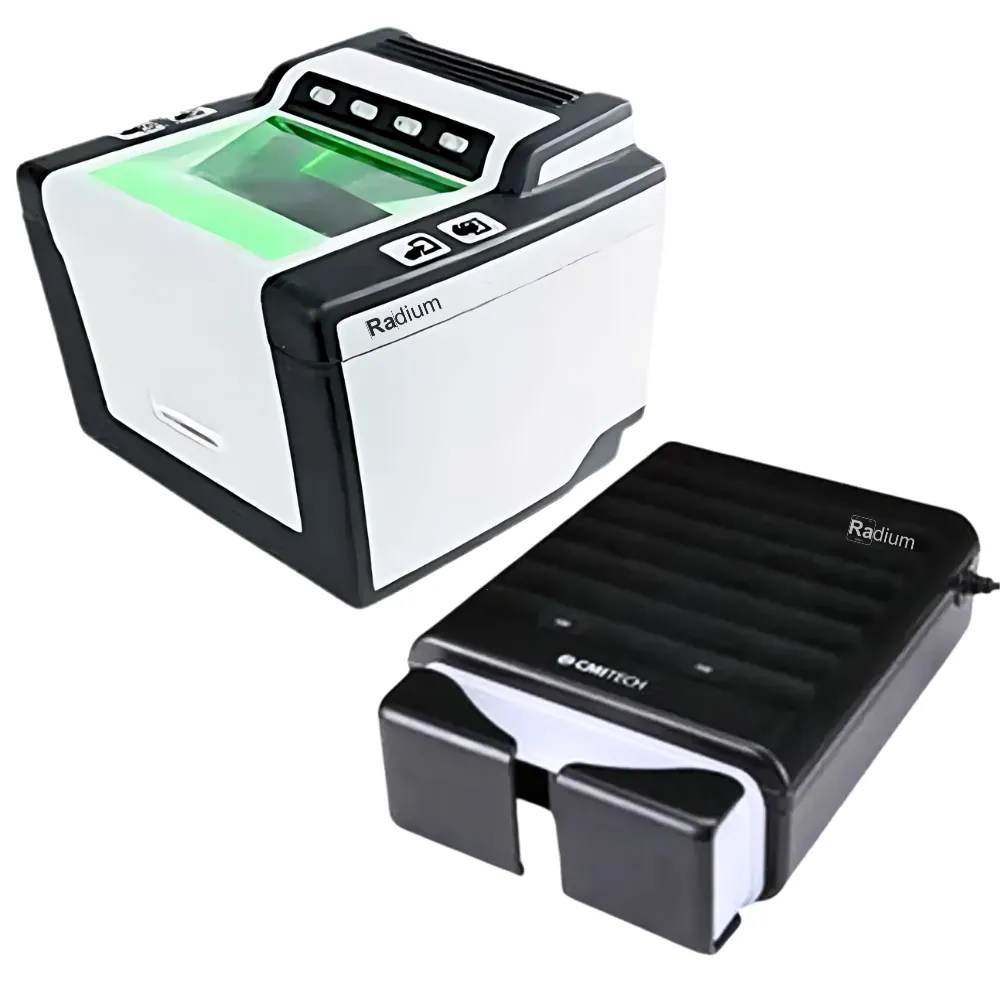

CS500F Scanner and BMT20 Dual Iris Scanner UID AADHAAR Biometric Kit

AADHAAR Biometric Kit

The products include the CS500F Scanner and BMT20 Dual Iris Scanner UID AADHAAR Biometric Kit to address the requirement of biometric enrollment and identity authentication. This impressive kit comprises the advanced fingerprint as well as the iris scanner, which would be most suitable for the Aadhaar enrollment as well as identity security.

CS500F Fingerprint Scanner

Designed around this package is the CS500F Fingerprint Scanner: a small and light 10-print machine that has been certified by the FBI under the App-F standard, as well as outfitted with USB 3.0 technology to ensure consistent and quick scanning. It can take both rolled and flat fingerprints; four slap fingerprints and two thumbs at the same time to be able to utilize the 4+4+2 method to take all ten fingerprints. It has a high quality imaging so as to capture clear fingerprint images, a factor that is important for identification purposes.

The company has ensured that the CS500F is very easy to use in its standard form. It has a 12 tri-color LED user interface, which shows feedback to the user, in case of fingerprint scanning guiding the user on how to capture the fingerprints in the right manner without necessarily requiring the services of a professional. It can also be integrated with a Fake Finger Detection Solution to improve security through reducing spoofing methods of gaining access into the system.

The CS500F Scanner is designed with a memory of 128MB and a speed of 0-100 scans per second guaranteeing efficiency, precision and durability. This makes it easy to handle; therefore, it can be used in various biometric applications such as criminal identification as well as eID document issuing.

BMT20 Dual Iris Scanner

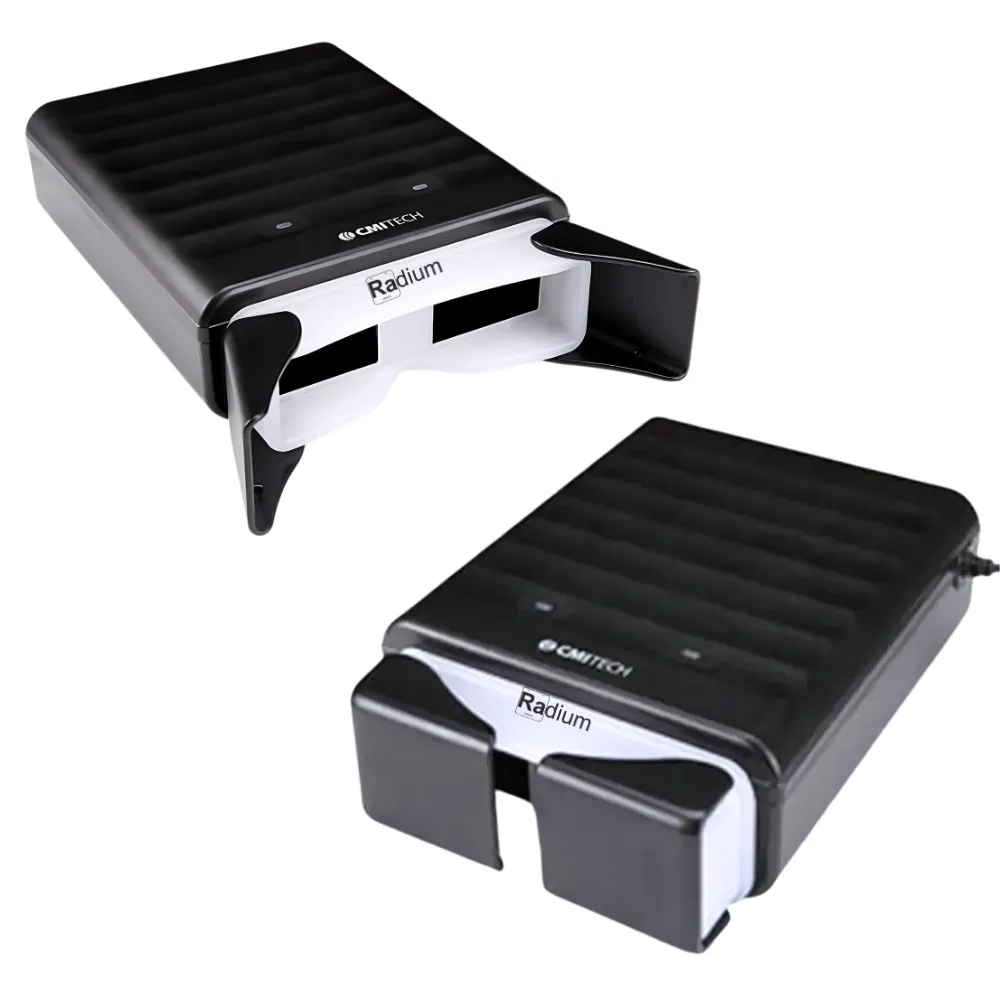

Accompanying the CS500F is the BMT20 Dual Iris Scanner, a binocular type scanner exclusively for dual iris capture. This scanner is particularly useful for the Aadhaar biometric applications, which boasts a very high level of accuracy in terms of the recognition of iris and also very easy to use. The BMT20 also has integrated positioning feedback LED lights that assist users to position their eyes appropriately for scanning, and thus is useful to people of all ages, including children.

The BMT20 can obtain clear and fast iris images, which means that the inequality identification methods they use are both accurate and smooth. It can therefore seamlessly be integrated into virtually any enrollment operations scenario, whether as a massive program or a relatively small one.

When used together, the CS500F Fingerprint Scanner & the BMT20 Dual Iris Scanner make up for the best biometric kit ideal for today’s complex identification solutions. This is the best package for governments, banks and financial institutions, health care organizations and security companies who wish to upgrade their biometric enrolment system.

The CS500F Scanner and BMT20 Dual Iris Scanner UID AADHAAR Biometric Kit is a perfect combination of technology and simplicity to provide the best solution for secure identity management to organizations in enhancing their identity verification solution. If you wish to have improved access control or better enrolment processes then this biometric package offers all that you would require in the current security context.

You can purchase the CS500F Scanner and BMT20 Dual Iris Scanner UID AADHAAR Biometric Kit at competitive prices from Radium Box. If you have any question, or need help with the installation or any of the functionality available with the Radium Box, kindly get in touch with us on +91 84343 84343 or email us at [email protected]. Our team of customer support is always ready to help you leverage what your biometric solutions offer you.

Specification

• Product

  • Brand : Thales

  • Models : CS500F,BMT20 Dual

  • Warranty : 1 Year

• Type of Device

  • Biometric fingerprint

  • Fingerprint & IRIS

  • Multi-finger Scanner

  • Binoculars-type dual iris capture system

• Power Source

  • USB BUS Power

• Operating System

  • Windows, Android,

• Dimensions (W x D x H)

  • 151 x 148 x 102 mm (5.9 x 5.8 x 4.0 inches)

  • 219 x 161 x 58 mm (8.6 x 6.3 x 2.3 inches)

• Weight

  • 1.5 kg (3.3 lbs.)

  • 680 g (1.5 lbs)

• Sensor Type

  • Optical

  • Binocular-type iris capture

• Certifications

  • FBI IAFIS Appendix F, Mobile ID Appendix F, ISO/IEC FCD 19794-4, ANSI/NIST-ITL 1-2000/2007

  • CE, FCC, USB-IF, India STQC, RoHS, WHQL

• LED Indicators

  • 12 tri-color LEDs

  • Dual LED (IR illumination), Internal LED

• Connectivity Technology

  • USB 3.0

  • USB 2.0 High Speed (Data & Power supply)

• Image Capture Area (Platen)

  • 81 x 76 mm (3.2" x 3.0")

  • 1600 x 1500 pixels (SLAP) - 800 x 800 pixels

• Resolution

  • 500 dpi

  • 18.4 to 20 pixels/mm

• Humidity & Operating Temperature

  • 0°C ~ +50°C (32°F ~ 122°F)

  • 10% ~ 90% (non-condensing)

Feature

• High Speed Acquisition: The CS500F scanner uses USB 3.0 technology to quickly capture fingerprints, while the BMT20 ensures fast and accurate iris detection.

• Comprehensive Biometric Data Capture: Together, these devices capture fingerprint and iris data to provide a complete biometric solution. Improving the identity verification process.

• Intuitive Interface: Both devices feature an intuitive user interface, with the CS500F providing visual feedback via tri-color LEDs and the BMT20 guiding users through status indicators.

• Robust security features: The CS500F scanner incorporates a fake fingerprint recognition solution to prevent unauthorized access. While the BMT20's design reduces counterfeiting efforts during iris capture.

• Wide range of applications: This set is suitable for various sectors. including government agencies financial institution health care provider and security organizations wanting to implement secure biometric registration and access control systems.

• Compact Design: Both devices have a compact design and are easy to integrate into existing systems. This makes it suitable for desktop use or mobile installation.

• Durability and Reliability: With certifications such as FBI App-F and UIDAI compliance, both scanners are built to withstand the rigors of use in demanding environments.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
