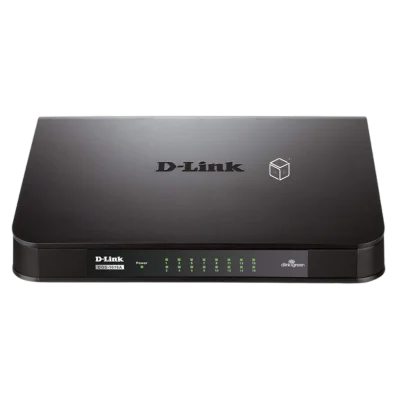

D-Link DGS-1016 16-Port Gigabit Unmanaged Switch, Black

D-Link desktop switch

The D-Link DGS-1016 16-Port Gigabit Unmanaged Switch is a high-performance networking solution targeted at small office, home office (SOHO), small-to-medium business (SMB) deployments. It provides Gigabit Ethernet connectivity to all ports, providing high speed, rock-steady and high throughput network for data-heavy applications. Whatever the application, to update an existing network, to enhance server link speeds or set up a backbone for high speed data transfer, this switch is right for the task.

The DGS-1016D switch offers 16 high-speed Gigabit Ethernet interface ports to enable high-speed data transmission with support for standard Ethernet (10M bps), Fast Ethernet (100M bps), and Gigabit Ethernet (1000M bps). It is the best choice to link several devices (i.e., computers, printers, IP cameras, NAS devices, VoIP phones) from one device. The auto-negotiation function guarantees that each connected device is provided with the highest data rate switching speed for best performance.

With the use of flow control technology, the switch eliminates the data packet drop, providing continuous operation even under heavy traffic load. It also includes Storm Control and Port Isolation functionalities which are able to prevent network breakouts due to malicious software, malware or excessive broadcast traffic. These intelligent functions improve network reliability and efficiency as a whole.

The D-Link DGS-1016D is equipped with Green Ethernet technology that delivers substantial power reduction without sacrificing performance. The transition, by taking advantage of these green technologies, achieves reduced energy consumption and a longer product lifespane, but without any degradation of the network performance.

With a robust metal shell, the DGS-1016D has increased robustness and better heat vents. Its fanless configuration allows the product to be virtually silent, thus providing a highly appropriate solution for office or retail environment, as an example, or any place with high sensibility to noise. The small size and low weight make it possible to place it on the desk, wall or rack and it can adapt to many environments.

Since as an unmanaged switch, the DGS-1016D needs no configuration, just plug it in and begin to use it. The 3-pin front panel DIP switch provides real-time switching capabilities for features, including Energy-Efficient Ethernet (EEE), Flow Control and Port Isolation. Using cable diagnostics troubleshooting, problems  solutions can be identified and resolved easily by the users.

The D-Link DGS-1016 16-Port Gigabit Unmanaged Switch is a cost-effective, stable and power-efficient networking solution for businesses and individuals who require to connect to the network at a high-speed with low configuration needs. With its robust build quality, smart energy-saving features, and advanced network management capabilities, this switch is a perfect addition to any modern network infrastructure.

Purchase the D-Link DGS-1016D right now at Radium Box at the best price, with free shipping and COD availability. For customer support, please call us at +91-8434384343 or send us an email at [email protected]. Our team is ready to assist you!

Specification

• Product

• Brand: D-Link

• Model: DGS-1016

• Type: Switch

• Warranty: 3 Years from the manufacturer

• General

• Complies with RoHS 6: Yes

• Control: 802.3x Flow Control

• Switching Capacity: 32 Gbps

• Head-of-Line (HOL) Blocking Prevention: Yes

• Store & Forwarding: Yes

• Interfaces & Performance

• Ports: 16 × 1000Base-T (Gigabit Ethernet) with Auto MDI/MDIX

• Jumbo Frame Support: 10,000 Bytes

• MAC Address Table Size: 8,192 entries

• Packet Buffer Size: 512 KB

• Maximum Forwarding Rate: 23.81 Mpps

• Energy Efficiency & Power

• Energy-Efficient Ethernet (EEE): Yes

• Power Input: AC 100-240V

• Maximum Power Consumption: 10.07W

• Standby Power Consumption: 3.02W

• Maximum Heat Dissipation: 34.3 BTU/h

• Power Saving Features:

• By Cable Length

• By Link Status

• Protection & Reliability

• Surge/Lightning Protection

• AC Power Inlet: 1kV

• All Ethernet Ports: 1kV

• Discharge Protection

• Air Discharge: 8kV

• Contact Discharge: 4kV

• MTBF (Mean Time Between Failures): 1,882,372 hours

• Environmental Conditions

• Operating Temperature: 0°C ~ 40°C

• Storage Temperature: -10°C ~ 70°C

• Operating Humidity: 0% - 95% RH

• Storage Humidity: 0% - 95% RH

• Physical Specifications

• Dimensions: 280 × 125 × 44 mm

• Weight: 1.023 kg

• Cooling: Fanless, silent operation

Key Features

• Small and Medium Businesses (SMBs) – Efficiently manage high-speed connections for multiple employees.
• Home Offices (SOHOs) – Improve network performance for remote work and data sharing.

• Retail & Surveillance Systems – Connect IP cameras, point-of-sale (POS) systems, and other critical devices.

• Educational Institutions – Enable seamless connectivity for e-learning and collaborative environments

• Link Status Detection – Automatically powers down ports when not in use.

• Energy-Efficient Ethernet (EEE) – Dynamically adjusts power usage based on network activity, reducing unnecessary energy consumption.

• RoHS Compliance & Recyclable Packaging – Designed with environmentally friendly materials to minimize waste and harmful substances.

Note: It is recommended to verify all the characteristics and costs before making any purchase.
