Description
Capacity
- 200,000 Card users / 1,000,000 transaction logs
Bluetooth Support
- Compatible with Mobile Card solution
VoIP (Voice over IP)
- Voice call function Built-inCamera
- User image acquisition for every transaction with storage in server
USB (OTG) Memory Slot
- Easy data transfer using USB memory stick
- F/W update
Multifactor Authentication
- RF card, mobile card, password

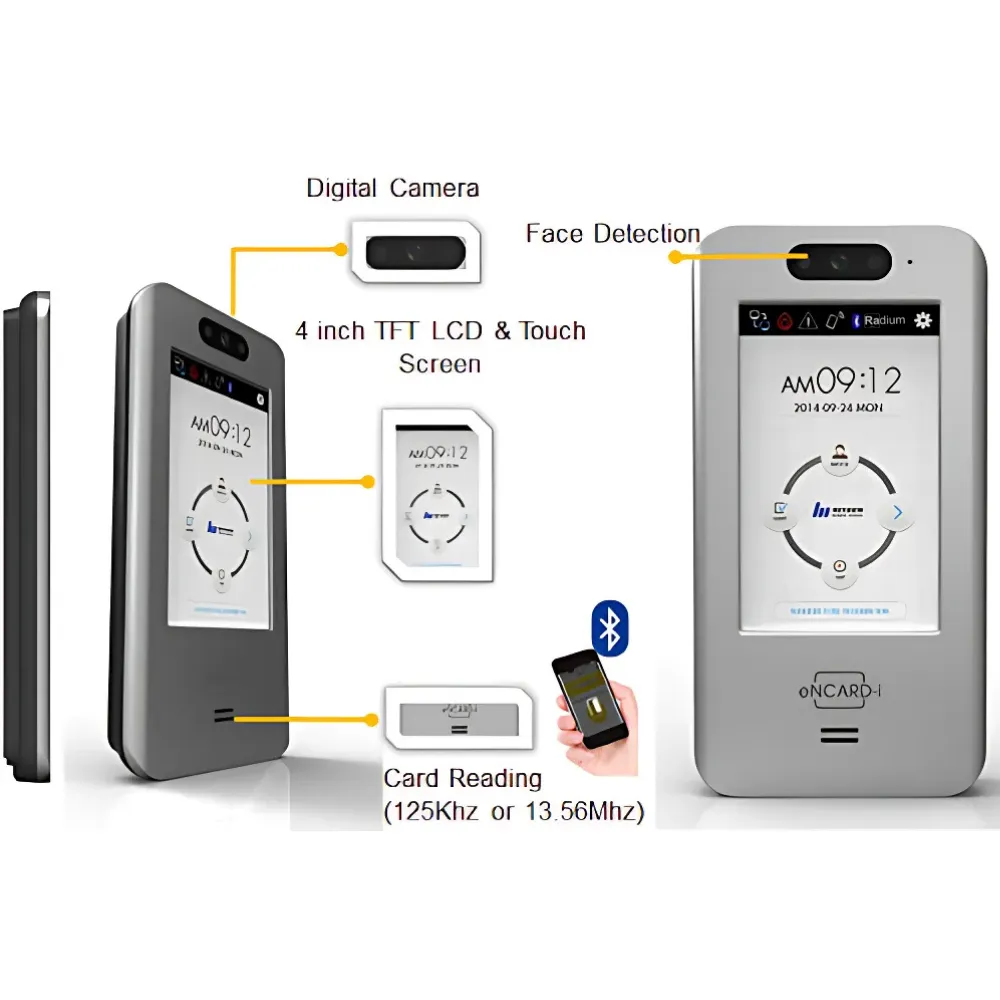

4 inch Touch Screen
Card Option
- 125kHz EM & HID, 13.56MHz Mifare & Felica
Face Detection
- User Face should be detected for Authentication process with any mode of Card, password or mobile card.
- Daylight sensor with flash for Face detection in dark condition
CPU | 1Ghz Single Core (Cortex-A9) |
Memory | 256MB 8GB NAND Flash |
Authentication Type | Card + Password + Mobile Key |
Card Capacity | 200,000 |
Log Capacity | 1,000,000 / 20,000 image logs 12,500 user pictures |
LCD | 4 Innch Touch Screen |
Supported Card | High frequency Card (13.56Mhz) -Mifare Low frequency Card (125khz) -EM, HID Prox Felica Card (ISO/IEC18092) |
Communication | Blutooth (BLE), TCP/IP, Wiegand, RS-485, RS-232, WiFi(Option) |
USB OTG (On-The-Go) | O |
Power | DC 12V & 24V |
Dimension | 80(W) X 153(H) X 18.2(D) mm |
