EXIT SWITCH -Access control device

EXIT SWITCH - MP1

EXIT SWITCH - MP1 access control device has a variety of features that helps to increase functionality and security in any setting, and It works in one mode ON-OFF which makes it convenient to use for security personnel and different consumers. Being a branded product this push button terminal is designed with the food PVC plastic material that is long lasting and more capable of withstanding increased traffic demand.

The EXIT SWITCH is built to be highly resistant to external conditions as it has an International Protection Rating of IP54; thus, is protected from both dust and water and can be installed both indoors and outdoors. It has a strong built to enable it to perform in poor test environments and is not easily affected by fluctuations in the environment. The switch is also proposed to work in temperature conditions from -10 to +55 degrees Celsius and relative humidity up to 95% non-condensing.

Measuring 76 mm (L) x 23 mm (W) x 14 mm (H), the EXIT SWITCH is easy to install into existing access control systems and will not occupy a lot of space. It weighs only 0.02 kG but has a long lasting mechanical ability, for steady and efficient functioning. The device has a maximum current of 3A at 36V DC, thus, the device can operate with different locking systems, such as deadbolts, electromagnetic lock, door strike, and automatic door.

Concerning connectivity solution, the EXIT SWITCH can be integrated into contemporary access control systems with Wi-Fi. It also adds the option for remote administration and monitoring of the general security solution. On the output contact configuration there always available options for Normally Open (NO), Normally Closed (NC), and the Common (COM) switch for ease of installation. The mechanical life of the EXIT SWITCH has also been confirmed to last up to 100000 cycles therefore viable even when used frequently. This makes it suitable for use in activities for instance corporate buildings, schools, and industrial areas where dependability is critical.

The EXIT SWITCH is also provided with added utility with easy uses. It includes only a push button at the center of the flooder, and it is easy to use. The switch comes in an aesthetically appealing white color to enable visibility while at the same time easily fit in most building designs. the EXIT SWITCH – Access Control Device MP1 can be described as general-purpose and highly reliable in terms of its tasks in the access control system. For this reason, this anti-tampering solution is well suited for improving security in diverse applications owing to its well-built construction, sophisticated features, and user-friendliness. Both in schools, business and organization settings and industrial environments this exit switch serves a useful remedy to control entries and exits.

For more details or you want to BUY EXIT SWITCH – ACCESS CONTROL DEVICE MP1 at an affordable price, kindly visit our website Radium Box or call us at +91-8434384343, email: [email protected]. If you have any questions that you’d like to ask about this item or other access control products, do not hesitate to contact our customer support service.

Specification

• Product

• Brand: Morx

• Name: EXIT SWITCH -Access control device

• Model: MP1

• Type: EXIT SWITCH

• Warranty: 1 Year

• Key Technical Specifications

• Switch Type: Flush Push Button

• Color: White

• Operation Mode: ON-OFF

• Terminal Type: Push Button

• Actuator Type: Push Button

• International Protection Rating: IP54

• Controller Type: Push Button

• Application: Door, Gate, Exit, Automation Control.

• Power & Connecter

• Connectivity Protocol: Wi-Fi

• Power/Voltage Rating: DC 36V / 3A

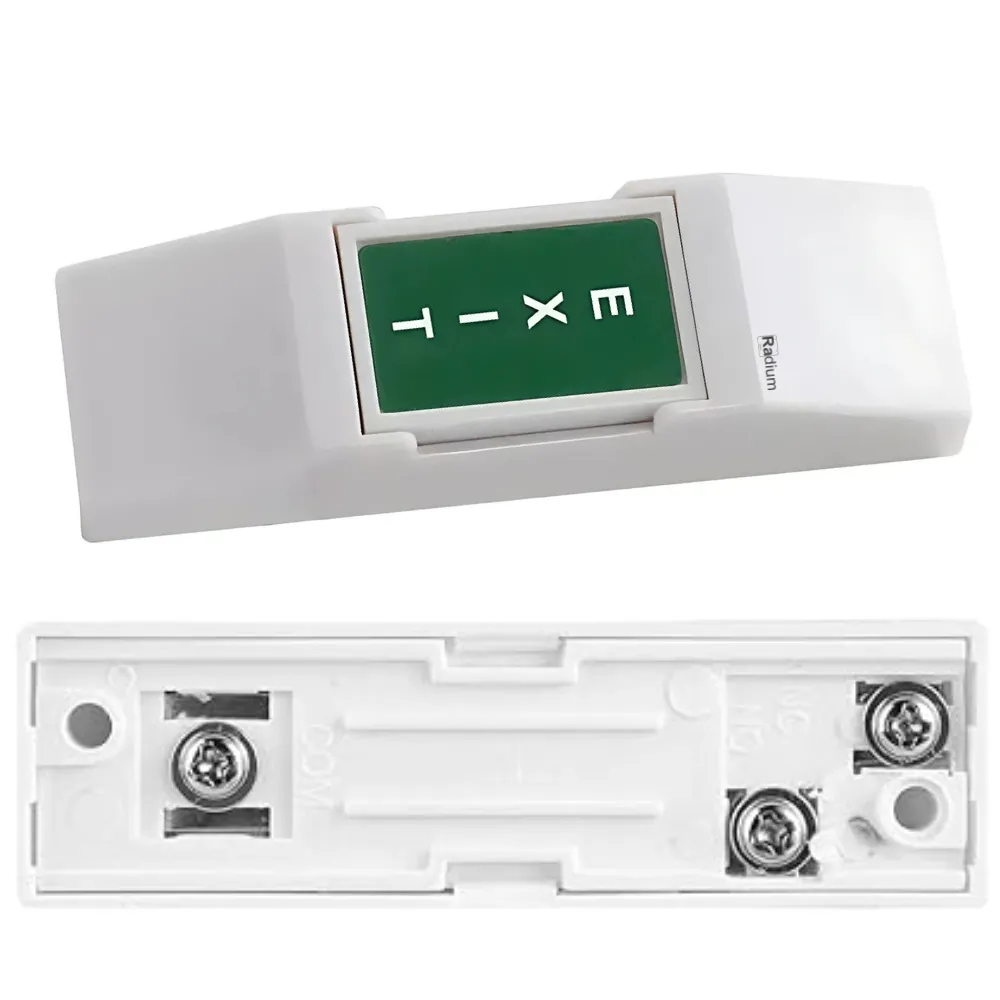

• Output Contact Configuration: Normally Open (NO), Normally Closed (NC), Common (COM)

• Physical Specifications

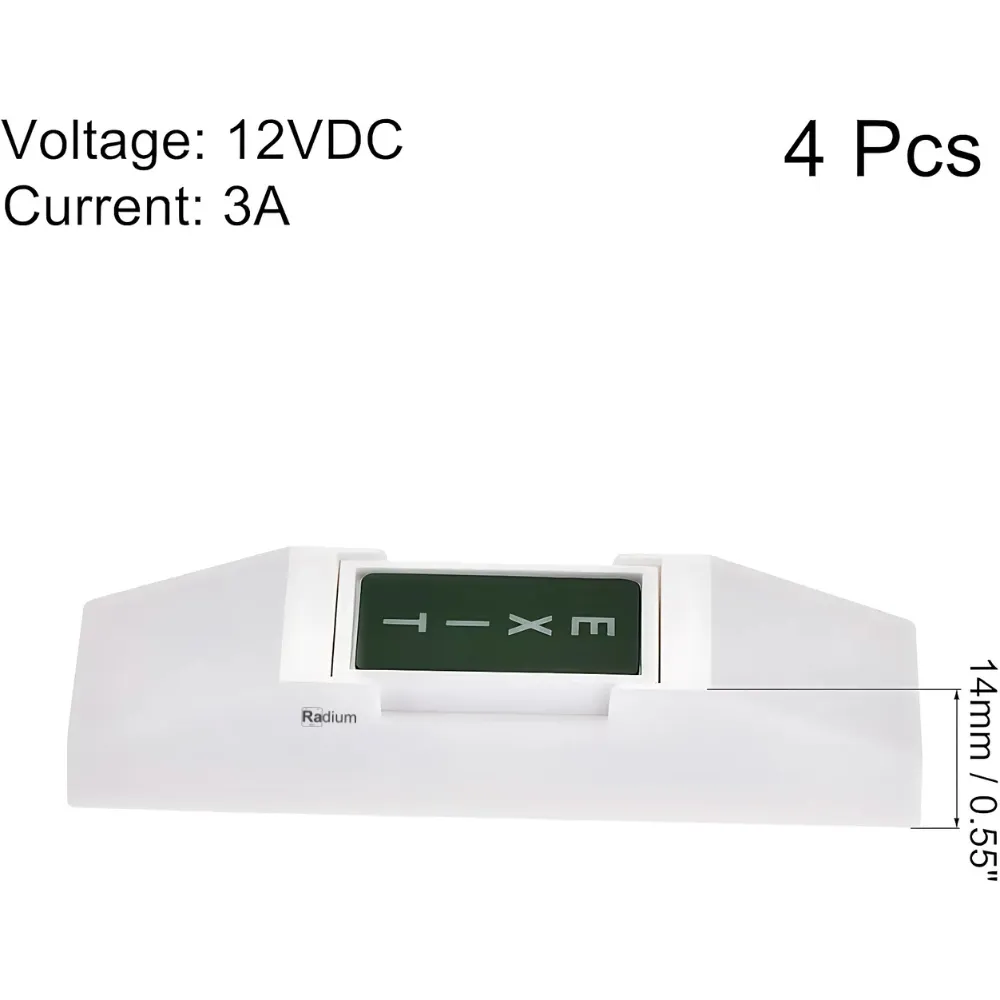

• Dimensions: 76 mm (L) x 23 mm (W) x 14 mm (H)

• Plate Size: ~7.6(L) x 2.3(W) x 1.4(H)cm

• Standard structure: Plastic panel and button

• Panel Material: Plastic Panel, Fireproof Material

• Weight: 17.2g

• Performance Metrics

• Mechanical Life: Tested for 100,000 cycles

• Environmental Specifications

• Operating Temperature Range: -10°C to 55°C (14°F to 131°F)

• Operating Humidity Range: 0% to 95% (non-condensing)

Key Features

• Push Button Switch Panel for Access Control of an Exit Door Strike.
• The Access Control Exit Push is used to pull a door or activate an electric strike from the receptionists desk or mount inside next to emergency exits.

• The easy touch Door Exit Push Button has normally open (NO) operation.

• Door Strike Exit Button works with any access control/locking system.

• Includes two mounting screws.

Note: Before using the device, please check the app specifications to ensure compatibility.
