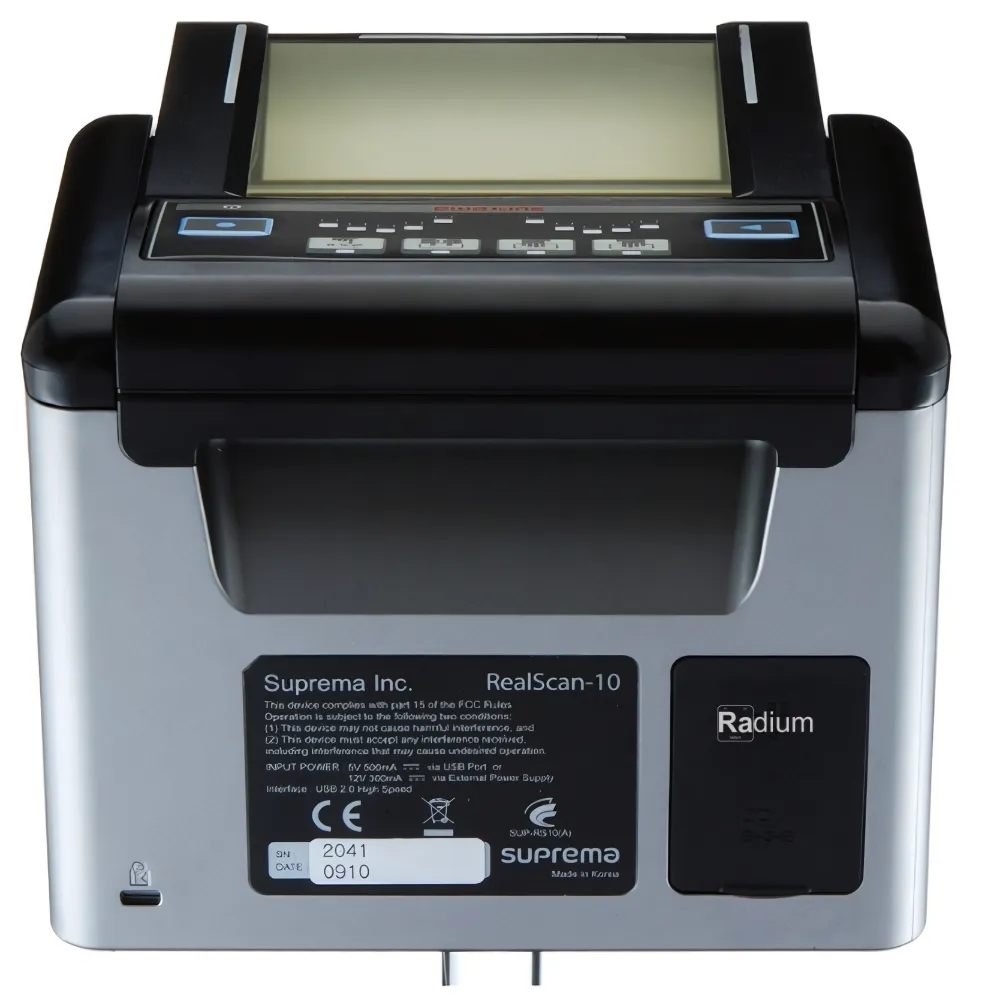

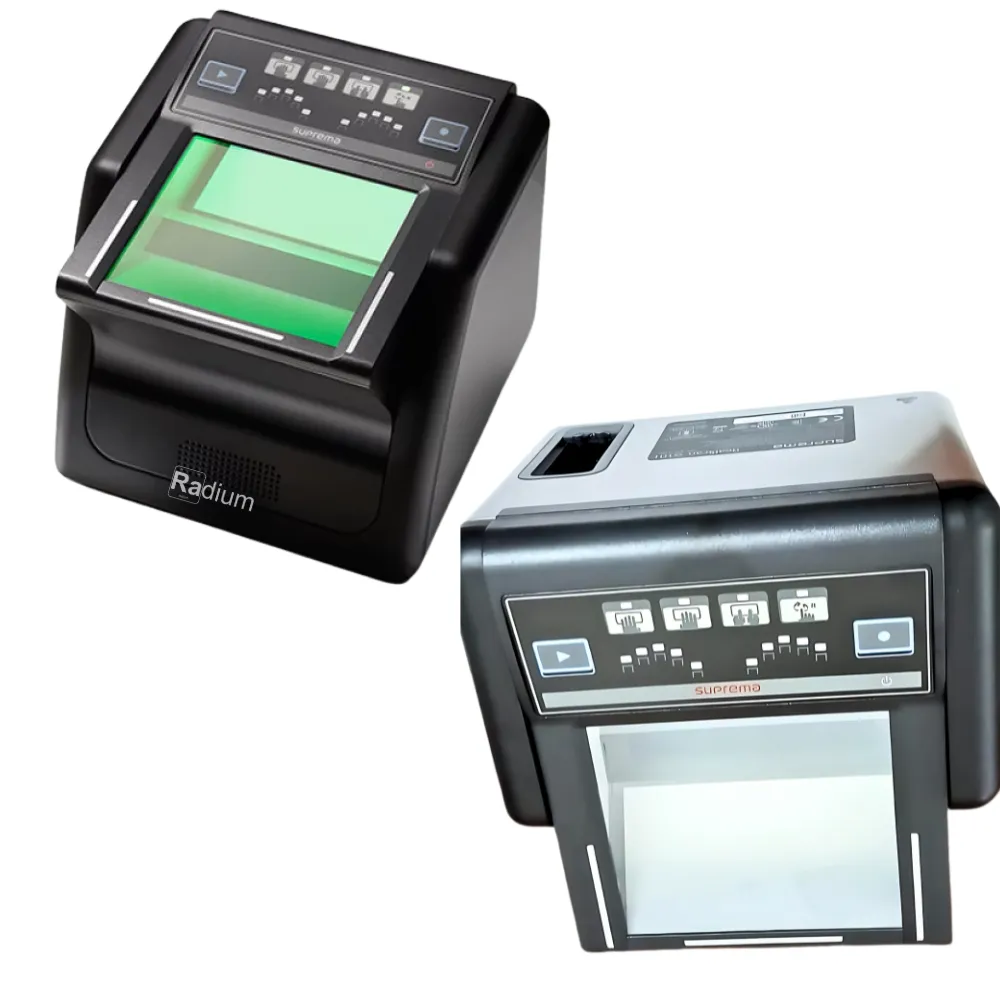

Suprema RealScan-G10 Slap Fingerprint Scanner for Aadhaar

Suprema RealScan-G10 Slap Fingerprint Scanner for Aadhaar

The Suprema RealScan-G10 is a compact, high-performance fingerprint reader designed to generate forensic-quality images. This device is approved by the FBI and STQC, which  can capture both flat and rolled fingerprints including ten-prints, by active lightning detection rejecting ambient light for quality prints only. These features make it suitable for applications requiring the most stringent security and precision.

The Suprema RealScan-G10 is easily integrated, with a USB connection interface for the simplest setup process with no unnecessary cables.

It follows through the rigorous requirements of the leading organizations: FBI, IDENT, US-VISIT, and DHS, passing high reliability and accuracy standards. The FBI IAFIS Appendix F certification of the scanner guarantees that the equipment is either at or above interoperability standards. Users are assured of being in a better position to work seamlessly with the Integrated Automated Fingerprint Information System.

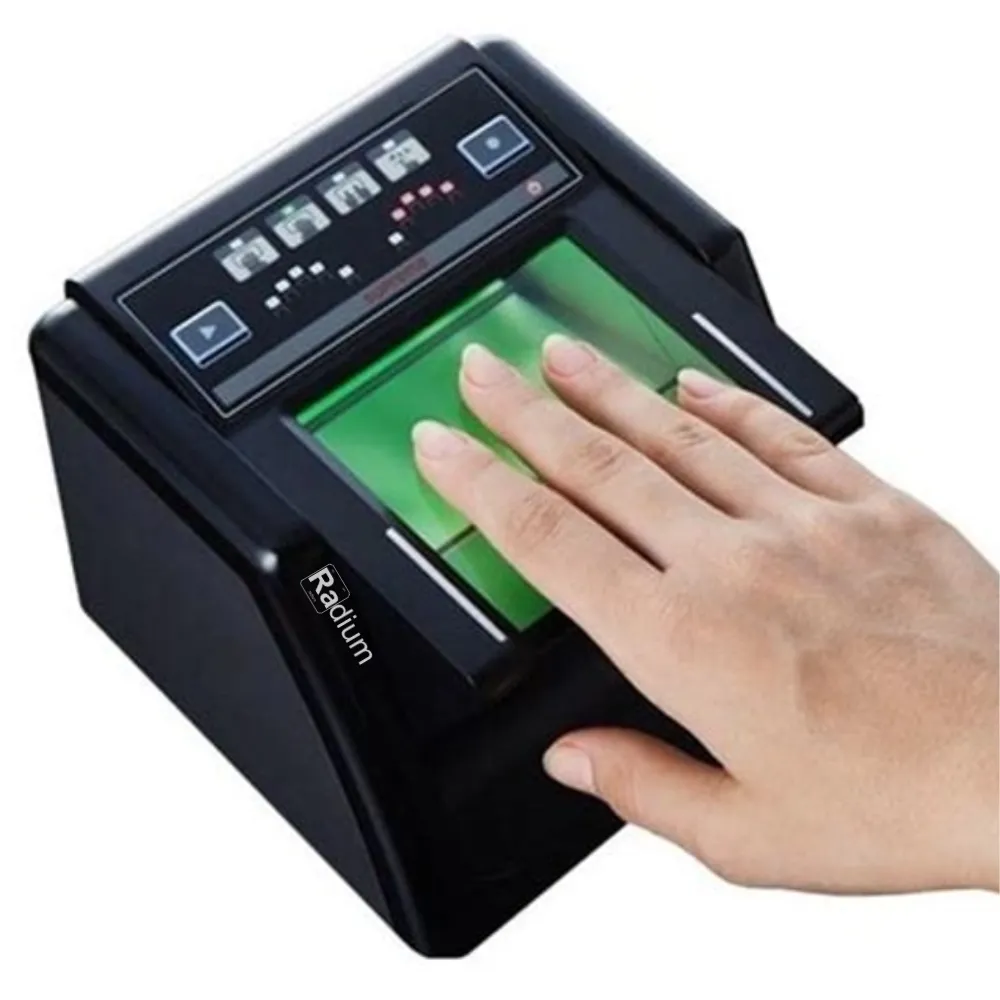

The Suprema RealScan-G10 scans plain ten-prints by four-finger slaps and captures dual-thumb, while supporting single flat and rolled fingerprint captures. This module is useful in various applications like voter registration, national ID cards, health insurance cards, automatic border control, mobile enrollment kits, e-passports, visas, criminal identification, SIM card registration, payment and POS systems, banking and ATM services, and self-service kiosks.

RealScan-G10 by using advanced Rolled Image Construction Technology along with a slip detection algorithm, it makes sure that the highest quality image is given out with more than 15 frames per second during roll capture for less error rate and better sequences of images. Further, this device is equipped with artificial intelligence-based Live Finger Detection technology. This is a very sophisticated system in distinguishing a real fingerprint from an artificial one, thus detecting those fake prints that are created from such materials as clay, rubber, silicon, glue, paper, and film.

This Suprema RealScan-G10 also features an extra-wide platen, 3.5 inches in size. The wider and more firm surface makes for easier captures upon placing hands. It makes the process easier to use and faster, too. Its solid and scratch-free design allows the platen to be very durable and resistant to many stains and damages.

On the durability front, the RealScan-G10 comes equipped with an IP65-rated structure that makes it dust and waterproof. The body is totally sealed from intrusive moisture, dust, and liquid for faultless operation in even the most hostile conditions. Such intricate sealing and protective engineering make it dependable in a host of challenging environments.

RadiumBox offers best pricing and bulk quantity discounts on the Suprema RealScan-G10. Customers can order online through the official website of Radiumbox.com .

For queries and support call us at +91 84343 84343 or email us at [email protected]. Radium Box ensures that you get the best deal and outstanding support for your Biometric Device needs.

Specification

Product

• Brand: Suprema

• Model Number: RealScan-G10

• RD Service: Required for operation

• Origin: India

• Manufactured by: Suprema Inc.

• OS Support & System Requirements

  • OS Support: Windows (8 and above, 32/64 bit), Linux (Ubuntu, Debian, Fedora, CentOS - 32/64 bit), Android (5.0 and above)

  • CPU: 400 MHz

• Images & Capture

  • Sensor Type: Optical

  • Resolution: 500 dpi

  • Grayscale: 256 gray

  • Image Size: Four Finger Slap: 1600 x 1500 pixels; Single Flats / Rolls 800 x 750 pixels

  • FBI / Image Certifications: FBI IAFIS Appendix F

  • Speed/API Interface: 4+4+2 in 15 seconds

• Weight & Dimensions

  • Product Weight: 1.8kgs (3.96lbs)

  • Dimension (W x L x H): 152 x 152 x 127 mm (5.9” x 5.9” x 5.0”)

  • Platen Size: 3.3" x 3.1" (84 x 79 mm)

  • Sensing Area: 81.28 x 76.2 mm

• Power & Connectors

  • Interface: USB 2.0 (data & power)

  • Connector Type: USB

  • Power Source: USB powered

• Conformance & Certifications

  • USB Certification: USB-IF compatible

  • USB-IF compatibility: Yes

  • FCC/CE/UKCA Conformance: Yes

  • Compliance/Certifications: FBI, WHQL, CE, FCC, UL, KCC, IP54

• Temperature & Humidity

  • Operating Temperature: 0°C to 50°C

  • Humidity: 10% to 90% (non-condensing)

• Surface & Systems

  • IP Rating: IP65

  • Speakers: Built-in

  • LED indicator: Yes

  • Surface Durability: Scratch-free surface

• Compliance & Regulations

  • FCC: Yes

Features:

• Certified by FBI and STQC the device meets all the standards for forensic-quality fingerprint scanning.

• Active lightning detection efficiently rejects ambient light for the capture of high-quality fingerprints.

• USB connectivity makes integration easier and usage of excess cables.

• It supports versatile capture capabilities such as flat, rolled, ten-prints, four-finger slaps, and dual-thumb captures.

• Improved rolled image construction applies a slip detection algorithm to ensure enhanced image quality.

• AI-based live finger detection differentiates a real from a fake fingerprint.

• The extra-wide platen features a 3.5-inch scratch-free surface for efficient capturing.

• Its rugged IP65 structure is dust and waterproof to ensure flawless operations in harsh conditions.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
