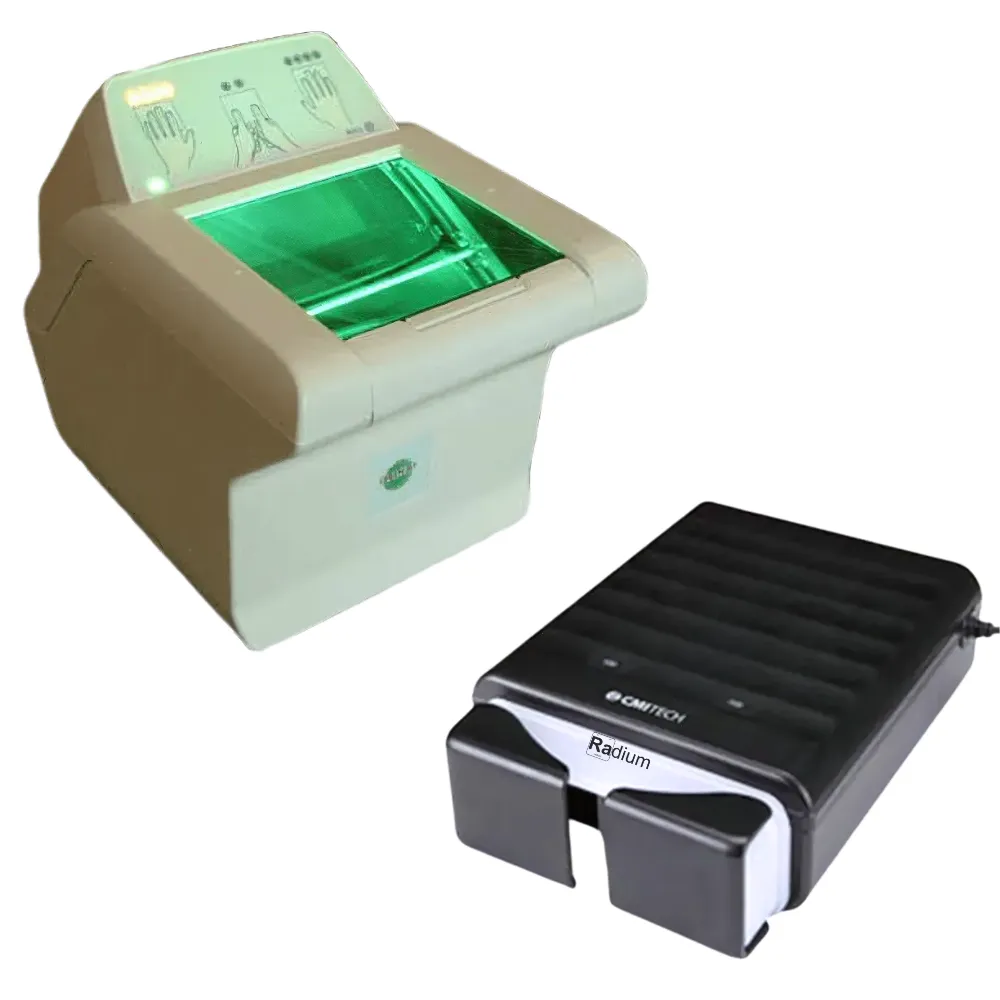

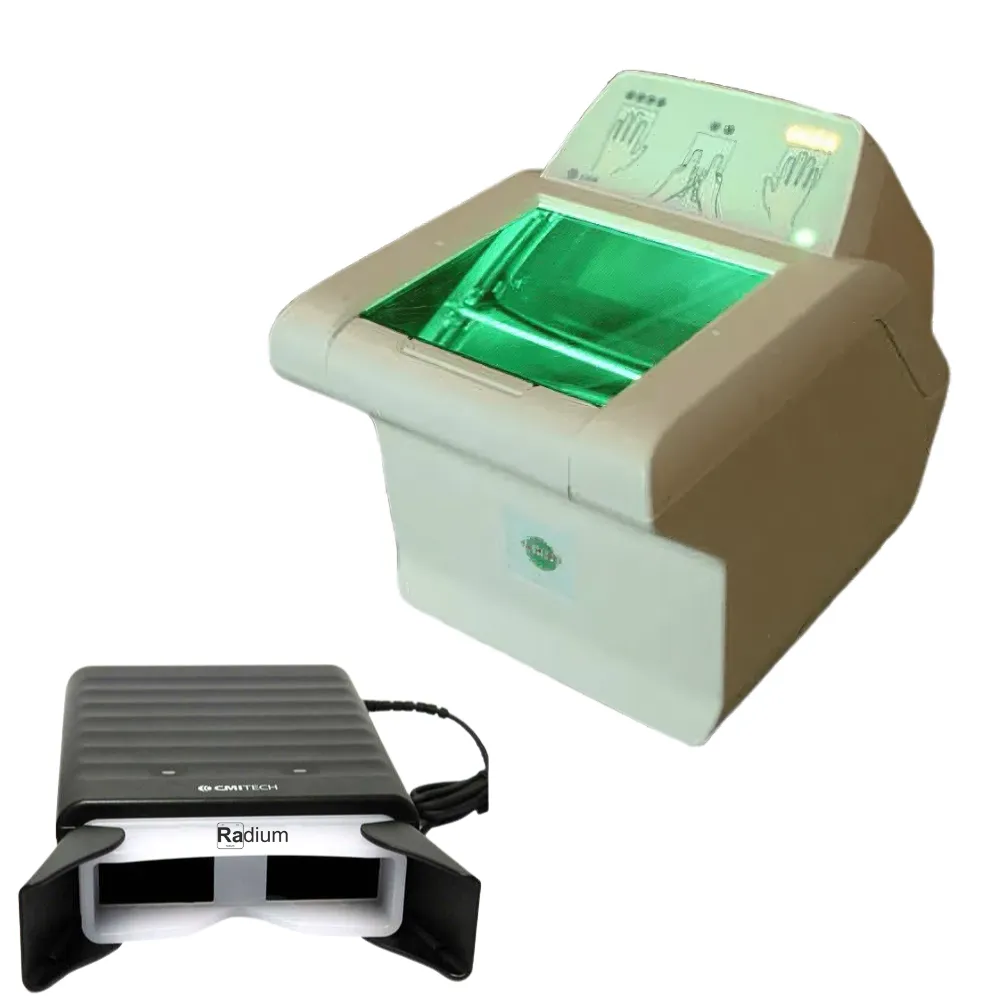

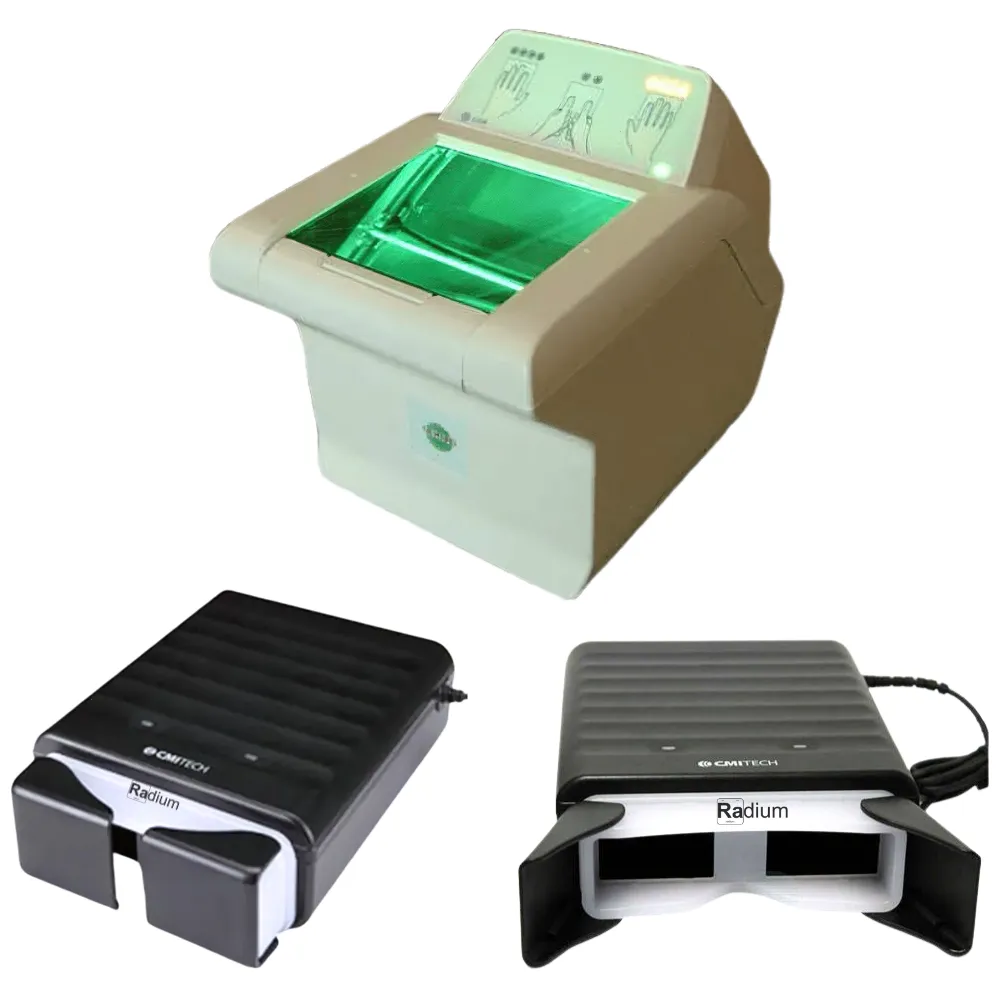

Green Bit Dactyscan 84c and BMT20 Dual Iris Scanner Biometric Kit

The Green Bit DactyScan 84c is a live fingerprint reader, with a large platen, which makes it possible to easily capture different types of fingerprints in a minute.

It captures 4-slap and 2-thumb fingerprints, allowing all 10 fingerprints using 4+4+2 method. Besides, it also captures single rolled and flat fingerprints, thus ensuring the collection of full fingerprint data.

The DactyScan84C is a user-friendly slap fingerprint scanner designed for various applications, including enrollment for UID-Aadhaar, National ID, National Population Register projects, and initiatives by the World Bank and UNESCO. Built to meet the demands of commercial, civil, and government sectors, it provides robust biometric capabilities for slap fingerprint scanning, tenprint scanning, and 4-4-2 fingerprint enrollment. The device is IP64 rated, ensuring protection against dust and water, which guarantees its durability in diverse environments. It is FBI-certified and conforms to FBI IAFIS IQS CJIS-RS-0010 (V7) Appendix F, as well as ANSI/NIST-ITL-1-2007, ANSI/NIST-ITL-1-2000, and ISO/IEC 19794-4 standards. As a FAP60 10-print Live Scan fingerprint capture device, the DactyScan84C is specifically designed for use in numerous government sectors and projects, including E-Passports, border crossing cards, E-ID employee credentials, and criminal identification.

This fingerprint reader has high efficiency and high reliability, fast image acquisition, making it suitable for both desktop and mobile applications. Its compact design and low weight enhance portability, while compatibility with integrated ID solutions, such as Government Identity Enrollment Stations and Portable Identity Kits, broadens its usability. This device comes with FBI IAFIS full-compliance rating, which makes its fingerprint data admissible for vetting and federal background screening within the USA. It is one of the fastest Live Scan 10-fingerprints, capturing speeds up to 27 frames per second for four-slaps and 25 frames per second for rolled prints. Additionally, with its ergonomic design and SDK architecture it is easy to integrate and makes a best choice for fingerprint readers of system integrators and solution providers. Its intuitive interface with 12 LED light indicators guide the user correctly in placing their fingerprints and the start, stop feature senses the finger placement and acquires a sample on its own, bringing more speed to this process by  enhancing workflow efficiency.

This FAP60 3.2" x 3.0" 10-prints and rolls LiveScan device is certified at 500 dpi to capture high-quality images. The DactyScan 84c integrates high-speed acquisition with advanced security and quality features in the collection of biometric data. For more security, fingerprint data could be loaded to a smart card—for instance, the M.O.S.T Card® or Credentsys Card®—which would be useful in multiple applications where multi-factor authentication and storage of data are required.

The DactyScan84C Slap Fingerprint Scanner has a very robust body structure that protects against moisture, dust, and liquid ingress with IP65 rating for flawless functioning even in the most challenging environments. It applies further advanced engineering protection and includes dynamic fingerprint image quality estimation during the scanning process, position correctness and slap completeness checks, as well as slide detection for flat prints. It is also equipped with an Anti-Fake "Lite" feature that can easily recognize real human finger patterns from various surfaces, such as gloves or tissue. With the slap fingerprint capture algorithm especially developed for it, the DactyScan84C is able to realize leading performance of more than 15 frames per second to ensure high-quality images and extremely low error rates in capture sequences.

The DactyScan84C offers an ergonomic design and easy-to-integrate SDK architecture, hence being an ideal choice for system integrators and solution providers. Besides being compatible with various platforms, this device allows smooth integration with a faster time-to-market for quick deployment and hassle-free operation. It has the largest platen in its class, which allows easy capturing with a solid, scratch-free surface, resistant to stains and damages, hence suitable for long-term use.

You can buy the Green Bit Dactyscan 84C at the best price in India from the Radium Box website. If you need any kind of support or have any queries, please do get in touch with us at +918434384343 or you can also email us on [email protected].

Specification

• Product

  • Brand: Thales

  • Model Number: DactyScan 84c

  • Manufactured by: Thales S.A. (formerly Green Bit S.p.A.)

• OS Support & System Requirements

  • OS Support: Windows, Linux (x86-64), Android

• Images & Capture

  • Sensor Type: Optical

  • Resolution: 500 ppi

  • Grayscale: 256 gray levels

  • Image Size: 3.2" x 3.0" (81 x 76 mm) for flat fingerprints; 1.6" x 1.5" for rolled fingerprints

  • FBI / Image Certifications: FBI IAFIS IQS CJIS-RS-0010 (V7) Appendix F, ANSI/NIST-ITL-1-2007, ISO/IEC 19794-4

  • Speed/API Interface: > 28 fps for slap fingerprints, > 25 fps for rolled fingerprints

  • Quality Scoring: NISTIR7151 quality check

• Weight & Dimensions

  • Product Weight: 1.4 kg (3.1 lbs)

  • Platen Size: 3.2" x 3.0" (81 x 76 mm)

  • Sensing Area: 3.2" x 3.0" for flat fingers, 1.6" x 1.5" for rolled fingers

  • Scanner Assembly Dimensions: 148 mm x 152 mm x 120 mm (5.8" x 6.0" x 4.8")

• Power & Connectors

  • Interface: USB 2.0 (data and power supply)

  • Connector Type: USB

  • Power Source: USB powered

• Conformance & Certifications

  • USB Certification: USB-IF compatible

  • USB-IF compatibility: Yes

  • FCC/CE/UKCA Conformance: Yes

  • Compliance/Certifications: CE, FCC, RoHS, KCC, ISO 60950-1

• Temperature & Humidity

  • Operating Temperature: 0°C to 50°C

  • Humidity: 10% to 90% (non-condensing)

  • Storage Temperature: -20°C to 50°C

• Surface & Systems

  • Ingress Protection / Water / Dust: IP54

  • Surface Durability: Scratch-resistant surface

• Compliance & Regulations

  • FCC: Yes

Key features:

• The software automatically acquires the image of the best quality upon the placement of a finger.

• Latent Prints Elimination: Latent prints from previous scans are eliminated.

• Halo Elimination: Halo effects of moist fingerprints are eliminated.

• Rolled Fingerprint Acquisition: Self-adaptive display in real-time to rolling speed and direction; composite image generation without stitches.

• Automatic Sequence Checking: Correctness of the scanning sequence is checked.

• Segmentation: Four-slap fingerprint image and two-thumb fingerprint images are segmented into a single flat image automatically.

• Image Quality Check: This is able to estimate the quality of fingerprint images dynamically at the time of scanning.

• Correct Position and Slap - Completeness Check: This technique checks correct finger placement and completeness of slaps.

• Slide Detection for Flat Prints: It detects the deformations caused by sliding during acquisition.

• Anti-Fake "Lite": The real fingerprints are differentiated from other materials.

• Standard Output Format: It's possible to create ANSI/NIST-ITL-1-2007 type 1, 2, 4 and 14 records.

• Image Compression: It contains FBI-certified WSQ compression and other formats like JPEG and JPEG2000.

• Check Finger Allocation for the presence of finger core and basic/distal flows.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
