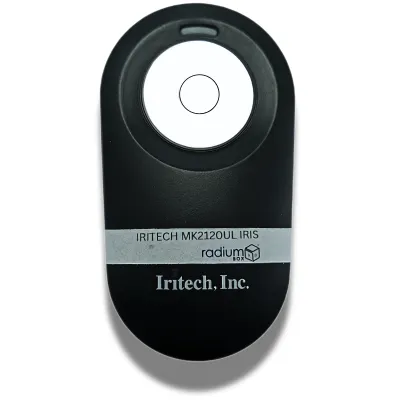

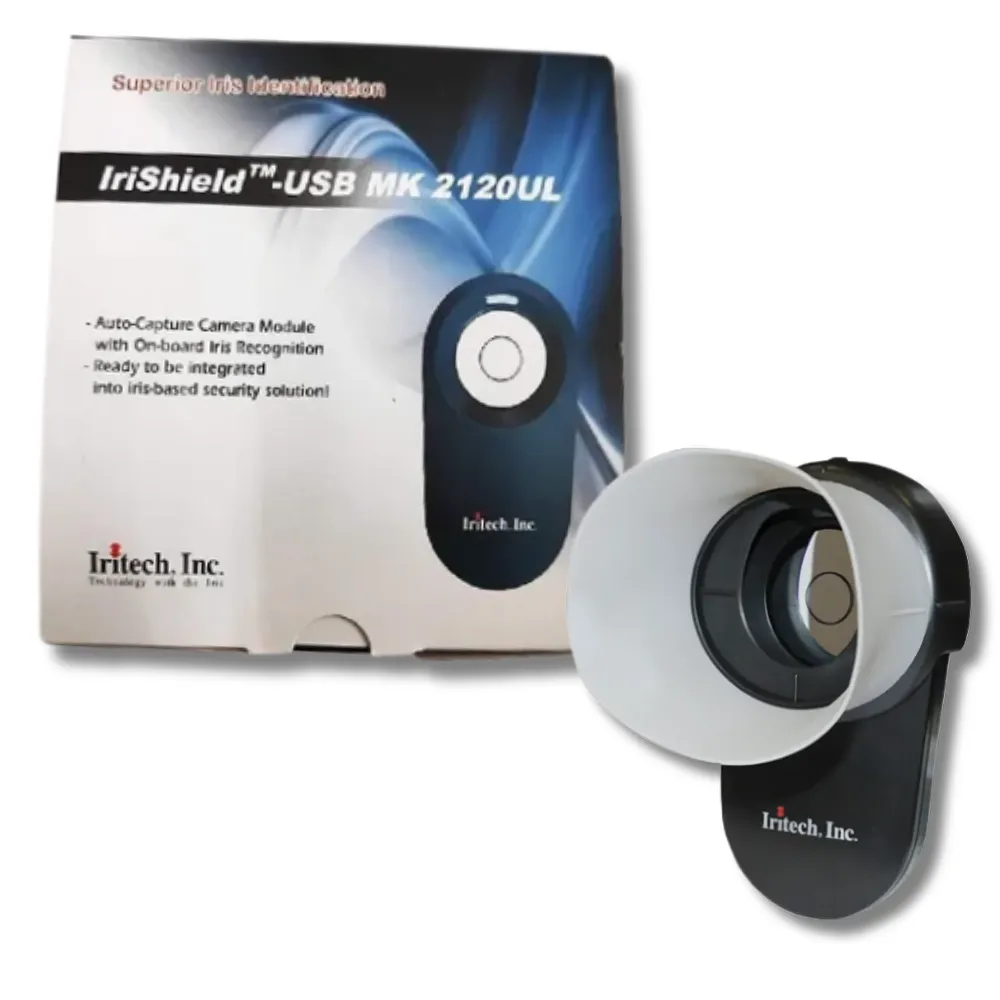

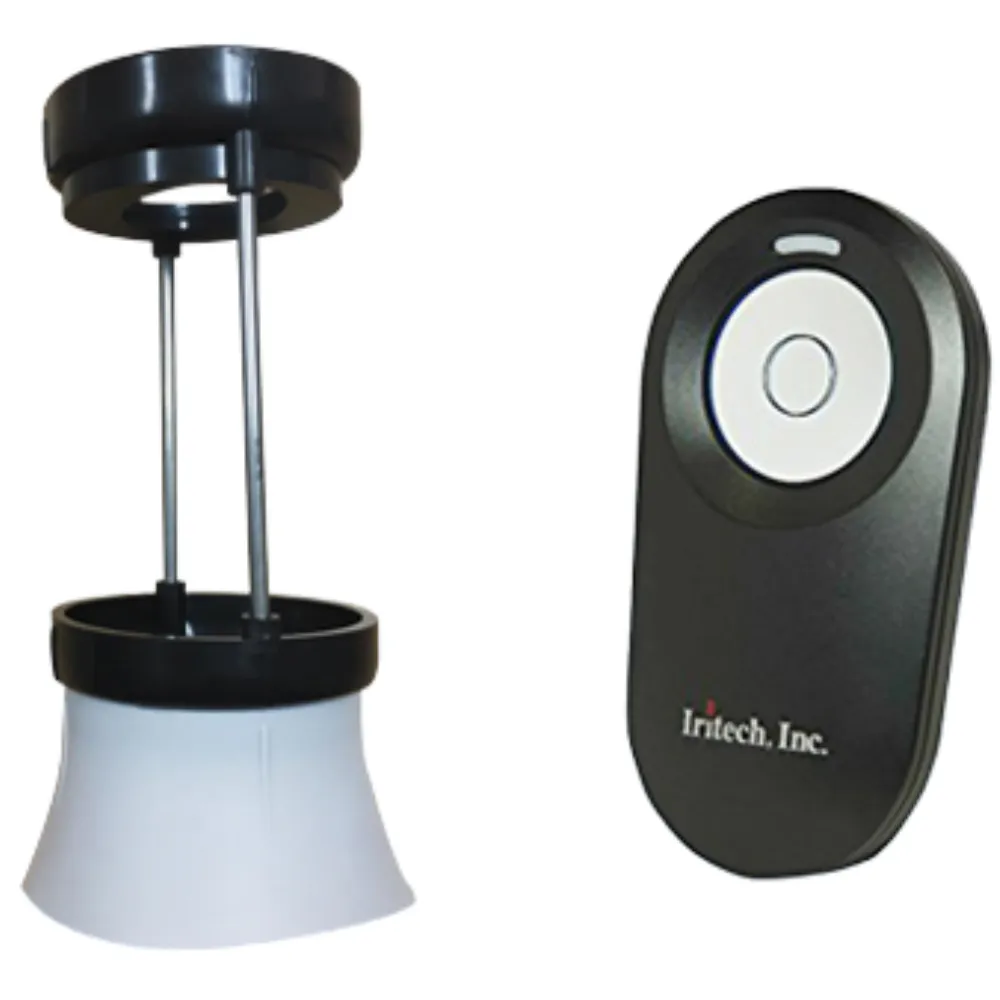

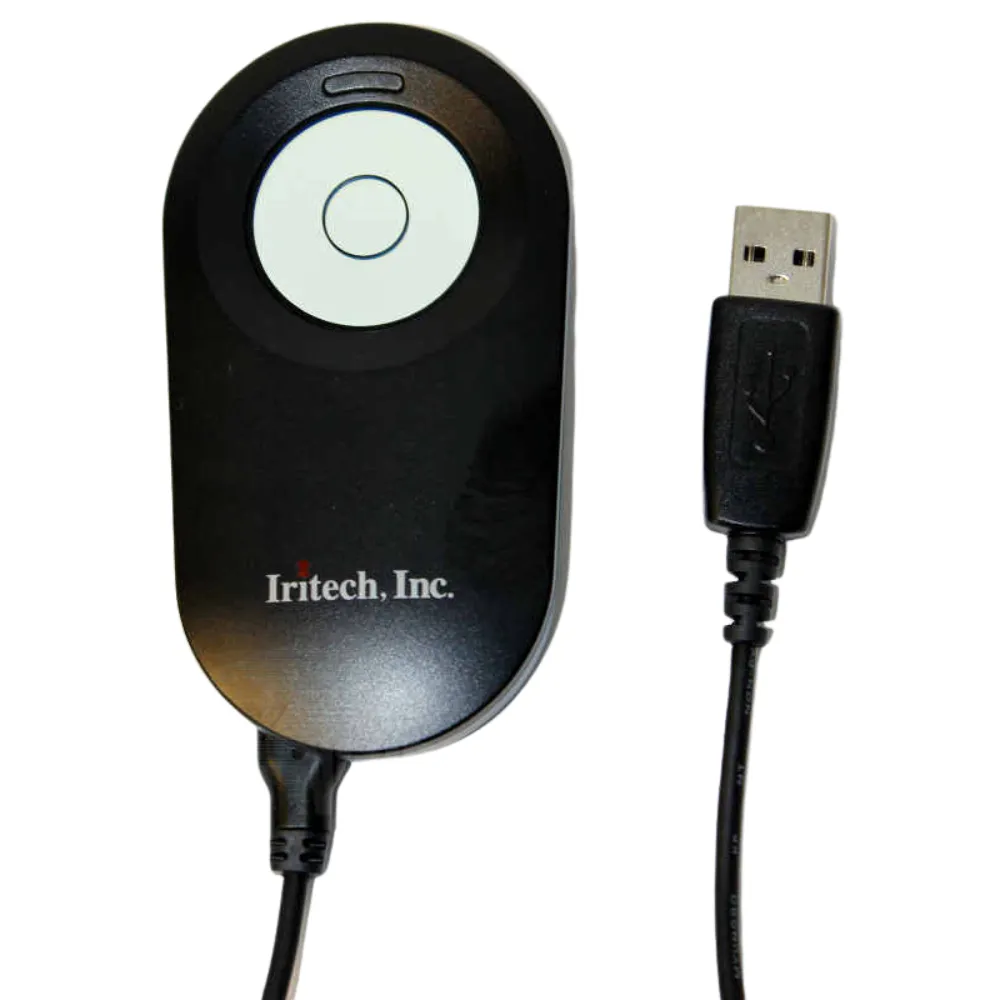

Iritech Irishield MK2120UL Single USB Iris Scanner for Aadhaar Authentication

IRIECH IriShield MK2120UL Single USB Iris Scanner uses top-level technology to secure and efficiently operate Aadhaar authentication. This ultra-compact, economic iris scanner embeds an excellent algorithm in iris image quality assessment to guarantee high accuracy in positive identification and reduce the false positive rate.

The IriShield MK2120UL is lightweight in design, supports power management functions, and is thus ideal to cater to a wider range of applications such as Ayushman Bharat, NTR Bharosa Pension Scheme, Jeevan Pramaan, and PMG-DISHA/DIGIPAY.

The IriShield MK2120UL by Iritech stands out for its complete data security due to its PKI-based security infrastructure. Each device securely generates an RSA key of 2048 bits independently on-board for encryption and digital signature, further securing sensitive information. Such a high level of security is augmented by the fact that the scanner follows standards set by RoHS, ISO, and IECEE.

Iritech provides a FREE Software Development Kit for developers who wish to utilize the IriShield MK2120UL with their projects. Using this software, it is pretty easy to integrate and customize for various programs; hence, it makes it easy to employ iris biometric solutions. Users can download the drivers called irishield-usb mk2120ul for Windows 10 operating system from the official site when the device should be in trouble-free working condition.

Considering the Iritech Irishield MK2120UL price, it is competitive to reach a wide circle of users. A capture distance of 15 cm makes using the scanner conveniently possible, which in compact size and lightweight is easily transportable and installable.

The IriShield USB MK2120UL operates based on a comprehensive manual given by Iritech-IRISHIELD MK2120UL-that provides detailed instructions for installation, configuration, and troubleshooting, therefore making the operation of a scanner quite easy and enabling users to make full use of such a scanner to extend its capacity for secure authentication.

You can buy the Iritech Irishield MK2120UL Single USB Iris Scanner for Aadhaar authentication at the best price in India from Radium Box. The MK2120UL features a compact and lightweight design, ensuring portability and ease of use. With its superior iris image quality assessment algorithm, it minimizes false positives while maximizing true positive identification rates.For support, installation and other related queries call us at our toll free number +918434384343 or email us at: [email protected] .Our customer service team is dedicated to help and provide you with immediate solutions.

Specification

• • Product

  • Brand: Iritech

  • Model Number: MK2120UL

  • Warranty: 1 year

  • Origin: South Korea

  • Manufactured by: Iritech, Inc.

• • OS Support & System Requirements

  • OS Support: Windows, Android

  • Key Functionalities: On-board Template Generation; 1:1 and 1:N Template Matching On-board PKI security functions

  • Memory: 64 MB NAND Flash Memory, 128 MB Mobile DDR SDRAM

• • Images & Capture

  • Sensor Type: Single iris sensor

  • Capture Mode: Auto capture with built-in quality check (using NIST IQCE and ISO 29794-6 quality metrics)

  • Capturing Distance: 15 cm (5.91 in)

  • Resolution: VGA

  • Illumination: Infrared LED

  • Grayscale: 8-bit grayscale

  • Image Size: 640 x 480 pixels

  • Image Formats: ISO 19794-6, full support of K1, K2, K3, and K7 Max

  • Scan type: Progressive, SNR: ≥ 37 dB

  • FBI / Image Certifications: STQC certified

  • Pixel Density Normally greater than 210 pixels across iris diameter

  • Quality Scoring: NIST-proven iris image quality assessment algorithm

• • Weight & Dimensions

  • Product Weight:

  • Dimensions: 51.2 mm x 92.6 mm x 15.1 mm

  • Spatial : ≥ 60% @ 4.0 Lp/mm, Pixel : ≥ 16 Pixels/mm

  •  Radiant Intensity: 0.2 mW/cm2 (700-900 nm)

• • Power & Connectors

  • Interface: USB 2.0

  • Connector Type: USB

  • Power Source: Single USB Bus Powered (DC + 5V ± 5%)

  • Max power consumption = 300 mA

• • Conformance & Certifications

  • USB Certification: Yes

  • FCC/CE/UKCA Conformance: FCC Class B

  • Equipment Safety: Eye safety standard (IEC 62471:2006-07)

  • Hazardous Material: RoHS compliant

  • Security: RSA (2048-bit) and AES (256-bit); X509 Certificate, PFX/PKCS#12 Certificate, RSA key pair generated on-board

• • Temperature & Humidity

  • Operating Temperature: 0°C to +50°C

  • Humidity: 10% to 90% (non-condensing)

  • Storage Temperature: -20°C to +60°C

• • Surface & Systems

  • Ingress Protection / Water / Dust: IP54 rated

• • Compliance & Regulations

  • FCC: Yes, FCC Class B

Features

1. Secure Data & Communication: Each IriShield device is equipped with a unique 2048-bit RSA key that is securely generated on-board for encryption and digital signatures.

2. Highly Accurate Iris Matching: Utilizes a NIST-proven iris matching algorithm known for its exceptional accuracy.

3. STQC Certified: Certified as an authentication device by the Standardization Testing and Quality Certification (STQC) authority.

4. Tamper-Proof Design: Built to prevent unauthorized access and tampering, ensuring the integrity of the device.

5. Versatile Interface Connections: Supports USB connections for easy integration with various systems.

6. Wide Operating System Compatibility: Compatible with a range of operating systems, including Android, Windows, WinCE, Linux, eLinux, Mac, and proprietary or non-OS environments.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
