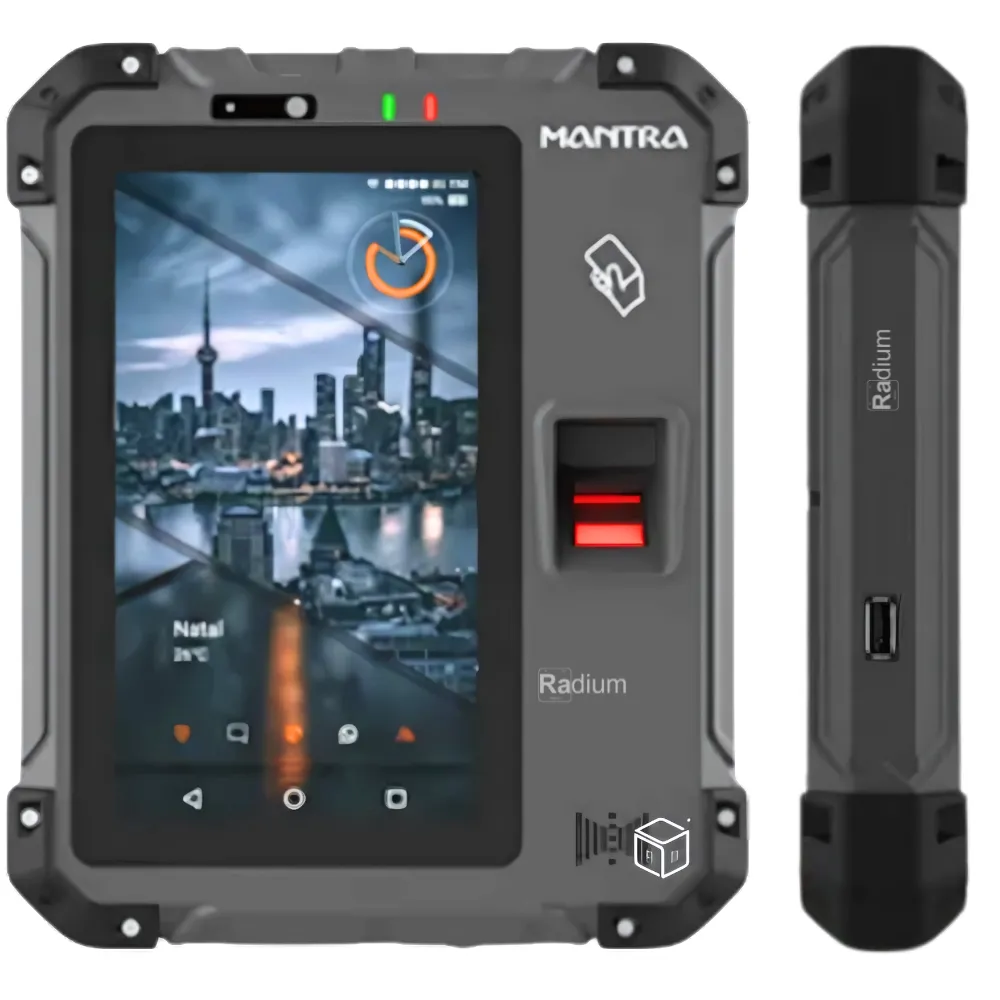

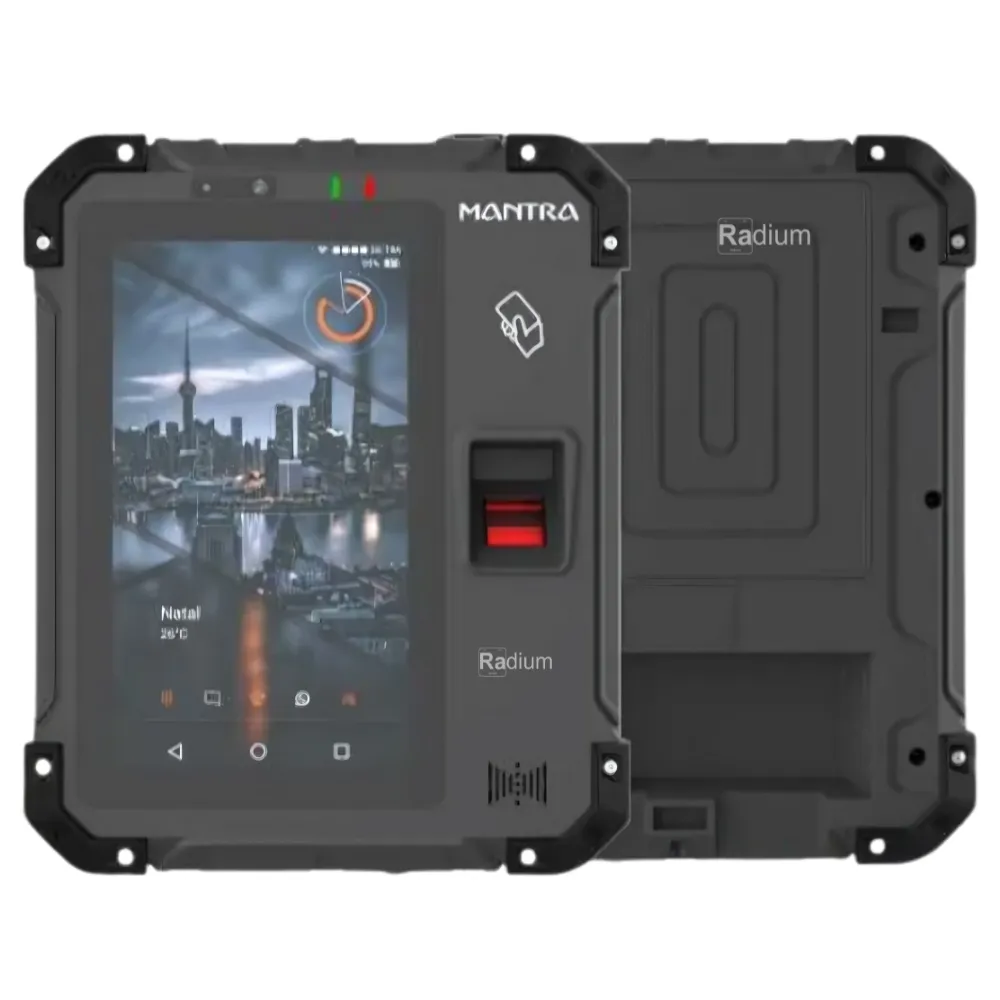

Mantra - L1 Aadhaar Enabled Biometric Attendance System

The Mantra L1 Aadhaar Enabled Biometric Attendance System, which includes the MBAS10 and MBAS20 models, is a modern wall-mounted device made for accurate individual identification in areas like eKYC, access control, and time tracking.

Built tough with advanced biometric technology, this system works well in many different environments.The Mantra L1 has a durable optical fingerprint sensor, FAP10, and a 7-inch touch screen that automatically detects fingers. This feature helps track daily attendance accurately, with reports sent directly to the Aadhaar server. The system runs on the newest Android software and has a 4000 mAh battery and a 5MP camera with flash, so it keeps working even when the power goes out.

The Aadhaar Enabled Biometric Attendance System, often called AEBAS, is a system created by the Indian government to help manage the time and attendance of government workers using biometric checks. The Mantra L1 is a reliable system that follows the rules and standards set by the Indian government and the National Informatics Centre (NIC).

The Mantra L1 Aadhaar Enabled Biometric Attendance System is a flexible device that can be used in many different situations. It's great for controlling access, making sure only authorized people can enter and leave. It also does a good job of tracking employee work hours and creating detailed reports. For managing a canteen, the Mantra L1 can keep track of employee meals and maintain a record of their consumption. In the banking and finance industry, it acts as a dependable method for confirming identities during secure transactions and verifying customers. The device is also very useful for managing resources and staff, helping companies make the best use of their employees and improve their operations. For managing and tracking school buses, the Mantra L1 can be used to keep track of student attendance and ensure their safety while traveling. Moreover, the system works well for processing insurance claims, where it can confirm the identities of claimants and prevent fraud. Lastly, the Mantra L1 is a great option for eKYC (electronic Know Your Customer) processes, allowing for quick and secure customer registration across different industries.

For a smooth experience, users can download the Mantra L1 Driver and Mantra RD Service from our site. These important parts work together with the Mantra L1 Device to give a great user experience. The Mantra L1 Device is priced well, so it's affordable for many people. The device is available on various platforms, including Flipkart, where you can find the best deals and offers.

You can buy the Mantra MBAS10 / 20 L1 at the best price in India from Radium Box, making sure you get the best deal. Remember to download the Mantra RD Service L1 and Mantra L1 Driver from here to keep everything working well and smoothly with your other systems. For support, installation and other related queries call us at our toll free number +918434384343 or email us at: [email protected] .Our customer service team is dedicated to helping you.

Specification

• • Product

  • Brand: Mantra

  • Model Number: MBAS20

  • Warranty: 1 year

  • Origin: India

  • Manufactured by: Mantra Softech

• • OS Support & System Requirements

  • OS Support: GMS Certified Android OS / Customized Android OS (optional)

  • CPU: ARM Cortex A53 Quad Core Processor

  • Memory: 8GB Flash + 1GB RAM

• • Fingerprint Sensor

  • Sensor Type: Optical fingerprint sensor

  • Fingerprint Image: 276 x 336 Pixels

  • Camera: 5MP Autofocus Front Camera with Flash LED

  • Grayscale: 256 (8-bit gray level)

  • Image Specs: 500 DPI +/- 2%,

  • FBI / Image Certifications: CE, FCC Part 158, RoHS, STQC, FBI PIV, EN/IEC 62368-1, IS 13252 (Part 1)

  • Speed/API Interface: Identification speed of less than 1 second

  • Quality Scoring: Low False Rejection Rate (FRR) < 0.01 and False Acceptance Rate (FAR) < 0.0001

• • Weight & Dimensions

  • Product Weight: Approximately 0.7Kg ( Depend Upon Configuration )

  • Dimensions: 222 x 181 x 40mm

• • Power & Connectors

  • Interface: Ethernet / LAN, GPRS, Bluetooth

  • 4G/3G/GPRS : 2G (900/1800), 3G (B1/B2/B5/B8) ,4G (B1/B3/B5/B7/B8/B38/B40/B41)

  • Wi-Fi: IEEE 802.11 b/g/n

  • Ethernet: 10/100 Mbps

  • SD Card: MicroSD Card (Supports up to 32GB)

  • Bluetooth: BLE 4.0

  • GPS: 16 Channel NMEA Compliant, AGPS Supported

  • SIM Socket: 1 x SIM Socket

  • DC Jack: 1 x DC Power Input

  • USB (optional) : USB2.0 Type A

  • Battery Backup: Li-Po 4000 mAH Rechargeable & Replaceable Battery (up to 10000 mAH)

  • Power Adaptor: Input AC: 100~240V, 50Hz ; Output DC: 12V/1.5A

  • Relay (optional): 5V/3A Relay with Non-Potential Contacts (NC, NO, COM as Output)

  • GPIO (optional): 5V TTL 1 x Output, 1 x Input

  • Wiegand (optional): 1 Input

  • RS-485 (optional): 1 Host or Slave (Selectable)

• • Conformance & Certifications

  • USB Certification: Yes

  • FCC/CE/UKCA Conformance: Yes

  • Certifications: CE, RoHS, BIS, IP54

• • Temperature & Humidity

  • Operating/Storage  Temperature: 0°C to 50°C

  • Humidity: 10% to 90% (non-condensing)

• • Surface & Systems

  • LCD: 7" TFT LCD with 1024x600 Resolution

  • LED Indicators: Power On/Off, Battery Charging Status

  • Audio: High-Quality 1W Speaker for Announcements

  • Touch: Scratch Resistant Multi-Point Capacitive Touch Screen with 6H Toughen Glass

  • Surface Protection: IP54

  • Control Buttons: 1x Power On/Off, 1x Reset Key

  • Contactless Card (optional) : ISO14443 Type A/B Cards, Mifare

• • Compliance & Regulations

  • FCC: Yes

  • RTC: Yes

Features

1. 5MP Autofocus Front Camera with Flash: Captures clear images for enhanced identification and security.

2. 4000 mAh Battery Backup: Provides extended usage time, ensuring uninterrupted operation even during power outages.

3. Ethernet / LAN Connectivity: Offers reliable network connections for seamless data transfer and integration.

4. 13.56 MHz Contactless Smart Card Reader: Facilitates quick and secure access control through contactless card scanning.

5. STQC & FBI PIV Certified Fingerprint Scanner: Ensures high accuracy and reliability in biometric identification.

6. Android Operating System: Delivers a modern and user-friendly interface for easy navigation and operation.

7. Micro SD Card Slot Supporting up to 32GB Storage: Allows for expandable storage options, accommodating extensive data retention.

8. Barcode Reader with Camera: Enhances functionality by enabling barcode scanning for various applications.

9. 1:1 or 1:N Fingerprint Matching Functions: Supports both one-to-one and one-to-many matching for versatile identification capabilities.

10. MINEX Compliance Extractor: Complies with industry standards for biometric data extraction, ensuring compatibility and reliability.

11. Auto Finger Detection: Automatically detects and reads fingerprints for efficient and user-friendly operation.

12. Scratch-Free Sensor Surface: Durable sensor surface that maintains performance and longevity over time.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
