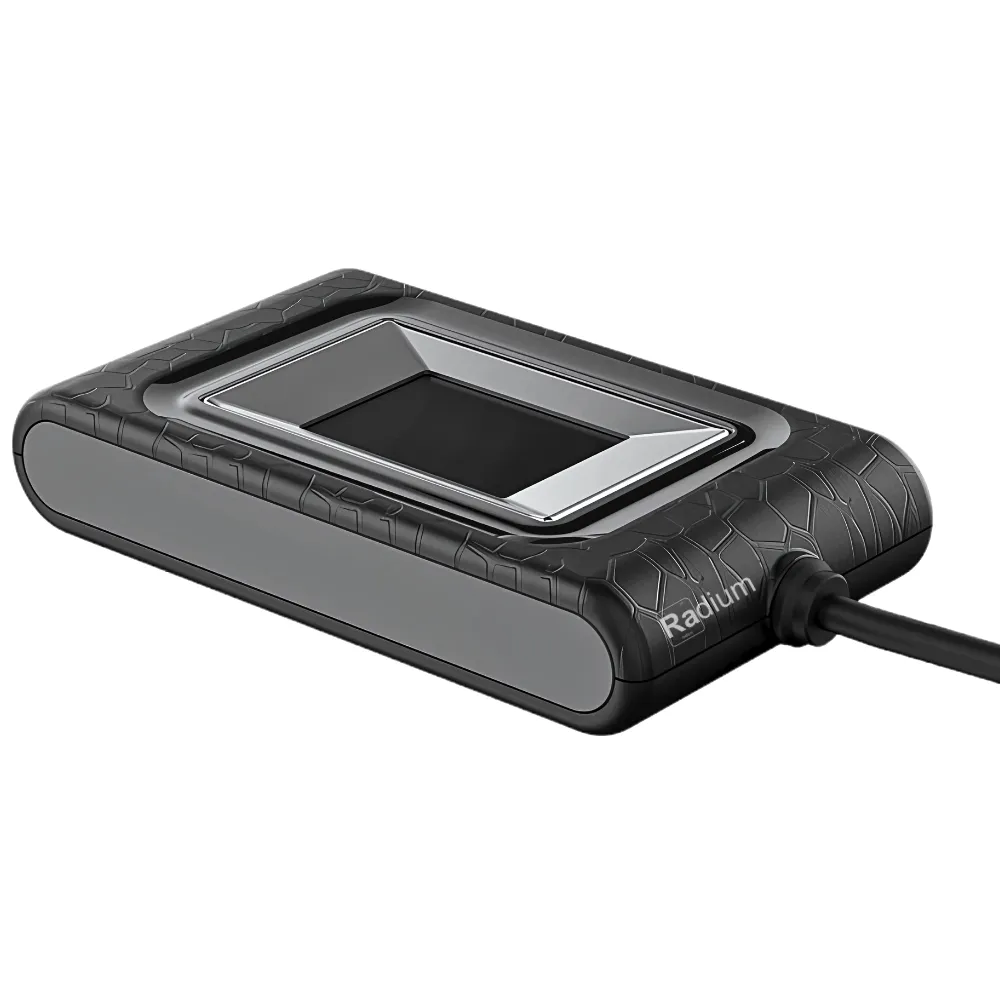

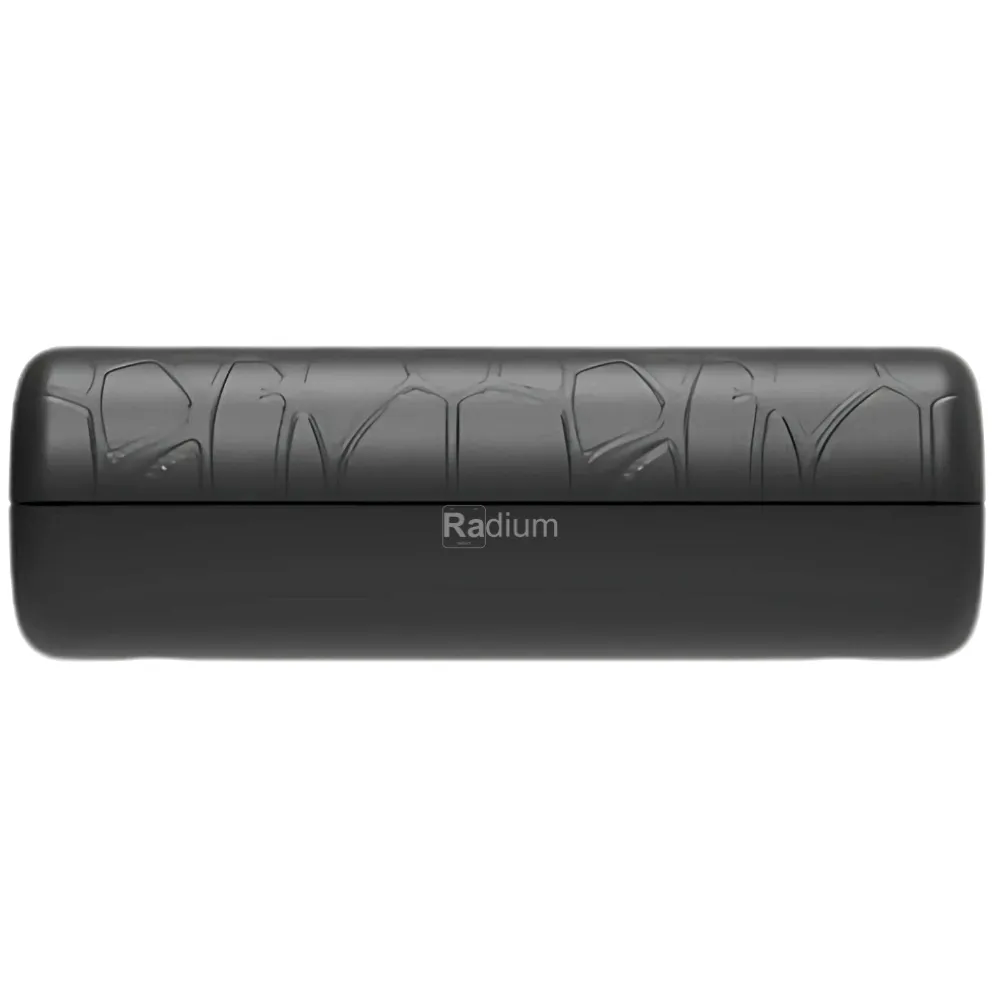

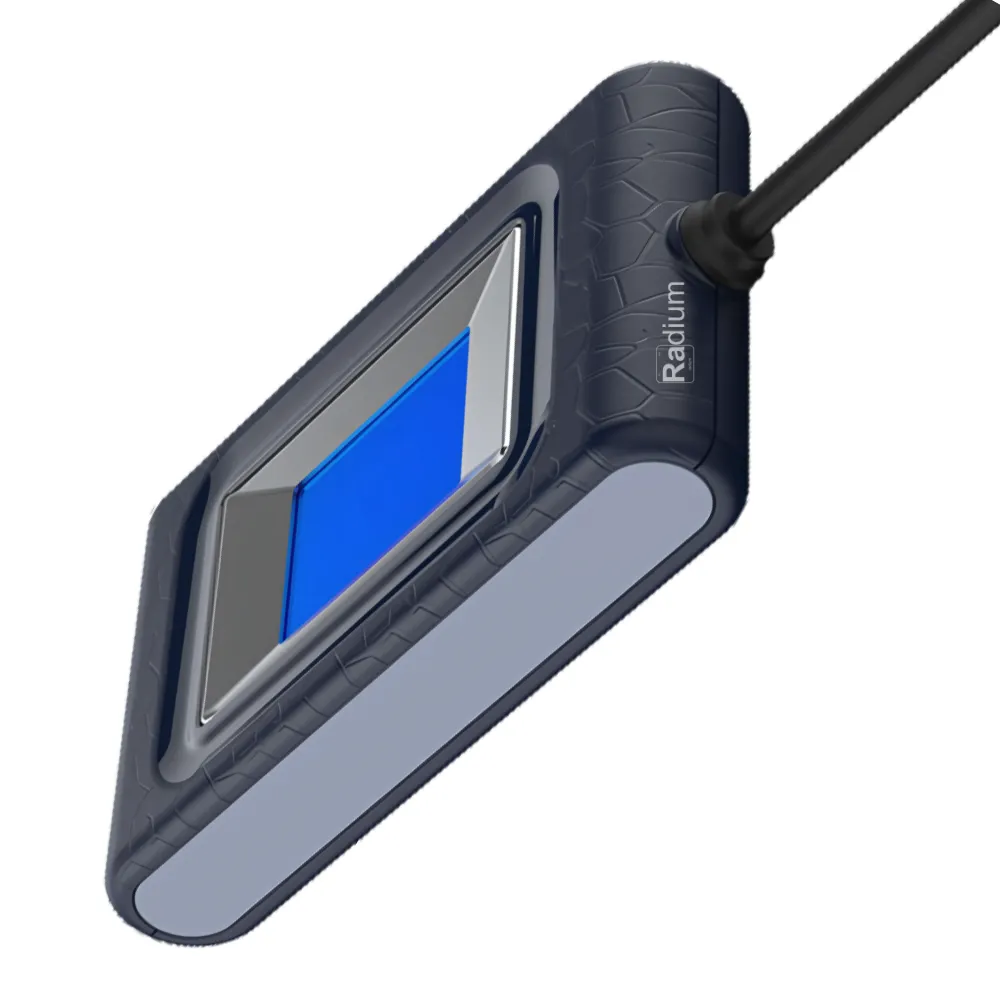

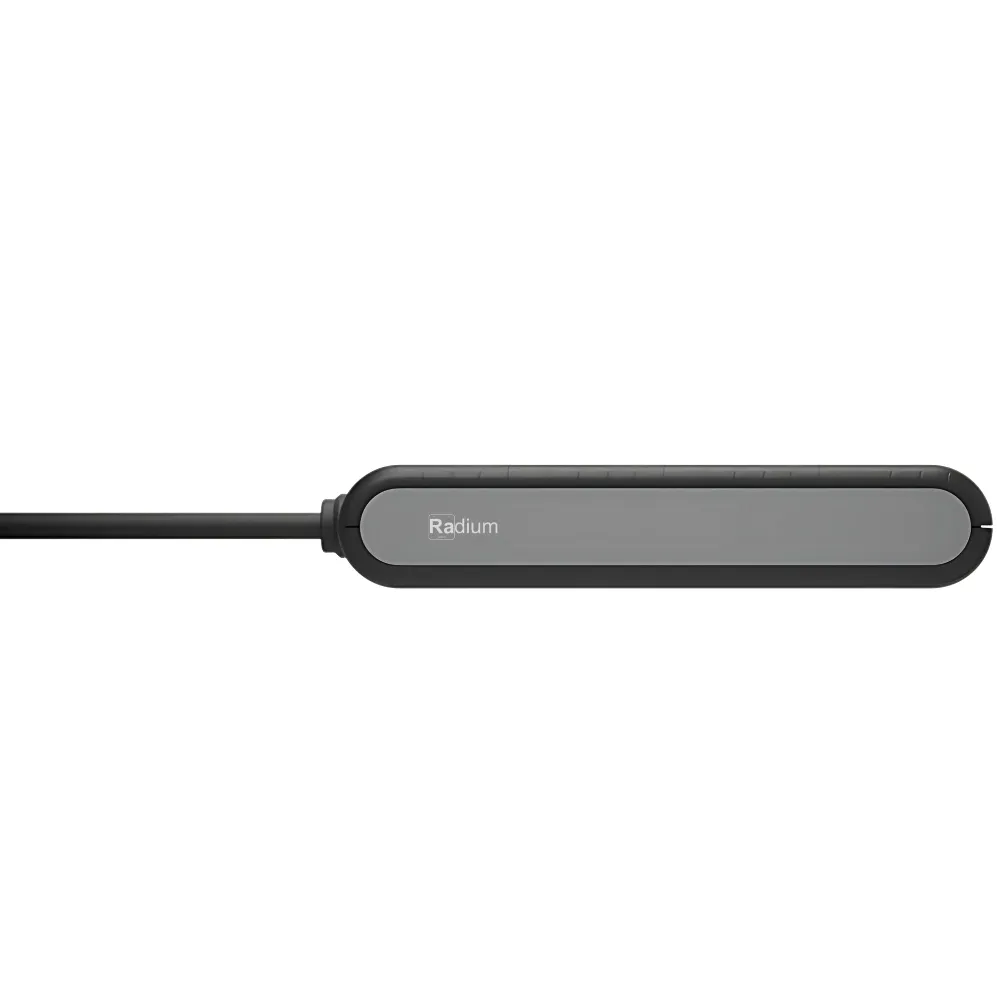

Mantra MAPRO-OX

MAPRO-OX Optical Fingerprint Scanner is one of the latest biometric device used for identification and authentication.

This small and lightweight device leverages state of the art optical scanning technology, and can be efficiently used in multiple settings such as Aadhaar enrolment, biometric security, and time tracking.

The MAPRO-OX has a fixed optical scanner with the optical sensor of 500 DPI to make high detailed fingerprint images. The sensing area is 12.8mm x 18mm large to facilitate the capturing of fingerprints for the fingerprint scanner, single user or multiple users. The scanner capacity extends up to 1,000 users, and as such, it can work for small business and big organizations.

For easy usability, the MAPRO-OX comes with a scratch sensitive touchpad so that it cannot be scratched by other objects hence making it durable. This durability is further enhanced by a design that grants the tool easy maneuverability and operation in different settings. There is also a MINEX compliant extractor for Biometric Fingerprint matching so that quality identification can be used no matter the conditions that are prevailing.

The MAPRO-OX is a very user-friendly installation and is perfect for organizations who wish to incorporate biometric solutions without having to undertake a substantial amount of training to understand its operation or complexities of installation. Due to the size it measures approximately 58 mm x 33 mm x 11 mm and portability is not an issue; thus it can be used at the office, during field work or event management.

The MAPRO-OX is easily connected with computers and other devices since it operates on a standard USB interface. This feature makes it easier to manage data transfer as well as the captured biometric information in a way that the end users will find useful.

The Mantra MAPRO-OX remains distinguished for delivering the most accurate biometric mapping, which at the same time is infused with the latest technologies in the market and practical functionality. It is portable and easy to use, and has a clear image with good response, acquiring various security options. No matter the purpose is to improve access control systems or optimize identity check, the MAPRO-OX is designed to fulfill your need and demand.

You can order the Mantra MAPRO-OX Optical Fingerprint Scanner cost effective in India at Radium Box. If you have any question or if facing any issue with installation or if you would like to know more about the features and functions of the product, you can call us at +91 84343 84343 or mail us at [email protected]. Our technical support department is on hand to help you achieve the greatest value from all biometric products.

Specification

• Product

  • Brand: Mantra

  • Model Number: MAPRO-OX

  • Warranty: 1 Year

  • Origin: Made in India

  • Manufactured by: Mantra Softech India Private Limited

• OS Support & System Requirements

  • OS Support: Windows x86 & x64, Android

• Images & Fingerprint Capture

  • Fingerprint Sensor : Optical Sensor

  • Spatial Resolution : 500 DPI +/-2%

  • Sensing Area : 12.8 mm x 18 mm

  • Sensing Area Hardness : 8H

  • Maximum Acquisition Time (Placement to Template) : < 2 sec

  • Camera: Not applicable

  • Resolution: 500 DPI +/- 2%

  • Grayscale: 256 (8-Bit Gray Level)

  • Image Size: 256 x 360 Pixels

  • Supported Image Formats: ISO 19794-2 for minutiae, ISO 19794-4 for image template

  • FBI / Image Certifications: FBI PIV Certification, STQC Certification

  • Speed/API Interface: Maximum Acquisition Time < 2 seconds (Placement to Template)

  • Quality Scoring: MINEX compliant extractor for better biometric fingerprint matching

• Weight & Dimensions

  • Product Weight: Approx. 0.040 Kg

  • Platen Size: 12.8 mm x 18 mm (Sensing Area)

  • Scanner Assembly Dimensions: Approx. 58 x 33 x 11 mm

• Power & Connectors

  • Operating Voltage : 5V +/- 5% (USB Powered Device)

  • Operating Current (max) : 110 mA

  • Stand by Current (max) : 66 mA

  • Interface : USB 2.0(Wire to Board connector or FPC connector)

• Confirmance & Certifications

  • USB Certification: Yes, WHQL Certified Driver

  • USB-IF compatibility: Yes

  • FCC/CE/UKCA Conformance: CE & FCC Class A compliance

  • Air Discharge / Contact Discharge: Not specified

  • Equipment Safety: IEC60950 compliant

  • Hazardous Material: RoHS Certification

  • Biometric Data Interchange Format : ISO 19794-2 for minutiae & ISO 19794-4 for Image Template

  • BISn: IS 13252 (Part 1)

  • FBI PIV Certification : Compliance

  • STQC Certification : Yes

  • IP Rating : IP67 (Platen Area)

• Compliance/Certifications

  • Fingerprint Template Output Formats: ISO standards for biometric data interchange

• Temperature & Humidity

  • Operating Temperature : 0 to 50 degC

  • Storage Temperature : 0 to 50 degC

  • Humidity (Operating / Storage) : < 90% RH, Non-condensing

• Surface & Systems

  • Ingress Protection / Water / Dust Rating: IP67 (Platen Area)

  • Surface Durability: Scratch-resistant sensor surface with a hardness rating of 8H

  • Surface Protection: Designed to withstand external damages ensuring longevity

  • Cleaning & Sanitization: Cleanable surfaces suitable for hygiene standards

• Compliance & Regulations

  • FCC: Yes

Features

• The device has a scratch-resistant surface and a strong sensor construction to prevent wear and tear and ensure efficiency.

• It has a high accuracy in identifying authorized users and rejecting unauthorized users with little to no errors.

• The design is intuitive and easy to use, reducing training needed and increasing user satisfaction. Its ability to capture and process fingerprint information quickly and efficiently speeds up operations and increases throughput.

• The device is compact and lightweight, making it easily transportable and usable in various settings where space is limited.

• The high-speed USB 2.0 interface allows for fast and easy data transfer for quick authentication of documents. The device supports Aadhaar authentication, which enables convenient and secure identity authentication through the Indian government's system.

• The MINEX compliance extractor ensures regulatory compliance and maintains the security and quality of the extracted and stored fingerprint data.

• The device is FBI PIV certified and meets strict security standards, making it compatible with PIV enabled systems.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
