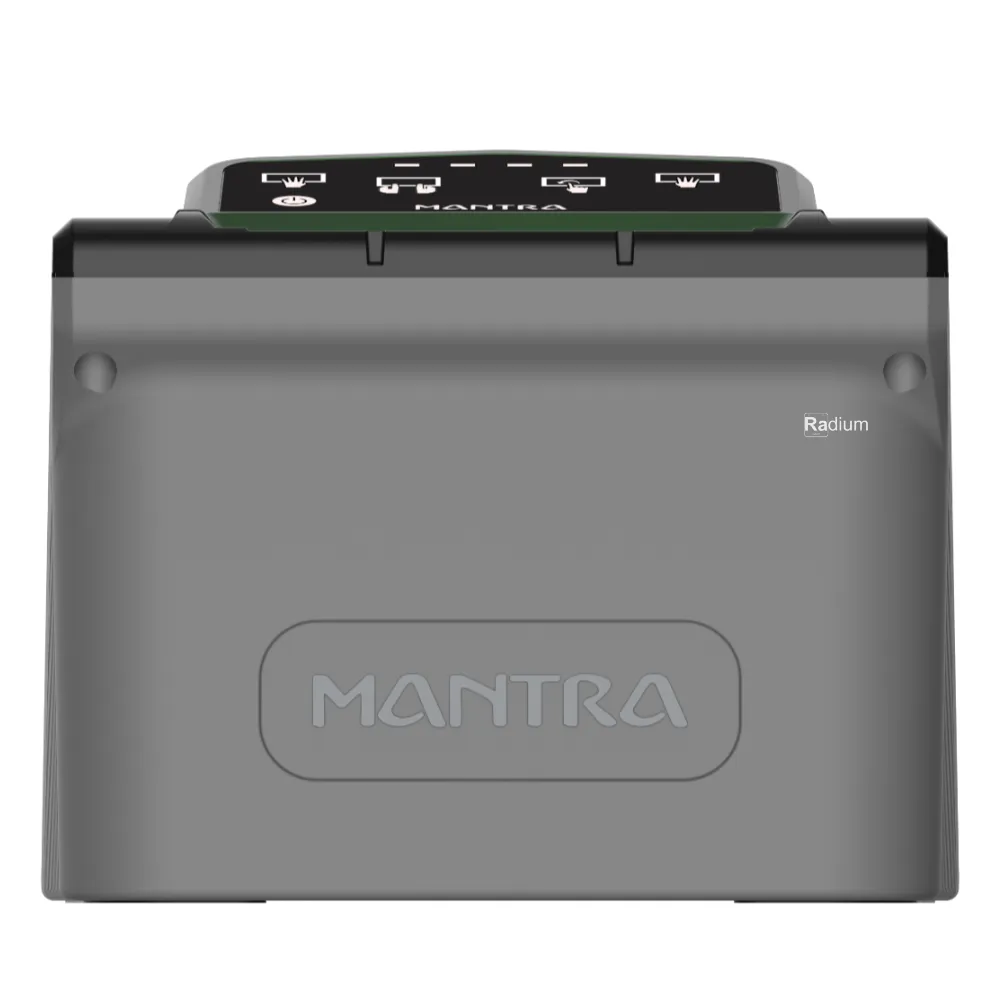

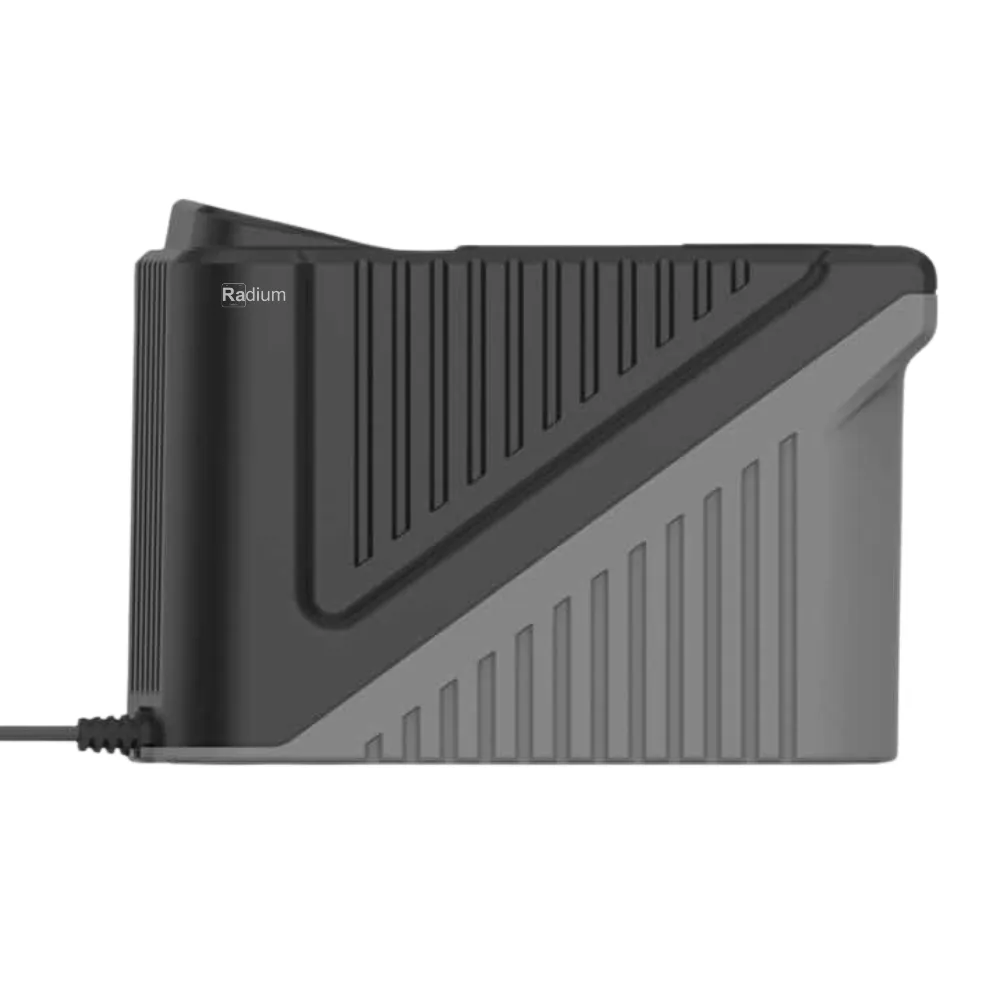

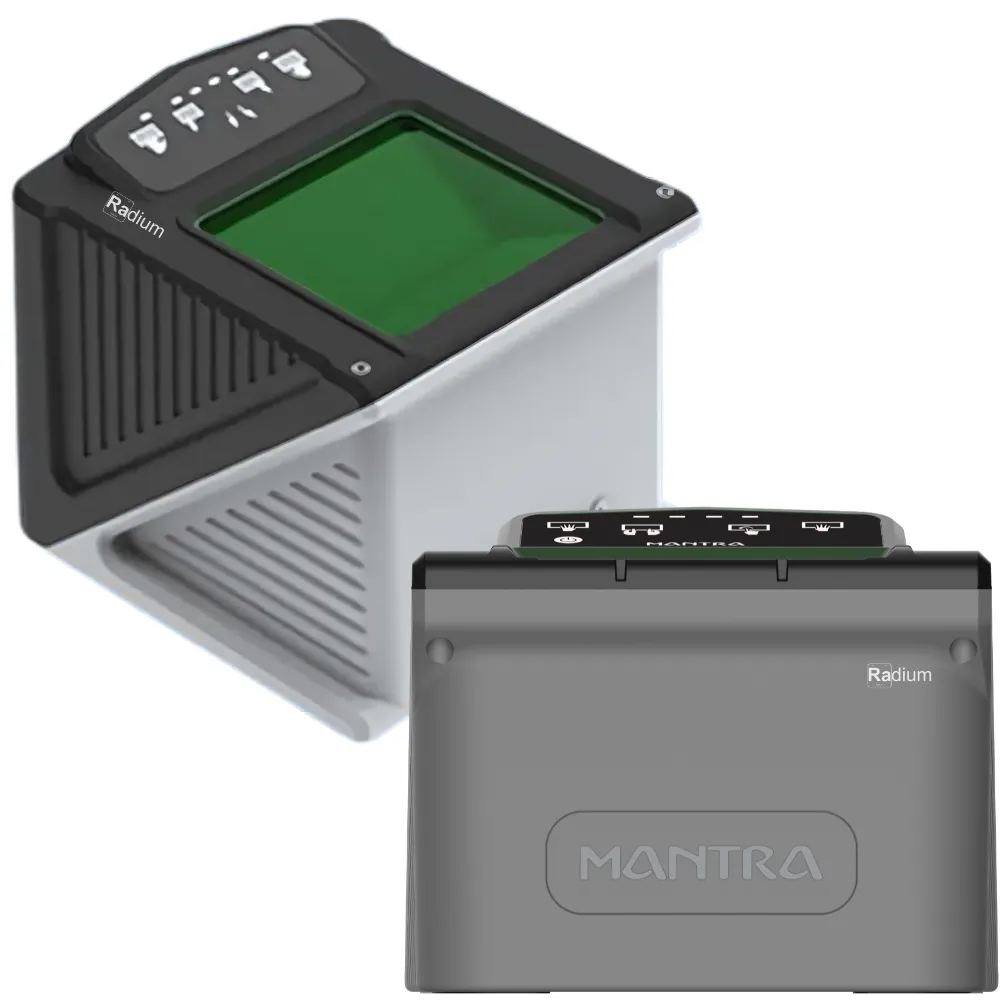

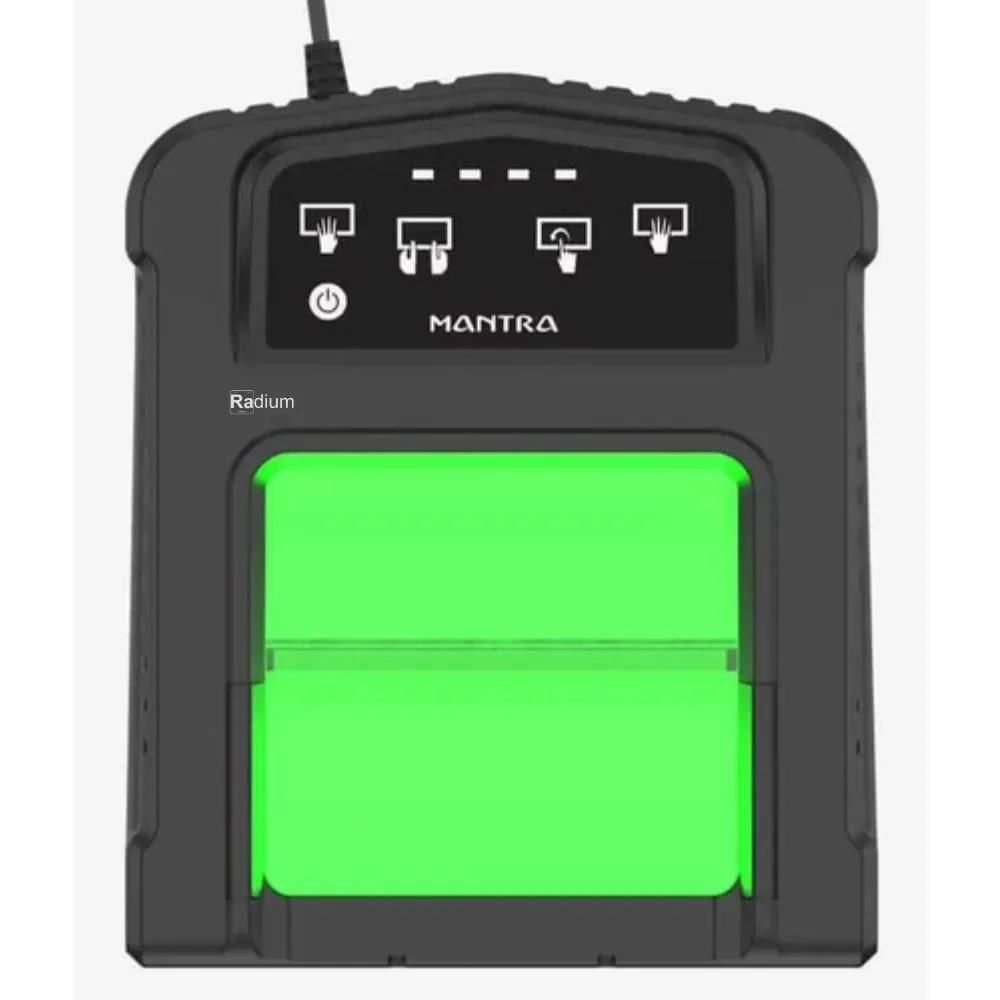

Mantra MORPHS-60

The Mantra MORPHS-60 is the latest portable multi-fingerprint scanner that is capable of addressing the high performance biometric identification and verification requirements.

This advanced device can capture all ten prints at one time and four fingers slapped along with two thumbs which makes it an ideal for national ID projects, police checking, immigration and visa, and criminal identification.

MORPHS-60 is equipped with the modern optic system that ensures the fast, precise, and effective fingerprint capture. With a spatial resolution of 500 DPI, it affirms an ideal fingerprint image that is in congruence with the required quality. The innovative design can capture both the fingerprint ID flats and rolled fingerprints, which make the device suitable for multiple uses.

With a large scanning area the MORPHS-60 can take ten fingerprints at a time which will boost the enrollment process for various government projects like UID-Aadhaar, National ID, and NPR. Their design and SDK architecture make it convenient to use for local and government organisations.

The device is designed for practicing in severe circumstances: the IP54 rating means protection against dust and water splashes. Besides, it functions when exposed to direct sunlight environment, up to 100K Lux and therefore it apply in different environments.

Having received the accreditation of the FBI in Appendix F Mobile ID FAP 60, the Mantra MORPHS-60 has proven to be compliant with the enhanced image quality and performance. It is designed to work best in adverse situations, and you will be surprised by the quality of the pictures it produces even when taken by dirty fingers. It also has other features of automatic sequence checking during the scanning process and assessment of image quality. Physically, the MORPHS-60 device with dimensions of approximately 173 x 147 x 121 mm and mass of approximately 1.6 kg can be used both for mobile observations in the field and installation in offices or centers of enrollment.

Choosing the Mantra MORPHS-60 means choosing a reliable biometric system that suits contemporary identification needs. This makes it possible for the device to deliver high speed when doing its work, superior image capture solution and durably built to provide an equally excellent performance in different types and levels of biometric applications. For both governmental and commercial solutions it incorporates all the necessities for the accomplishment of work using this scanner.

Radium Box Mantra sells the MORPHS-60 multi-fingerprint scanner at a low price, making it easy to purchase the device. If you have questions or need help with the installation process or options, Please contact us at +91 84343 84343 or email us at [email protected] . Our customer support team ensures that all our customers use their solutions optimally.

Specification

• Product

  • Brand: Mantra

  • Model Number: MORPHS-60

  • Warranty: 1 Year

  • Origin: Made in India

  • Manufactured by: Mantra Softech India Private Limited

• OS Support & System Requirements

  • OS Support: Windows x86 & x64, Android

• Images & Fingerprint Capture

  • Sensor Type: Optical Scratch Free Sensor

  • Resolution: 500 DPI +/- 1%

  • Grayscale: 256 (8-Bit Gray Level)

  • Image Size: 1600 x 1500 Pixels

  • Supported Image Formats: ISO 19794-2:2011 for minutiae, ISO 19794-4:2011 for image template, WSQ3.1, JPEG2000

  • FBI / Image Certifications: FBI’s IAFIS Appendix-F & Mobile ID FAP60 certified

  • Speed/API Interface: Capturing Speed: 3.3 frames per second (F)

  • Quality Scoring: Auto capture with built-in quality check (incorporates NIST quality considerations)

• Weight & Dimensions

  • Product Weight: Approx. 1.6 kg (3.6 lbs)

  • Platen Size: 3.5 x 3.2 in. (90 x 81 mm)

  • Active Platen Area: 3.2 x 3.0 in. (81.2 x 76.2 mm)

  • Scanner Assembly Dimensions: 173 x 147 x 121 mm

• Power & Connectors

  • Interface: USB 2.0 (USB-IF Compliance)

  • Connector Type: USB Type A or equivalent for connection to devices

  • Power Source: USB Powered Device (5V +/- 5%)

  • USB Voltage Level: 5V

• Confirmance & Certifications

  • USB Certification: Yes, WHQL certified device driver

  • USB-IF compatibility: Yes

  • FCC/CE/UKCA Conformance: CE & FCC Part 15B Class A compliance

  • Air Discharge / Contact Discharge: Contact Discharge: +/- 4kV, Air Discharge: +/- 8kV

  • Equipment Safety: EN/IEC 62368-1, IS 13252 (Part 1) compliant

  • Hazardous Material: RoHS certified

• Compliance/Certifications

  • Fingerprint Template Output Formats: ISO standards for biometric data interchange

• Temperature & Humidity

  • Operating Temperature: 0 to 50 °C

  • Humidity (Operating / Storage): 10% to 90% RH, non-condensing

• Surface & Systems

  • Ingress Protection / Water / Dust Rating: IP65 rated for water and dust resistance

  • Surface Durability: Scratch-resistant sensor surface with a hardness rating of 8H

  • Surface Protection: Designed to withstand external damages ensuring longevity

  • Cleaning & Sanitization: Cleanable surfaces suitable for hygiene standards

• Compliance & Regulations

  • FCC: Yes

Key Features

• Advanced Certification and Standards: It is FBI Appendix Certified, WHQL certified and also enhances compatibility with Interchange Biometric Standards.

• Enhanced Usability: It comes with flat capture support and is easy to operate with LED indicators to help improve support.

• Durable and Rugged Design: Being scratch-free and waterproof, appropriate dust protection to withstand and last longer with steady and powerful performance.

• High-Performance Connectivity: Compatible with USB 2.0 and is USB-IF certified hence it will easily fit in any operating system.

• Optimal Functionality in Challenging Environments: High Level of Performance even under direct sunlight up to 100K LUX competitive for outdoor use.

• Precision and Reliability: Originally developed for enhanced fingerprint capture providing exact and fast acquisition of fingerprints for use in various complex biometric applications.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
