Nitgen eNBioScan C1 (HFDU08) FBI SQTC Certified Fingerprint Biometric Scanner for Aadhaar Authentication

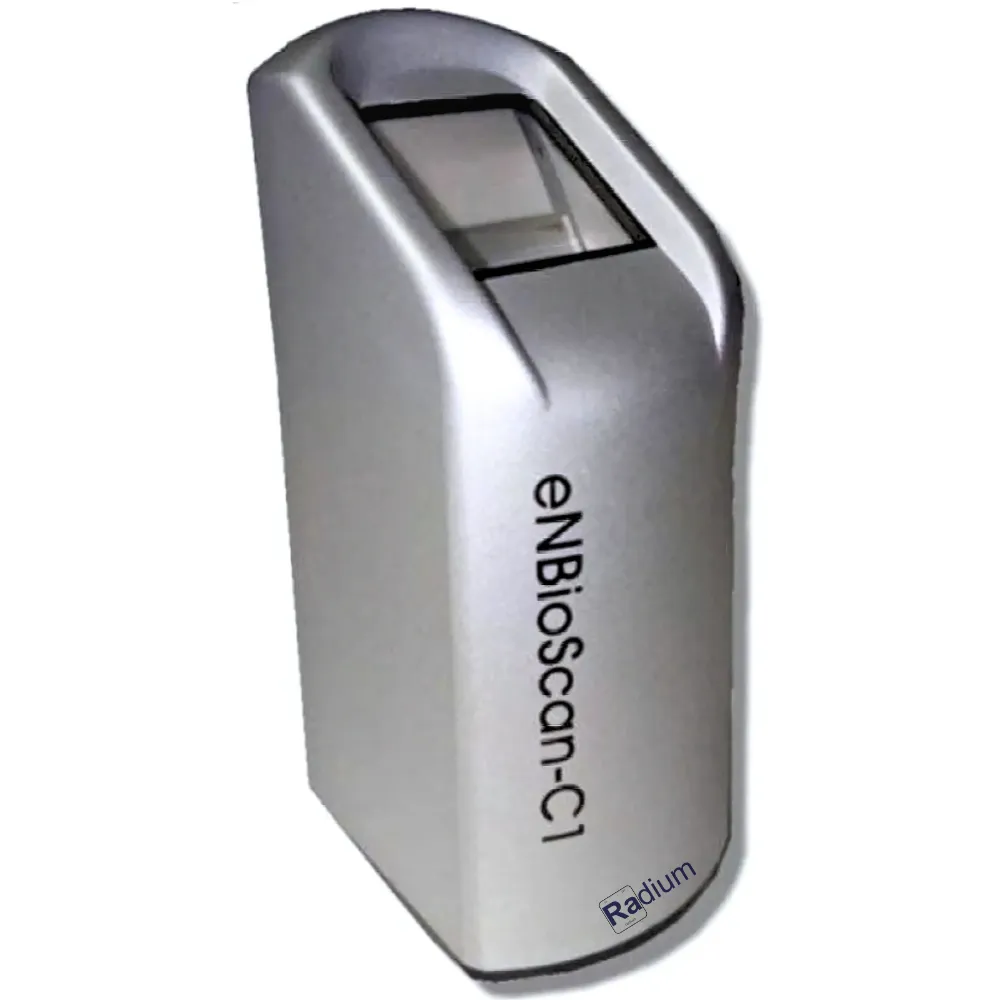

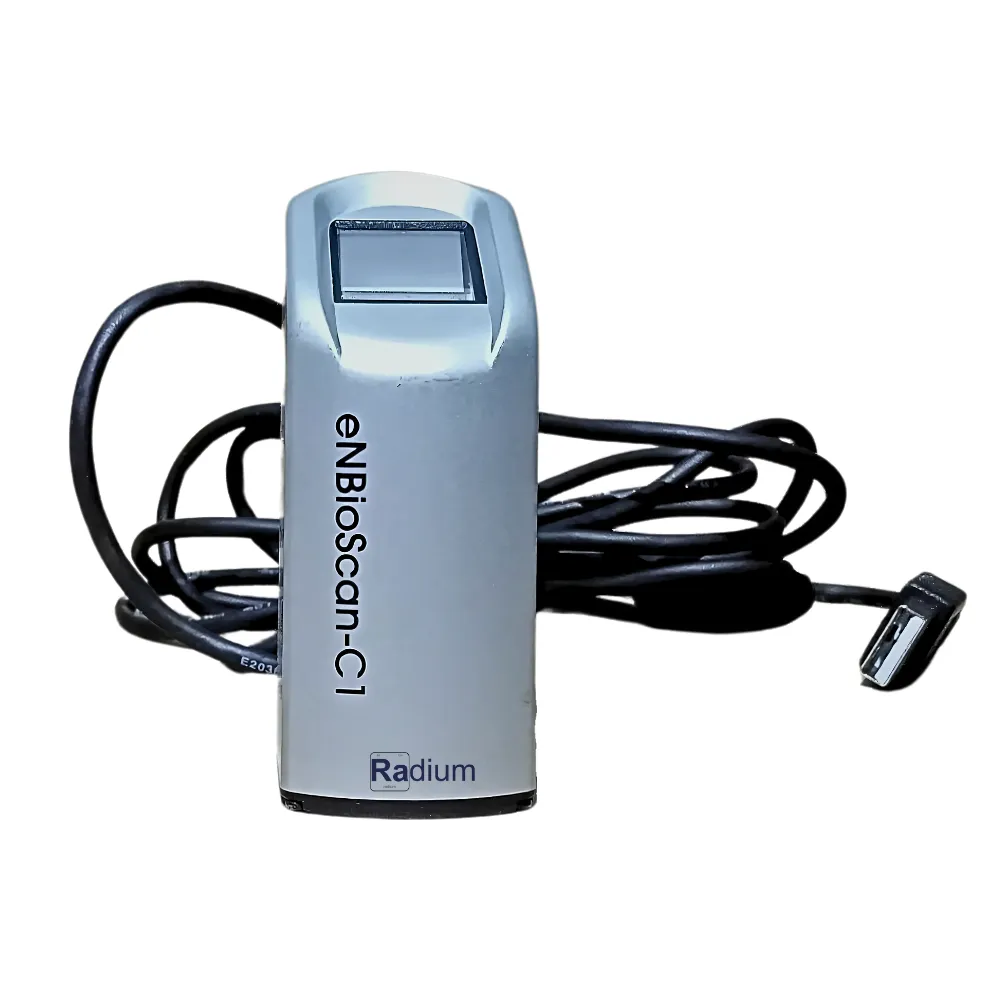

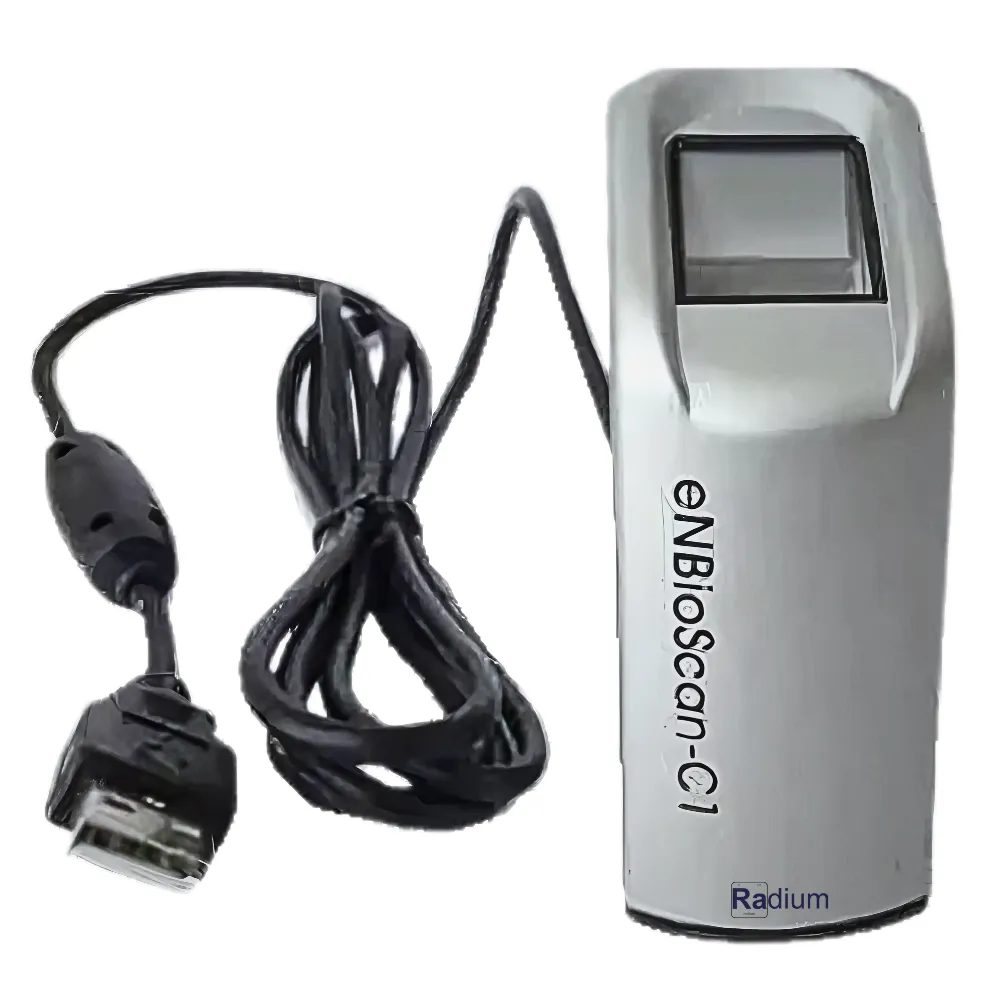

Nitgen eNBioScan C1 (HFDU08)

The Nitgen eNBioScan C1 (HFDU08) is a high performance optical fingerprint scanner developed particularly for secure and efficient authentication of UIDAI. Based upon the general-purpose FDU08 fingerprint scanning module, the device is known for its capability to capture high-quality fingerprint images quickly and accurately, thus making it an ideal choice for applications such as Aadhaar Pay, UIDAI Enrollment, and Biometric Attendance.

One of the features in the Nitgen eNBioScan C1 is its rigid design, among which is the scratch-proof sensor that is resistant to impact, vibration, and electrostatic shock. The durability will make sure that the scanner works all the time, even under difficult conditions, with its ability to effectively capture problematic fingerprints—be they wet or dry.

eNBioScan C1 with high-speed USB interface for an Image Capturing and Verification Device

 A very ergonomic design enables easy fingerprint positioning with maximum comfort for the user while being scanned. You can run the device on the Nitgen-eNBSP SDK Ver 4.8, and it interfaces easily with all systems using USB IF compliance and the Neurotechnology extractor.

The Nitgen eNBioScan C1 securely authenticates users, bridging them to the Aadhaar ecosystem through the transfer of users' Personal Identity Data (PID). These, therefore, make it a very important tool in various applications, from computer security, e-commerce to healthcare systems, and use in place of passwords.

The device also bears certification from FBA STQC, which ensures the most demanding standards for Aadhaar application. The IP54 sealing, in turn, ensures its strength against dust and moisture, thereby allowing its use both inside and outside. Also, the scanner has liveness and latent detection capabilities that increase security and the trustworthiness of the scan.

You can purchase the Nitgen eNBioScan-C1 at the best price in India from the Radium Box website.

 For those looking to download the necessary software, the Nitgen eNBioScan-C1 driver is available for free, making installation and configuration straightforward. If you need details about the enBioScan-C1 price or require assistance, feel free to reach out to either Nitgen or Radium Box customer service.

For more information and support, visit the Radium Box official website or contact their customer care at +91 84343 84343 or via email at [email protected].

Specifications

• • Product

  • Brand: Nitgen

  • Model Number: eNBioScan C1 (HFDU08)

  • Security Level: FBI-PIV Certified, STQC Certified

  • Warranty: 1 Year

  • RD Service: Available

  • Origin: South Korea

  • Manufactured by: Nitgen Co., Ltd.

• • OS Support & System Requirements

  • OS Support: Windows 10, Windows 8, Windows 7

• • Images & Capture

• Sensor Type: Optical

• Image Size: 260 x 330 pixels

• Resolution: 500 DPI

• Image acquisition time: Full Speed : Avg. 500 msec; High Speed : Avg. 130 msec.

• Supported Image Formats: WSQ compression, ISO 19794-2/4, ANSI 378, NFIQ

• FBI / Image Certifications: FBI PIV Certified, STQC Certified

• Speed/API Interface: High-speed USB connectivity

• • Weight & Dimensions

• Product Weight: 0.3 kg

• Platen Size: 16 x 18 mm

• Sensing Area: 13.2 x 16.8 mm

• Dimensions: 39 x 88.7 x 88.7 mm

• • Power & Connectors

• Interface: USB 2.0 High/Full Speed

• Connector Type: USB

• Power Source: USB BUS Power

• USB Voltage Level: 5V

• • Conformance & Certifications

• USB Certification: Yes

• USB-IF compatibility: Yes

• FCC/CE/UKCA Conformance: Yes

• • Compliance/Certifications

• Fingerprint Template Output Formats: ISO 19794-2/4, ANSI 378

• • Temperature & Humidity

• Operating Temperature: -20~60 ℃

• Humidity: < RH 90%

• • Surface & Systems

• Ingress Protection / Water / Dust: IP54 rated

• Surface Durability: Scratch resistant, impact resistant

• Surface Protection:  vibration resistant, electrostatic shock resistant

• • Compliance & Regulations

  • FCC: Yes

Features:

• FBI-PIV, FIPS201, STQC, WHQL, KC, FCC, CE, RoHS, UL and STQC Certified compliance with stringent security standards for biometric authentication.

• Ergonomic Design features a scanner body that rotates for easier fingerprint positioning.

• USB Connection compatible with USB 2.0, this plug-and-play device supports multiple device handling.

• Superior Matching Engine ranked 1st in the Fingerprint Verification Competition (FVC), ensuring high accuracy.

• Auto-on™ Function automatically powers on for quick readiness.

• Advanced Optical Technology the sensor is resistant to scratches, impact, vibration, and electrostatic shock.

• International Standard Image Format and Interfaces supports WSQ compression and complies with ISO 19794-2/4, ANSI 378, and NFIQ standards.

• High-Quality Image Capturing delivers superior performance for both wet and dry fingerprints.

• SDK Supported compatible with various software development kits for enhanced integration.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
