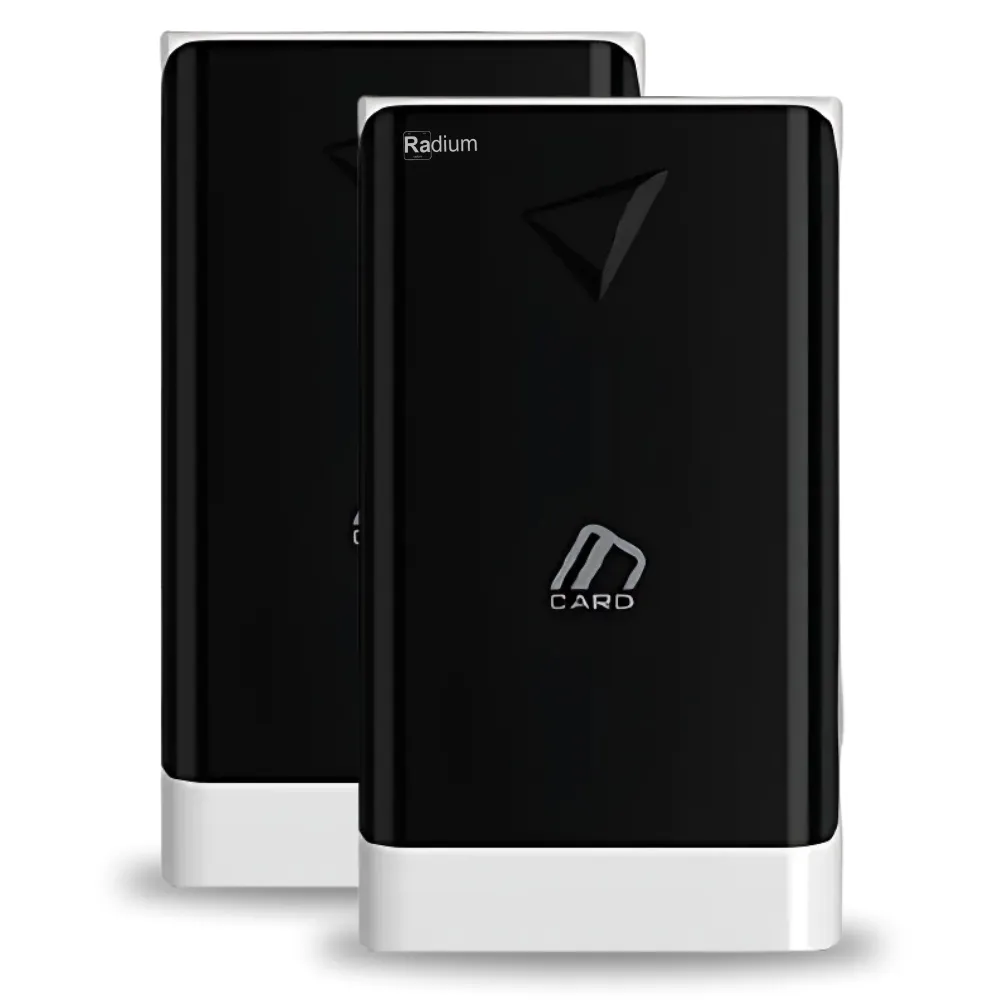

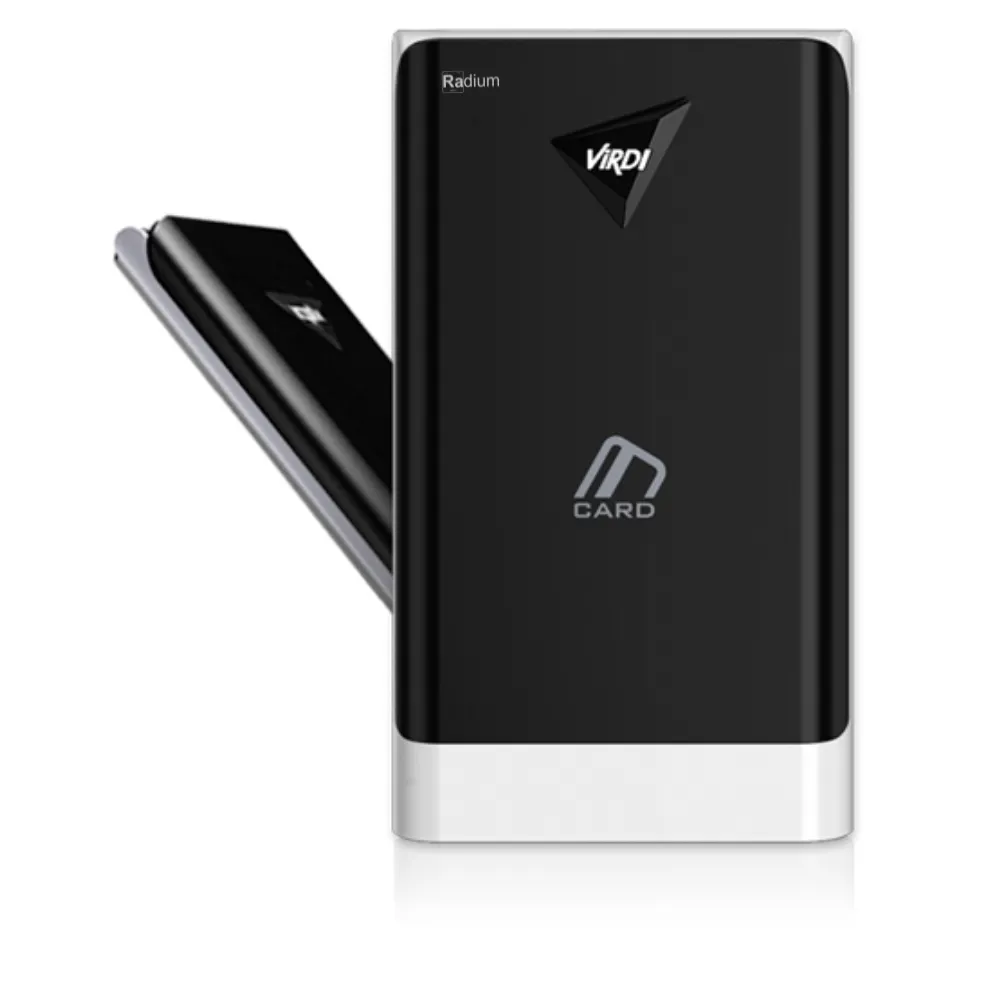

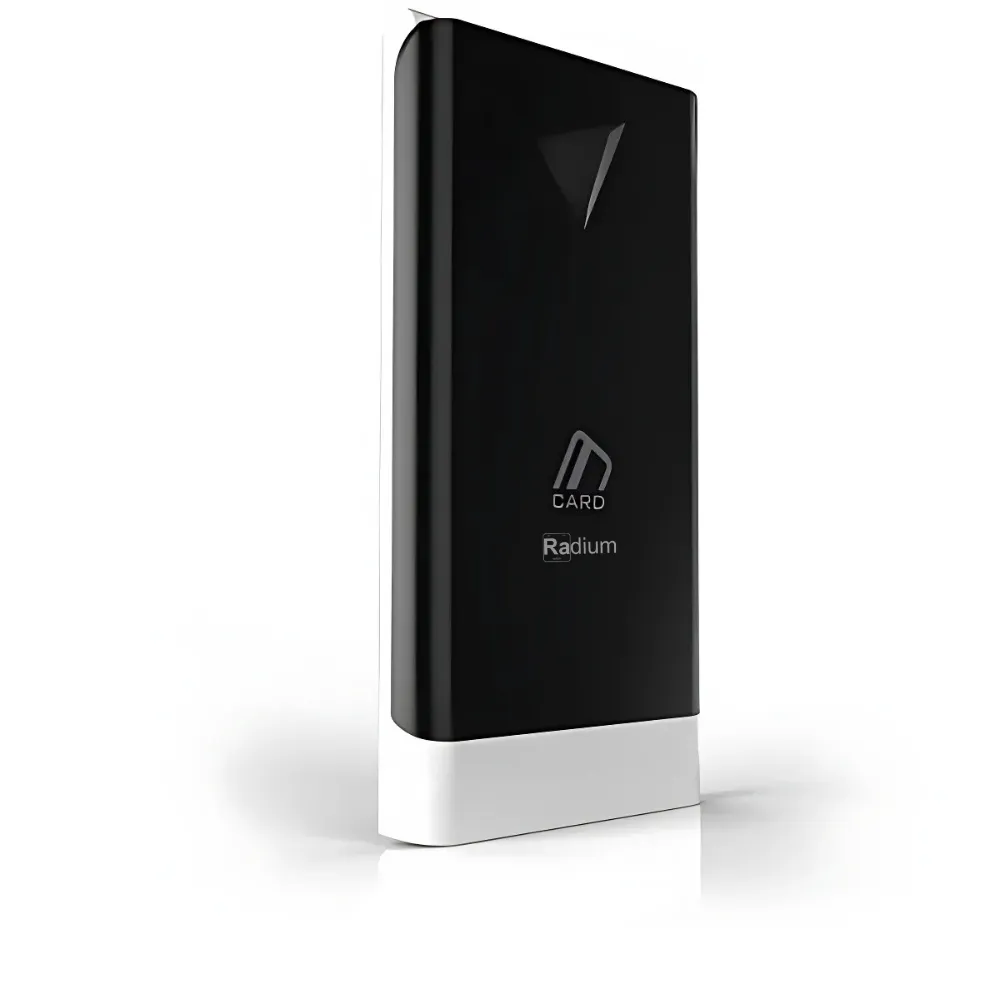

NS-R20D Exit Card Reader

NS-R20D EM & Standard MF Exit Card Reader

The NS-R20D Exit Card Reader is a highly innovative access control product that has been developed to improve on the security of your space while offering compact styling. This device is ideal for business organizations that would wish to upgrade their access management so as to have a better product without having to overemphasize on the same.

With  IP65, the NS-R20D is protected against the dust and water, thus it can be installed outdoors in different climatic situations. Its robust design provides strength, solidity and can be relied upon to perform well in most demanding conditions. The reader also has LED lights that can effectively notify users of access-related status from time to time.

The NS-R20D has a network interface so it can be easily plugged into existing security systems. There are also card solutions that support a variety of card technologies such as EM & Standard MF. Therefore, it can be concluded that it is very suitable for organizations with easy access control requirements.

Being a model of access controller that is adaptable to the MCP 040 controller, NS-R20D makes your access system more efficient and easier to upgrade. The sleek and lightweight design of this device makes it suitable for installation in limited spaces. Guaranteed perfect integration with other safety features.

Any company looking to enhance the security of their access control system should consider purchasing the high-performance NS-R20D exit card reader. With high-level features of Build quality and ease of use. This reader is here to increase your security. For further details or to buy the NS-R20D Exit Card Reader at reasonable price, visit the RadiumBox official website or call us at +91-8434384343 / email:  [email protected].

Specification

• Product

• Brand: Bioenable

• Name: NS-R20D

• Model: EM ; Standard MF

• Type: Exit Card Reader

• Warranty: 1 Year

• Performance Metrics

• Authentication Types: Card + Password + Mobile Key

• Card Capacity: 200,000 cards

• Log Capacity: 1,000,000

• Image Logs: 20,000 (12,500 user pictures)

• Read Time: < 200 ms

• Read Interval: < 0.5 s

• Key Specification

• Network Interface: Wiegand; RS-485; RS-232; BLE (Bluetooth Low Energy); TCP/IP (optional)

• IP65 Rating: Dustproof and waterproof for reliable outdoor use.

• USB OTG (On-The-Go): Yes, for easy data transfer and connectivity.

• Supported Card Types

• Low Frequency (125 kHz): EM4100, TK4100, SMC4001 and compatible cards

• High Frequency (13.56 MHz): Mifare, HID Felica, iClass, CEPAS

• Indicators and Power Supply

• LED Indicator: Three-color high luminance LED for operational feedback

• Power Supply: DC 5V

• Environmental Specifications

• Operating Temperature Range: -10°C to +70°C

• Storage Temperature Range: -20°C to +80°C

• Operating Humidity: < 90%

• Physical Specifications

• Dimensions: 70 mm (W) x 124 mm (H) x 11 mm (D)

• Weight: 140 g

• Material: ABS

Key Features

• Dummy Card Reader: Also used for testing and demonstration purposes only.

• Slim & Compact Design: Convenient in space occupancy and attractive for different establishments.

• IP65 Rating: Waterproof and dust proof, ideal for outdoor use.

• LED Indicator: A three color LED gives feedback on the state of the device.

• Network Interface: Integrated with existing security systems can be supported.

• Card Option: Constructed to work with different card technologies to allow flexible access management.

• Compatibility: Fully compatible with the MCP 040 Controller to provide even more utilities.

Note: Before using the device, please check the app specifications to ensure compatibility.
