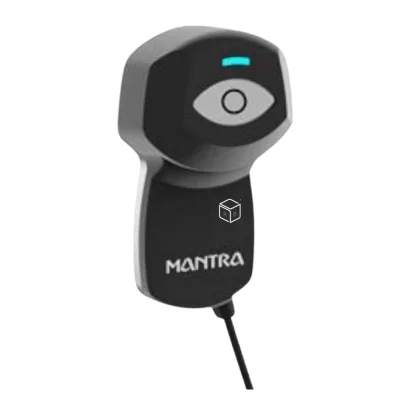

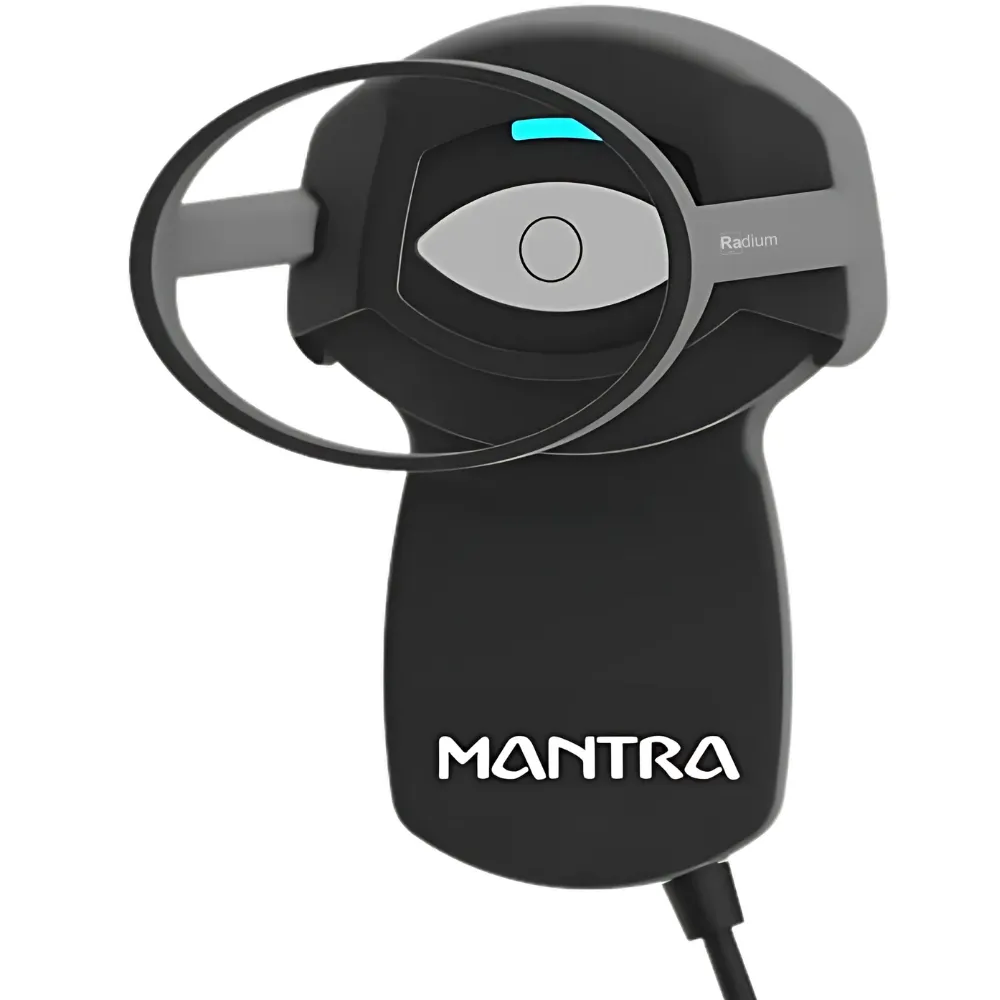

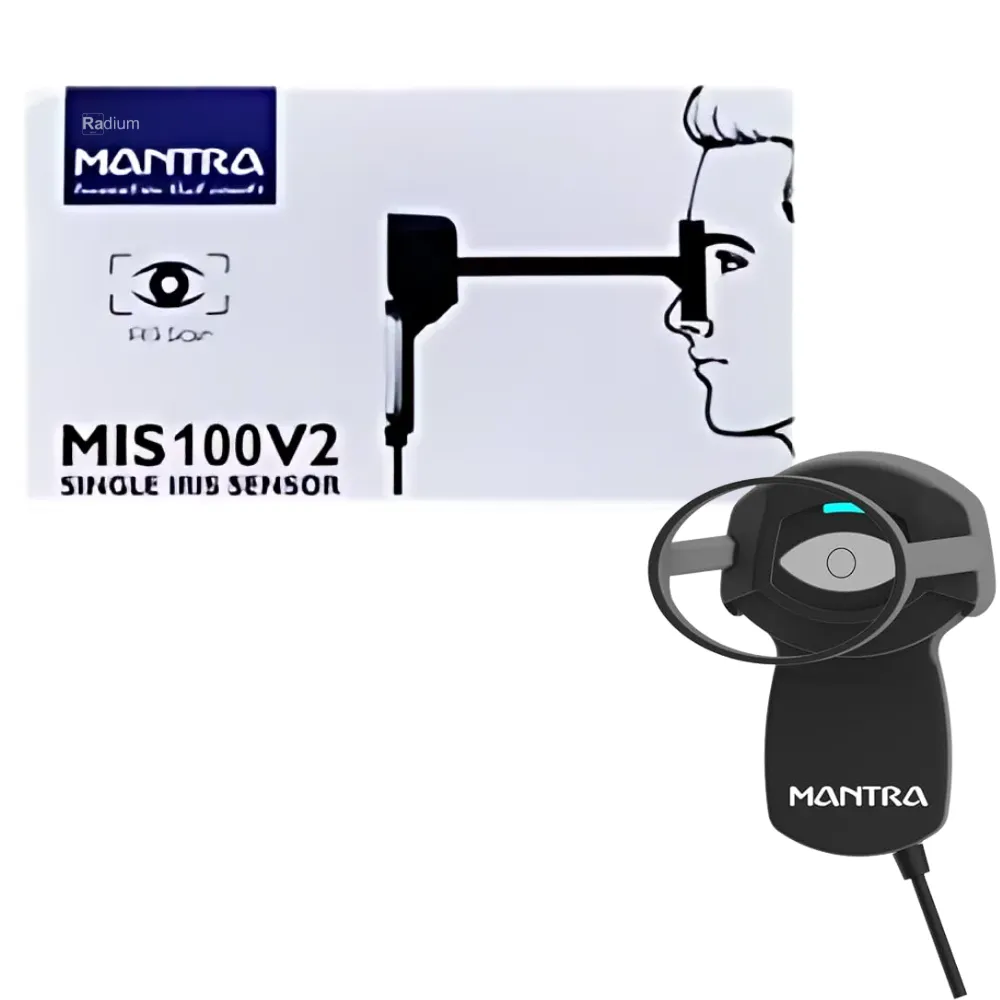

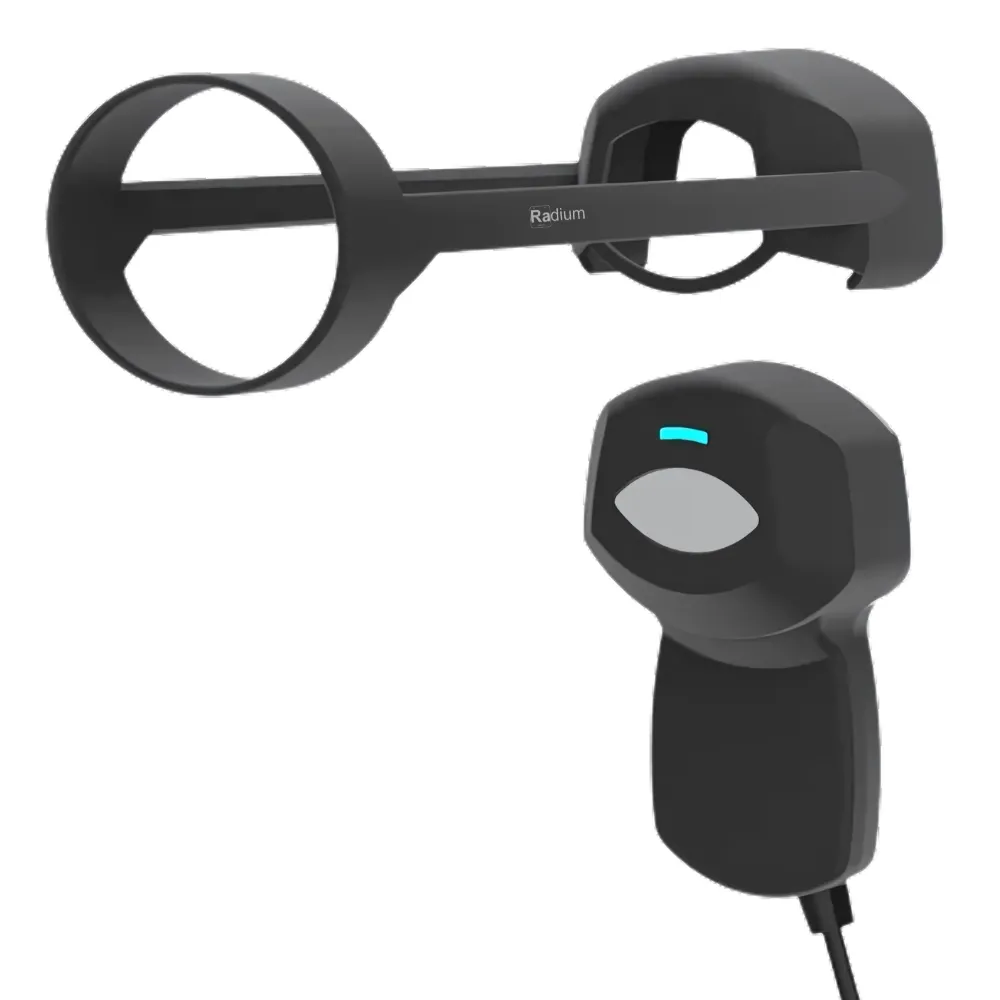

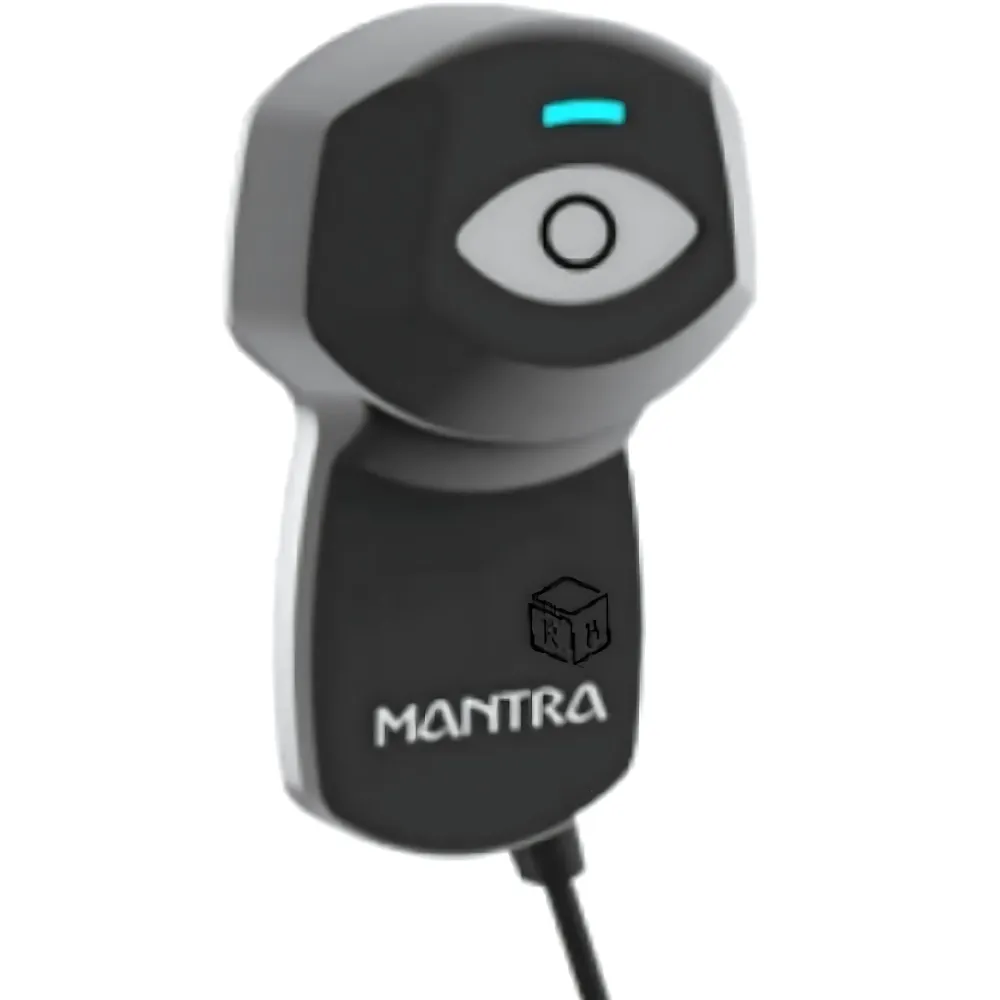

Mantra Iris Scanner - Single USB MIS 100 V2 Biometric Device

Mantra Iris MIS100 V2

The Mantra Iris MIS100V2 is an USB iris scanner manufactured by Mantra Softech (India) Pvt. Ltd. , that is designed for iris authentication and identity all types of applications.

This strong and rugged MIS 100 IRIS device, comes with its high accuracy and precision, fits in secure biometric verification. The device works in applications  like Aadhaar authentication,AFIS, Health and Medical, Smart card application, NREGA/MGNREGA, Jeevan Pramaan, PC/Network security, Time and attendance, Skill Development, UIDAI, Public application, PDS, banking applications, and access control systems.

With its advanced features, the Mantra Iris scanner uses a quality algorithm that makes it highly effective in bad iris image detection, letting adjustments be made in view of inbuilt LED indications. This STQC-certified iris sensor comes with a high-resolution CMOS sensor to create top-notch ISO/IEC 19794-6 images with JPEG2000 compression for assured performance. Added to this is proprietary focus analysis and distance sensing technology that enables fast auto-capture capabilities having the lowest FAR and FRR. The MIS IRIS V2 scanner also supports various operating systems, including Windows, Linux, and Android. It was made to be compact in design at 4D × 6W × 8H centimeters in dimension, thereby easily portable with USB connectivity for plug-and-play convenience.

The Mantra Iris MIS100V2 is useful in programs like Ayushman Bharat Yojana, UIDAI authentication, and AB-NHPM. Its brilliant scanning performance makes it realize high security in identity authentication applications with faster scanning, larger depth of field, and wider scanning angle with zero error rates during operation. With its competitive pricing and a set of advanced features combined with robust performance, it easily becomes one of the best options for any single iris sensor needing secure biometric authentication.

You can buy Mantra IRIS MIS100V2 RD Service at the best price in India from the Radium Box website. This high-performance USB iris sensor works with various identity applications and gives any person a distinct identity, like Aadhaar authentication, banking applications, access control, and many more. MAntra Iris RD service driver  for the setup and installation of your Mantra Iris MIS100 V2 device effortlessly.

The Mantra Iris driver MIS100V2 can be downloaded easily from our Radium Box official website. The device also comes with RD service, which is put in to help in maintaining functionality and compliance. For the installation of drivers and to get the latest updates regarding Mantra Iris scanner price, RD service validity check, or to download the drivers. You can contact us on +91 84343 84343 or mail us at: [email protected] in case of any support or query.

Specification

• • Product

  • Brand: Mantra

  • Model Number: MIS100V2

  • Security Level: High

  • Warranty: Not specified

  • RD Service: Available

  • Origin: India

  • Manufactured by: Mantratec

• • OS Support & System Requirements

  • OS Support: Windows 7, Windows 10, Linux, Android

  • CPU: Not specified

  • Memory: Not specified

• • Images & Capture

  • Spatial Resolution: 50% 1.0 LP/mm

  • Pixel Resolution: > 10 pixels/mm

  • Image Margins Left & right: >=0.6x iris radius

  • Top & bottom: >=0.2x iris radius

  • Imaging Wavelength: 700-900 nm

  • Capture Mode: Auto capture with built-in quality check

  • Capture time: < 2 Sec

  • Sensor Type: High-resolution CMOS Sensor

  • Pixel Depth: 8 bits/pixel

  • Supported Image Formats: KIND1 to KIND7 with JPEG2000 compression

  • FBI / Image Certifications: STQC certified

  • Speed/API Interface: Auto capture with built-in quality check

  • Quality Scoring: Lowest FAR and FRR

• • Weight & Dimensions

  • Product Weight: ‎‎140 g

  • Scanner Assembly Dimensions: 4D x 6W x 8H centimeters

• • Power & Connectors

  • Interface: USB 2.0

  • Connector Type: USB

  • Power Source: USB powered

  • USB Voltage Level: 5V

• • Conformance & Certifications

  • USB Certification: Yes

  • USB-IF compatibility: Yes

  • FCC/CE/UKCA Conformance: Yes

  • Air Discharge / Contact Discharge: ±8 kV air, ±4 kV contact

  • Equipment Safety: RoHS compliant

  • Safety Exempt Group: Per IEC 62471:2006-07

  • Radiated Emission: FCC part15B/IEC:CISPR 22 CLASS B standard

  • Radiated Immunity: As per IEC/EN 61000-4 3:2006+A2:2010

• • Compliance/Certifications

  • Fingerprint Template Output Formats: ISO/IEC 19794-6

• • Temperature & Humidity

  • Operating Temperature: 0°C to 50°C

  • Humidity: < 90% RH, non-condensing

  • Storage Temperature: -20°C to 60°C Surface & Systems

  • Ingress Protection / Water / Dust: IP54

  • Surface Durability: Scratch-resistant

• • Compliance & Regulations

  • FCC: Yes

Features:

• Known for precise and reliable iris scanning capabilities, ensuring accurate authentication for high-security applications.

• Supports Windows, Linux, and Android operating systems, with a plug-and-play USB 2.0 high-speed interface for easy setup and use.

• Certified by STQC, ensuring adherence to stringent standards for quality and performance, crucial for applications requiring high levels of security.

• Provides superior accuracy with the lowest False Acceptance Rate (FAR) and False Rejection Rate (FRR) in biometric authentication.

• Quick capture time of less than 2 seconds, facilitated by auto-capture feature with built-in quality checks, ideal for time-sensitive applications.

• Compliant with health and safety standards including RoHS compliance and IEC 62471:2006-07 for safety exemptions. Meets standards for ESD air discharge and radiated emission.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
