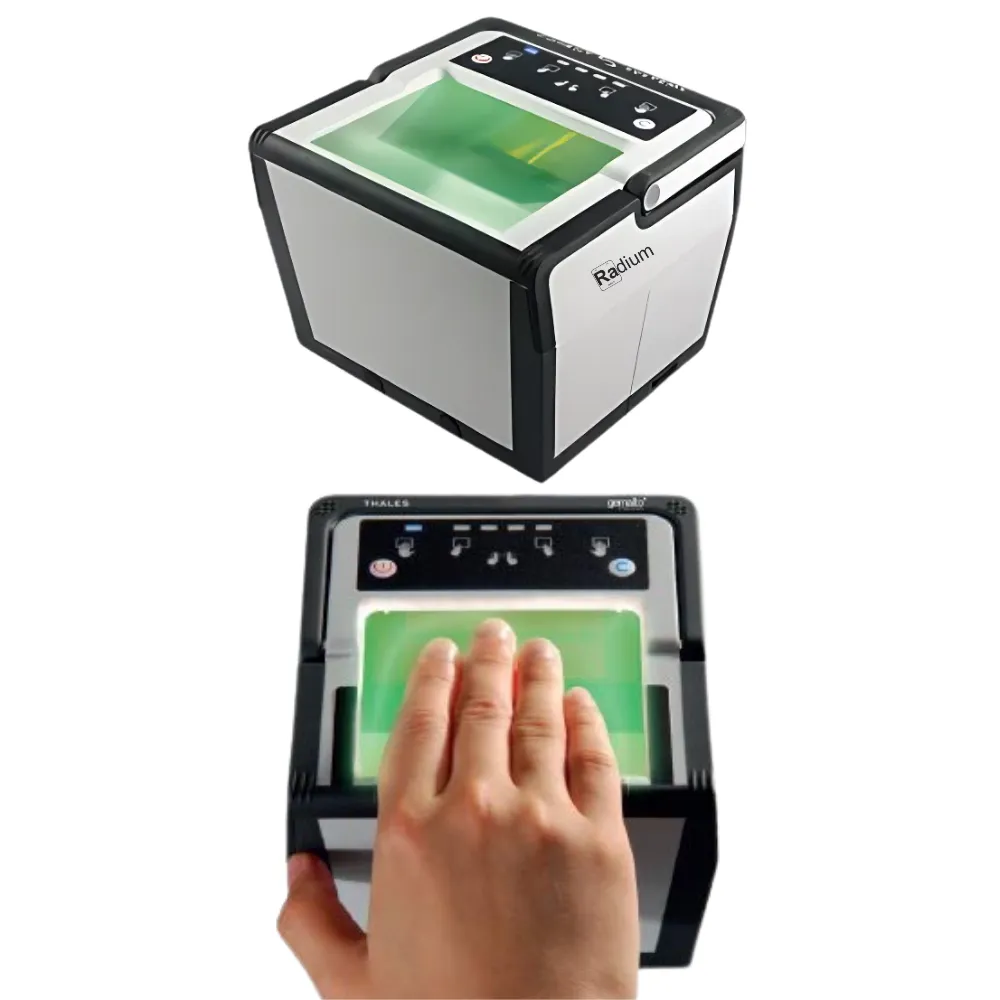

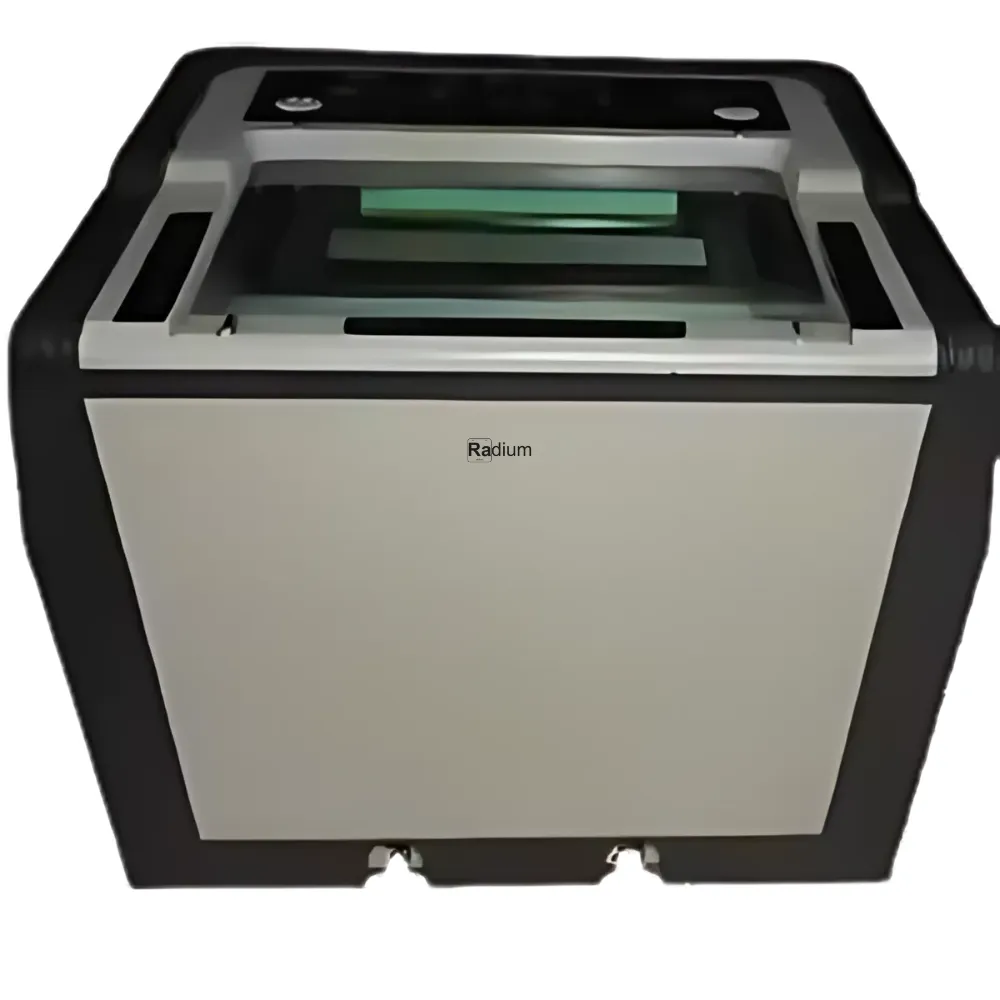

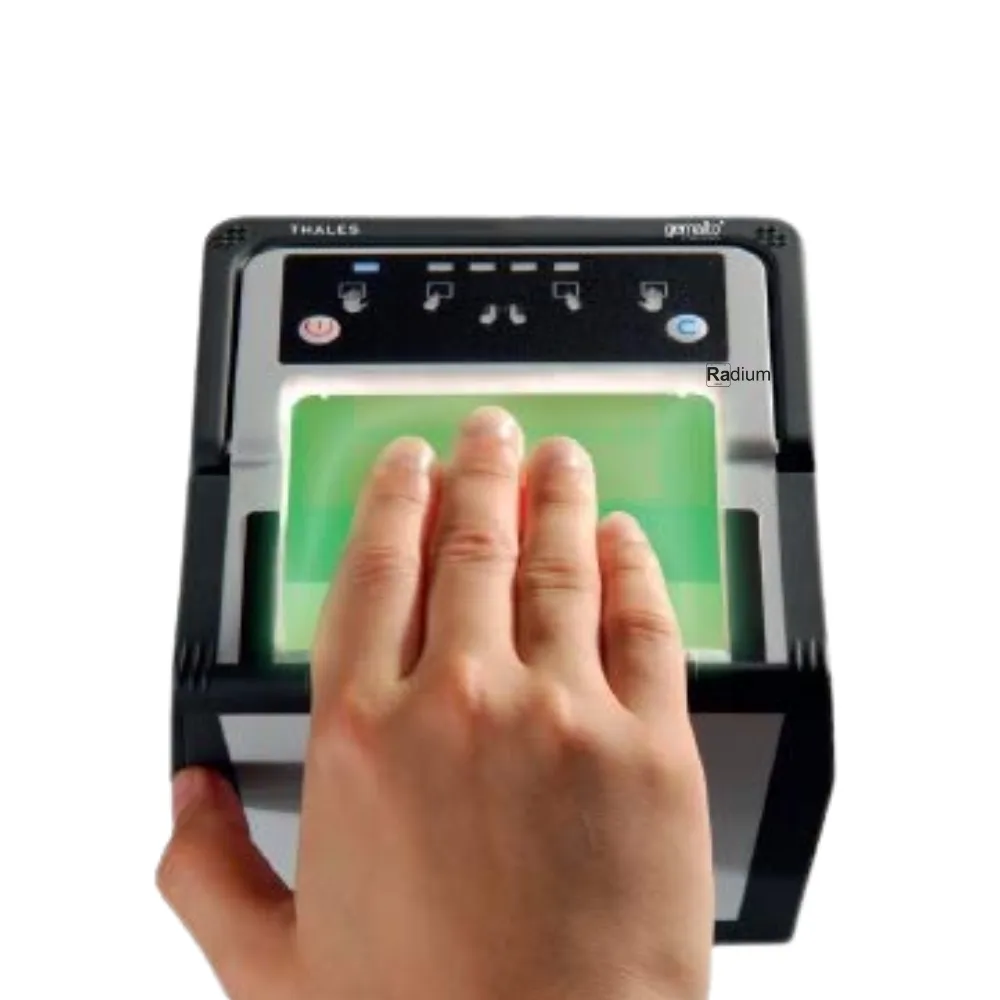

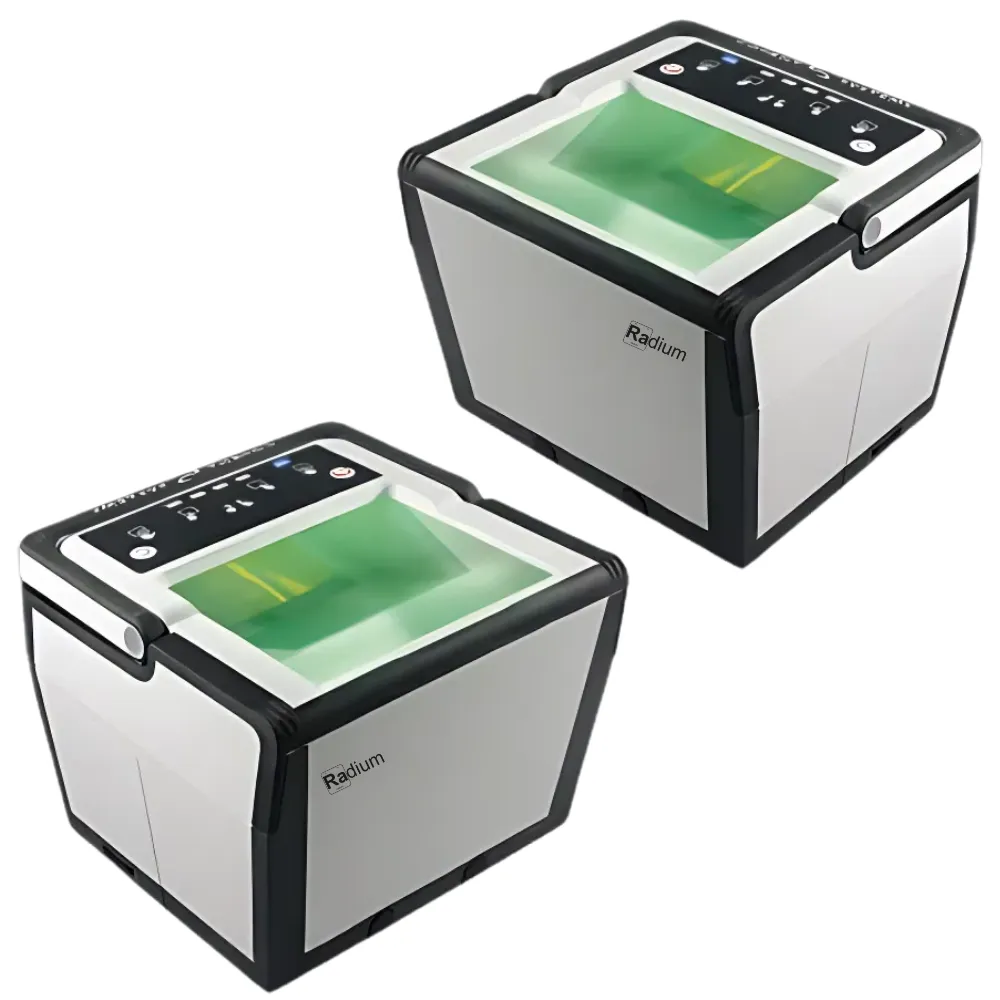

Thales Slap Fingerprint Scanner of Cogent 3M CS500F

Thales Slap Fingerprint Scanner of Cogent 3M CS500F

The Thales Slap Fingerprint Scanner by Cogent 3M CS500F is a high-performance biometric device that quickly captures forensic-quality fingerprint images easily. Formerly known as 3M Cogent, Thales has been developping &enhancing these fingerprint scanners to offer better performance in advanced optical systems, reject ambient-light while capturing high-quality fingerprints from stained, marked, or dark fingers. It gives a fast,accurate fingerprint, able to capture images at 10 frames per second. This is a versatile fingerprint scanner, in different models capable of capturing single flat, single rollor dual flat fingerprints.

The CS500F uses a USB connection for data transfer and power, so there's no need excess cables. It is easily integrated into new or existing applications. The software development kits of the device are based on proven biometric technologies from Thales: applications for fingerprint capture, quality check, WSQ compression, verification, and 1 identification. The SDKs allow integration of the CS500F into any third-party application with ease, making it perfect for every system integrator/solution provider.

The speed of acquisition is boosted up to outstanding performance through USB 3.0 technology in the Thales CS500F.

This compact, FBI App-F certified 10-print device is used in all applications requiring four-slaps and rolled fingerprint acquisition.

 Its main areas of application are issuance of eID documents and criminal identification, where speed, accuracy, and reliability are imperative.

The ergonomic design of CS500F combines with the easy-to-integrate SDK architecture to make it an ideal solution for system integrators/solution providers. It 12 tri-color LED-based user interfaces that facilitates the acquisition procedure with indications of which fingerprint(s) to acquire and quality feedback. This intuitive interface removes the need for skilled operators, increasing workflow efficiency and reducing training time.

The Thales-CS500F can be fitted with a fake finger detection solution based on software that enables it to detect counterfeit fingerprints. This feature improves the security of the device to ensure that only real fingerprints are captured and processed. Additionally, patented Liveness-Detection LFD technology fortifies security by ensuring that the fingerprints are from live fingers, thus counteracti attempts at spoofing with fake fingers made from materials such as silicone, rubber, or latex.

The CS500F is certified for both FBI IAFIS IQS Appendix F (FAP60) and for Mobile ID Appendix F, thus proving the real strictness of this standard for image quality and interoperability.

Certification ensures that the images produced by the scanner are of high quality, appropriate to all biometric working modes, including large-scale machine one-to-many matching operations.

Get the Thales Slap Fingerprint Scanner from Radium Box. For support and other related queries Call us at: +91 84343 84343 or Email us at: [email protected] .We offer  the best pricing and service for all of your biometric device needs.

Specification

• Product

  • Brand: Thales 3M Cogent

  • Model Number: CS500F

  • Warranty: 1 Year

  • Manufactured by: Thales Group

• OS Support & System Requirements

  • OS Support: Windows

• Images & Capture

  • Sensor Type: Optical

  • Resolution: 500 dpi

  • Grayscale: 256 gray levels

  • Supported Image Formats: WSQ Compression (Up to 15:1)

  • Image Size: 1600 x 1500 pixels (SLAP) - 800 x 800 pixels (Rolled)

  • FBI / Image Certifications: FBI IAFIS IQS Appendix F (FAP60) & Mobile ID Appendix F certified

  • Speed/API Interface: Fast acquisition speed via USB 3.0

• Weight & Dimensions

  • Product Weight: 1.5 kg

  • Platen Size: 151 mm x 148 mm x 102 mm

  • Sensing Area: 3.2" x 3.0" (Flat) - 1.6" x 1.6" (Rolled)

  • Scanner Assembly Dimensions: 3.8” x 3.1” (96 mm x 79 mm)

• Power & Connectors

  • Interface: USB 3.0

  • Connector Type: USB

  • Power Source: USB powered

  • USB Voltage Level: 5 V DC

  • Power consumption: 500 mA

• Conformance & Certifications

• USB Certification: USB-IF compatible

• USB-IF compatibility: Yes

• FCC/CE/UKCA Conformance: Yes

• Compliance/Certifications: FBI certified

• Temperature & Humidity

• Operating Temperature: 0 DegreeC to 50 DegreeC

• Humidity: -10 To +65 Degree Celcius

• Storage Temperature: -20 DegreeC to 60 DegreeC

• Surface & Systems

• Ingress Protection / Water / Dust: IP54

• Surface Durability: Scratch-resistant surface

• Compliance & Regulations

• FCC: Yes

Features:

• Forensic-Quality Imaging: Quickly and reliably capture high-quality fingerprints, even with fingers that are stained, marked, or dark.

• Advanced Optical System: Reject ambient light to ensure accurate capture of fingerprints.

• USB Connectivity: Simplifies integration, eliminates excess cables; utilizes USB for data transfer and power.

• Versatile Models: Models available for single flat, single roll, and dual flat fingerprints.

• User-Friendly Interface: 12 tri-color LEDs guide users in fingerprint acquisition, providing quality feedback.

• Fake Finger Detection: Software-based solution for counterfeit fingerprints, increasing security.

• Liveness Detection (LFD): A patented technology to guarantee that fingerprints come from live fingers and not by spoofing means.

• FBI and Mobile ID Certifications: The device is reliable because it meets the strictest requirements in quality standards of image quality and interoperability.

• Easy Integration: SDKs are compatible with multi-OS, allowing integration of the scanner into third-party applications easily.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
