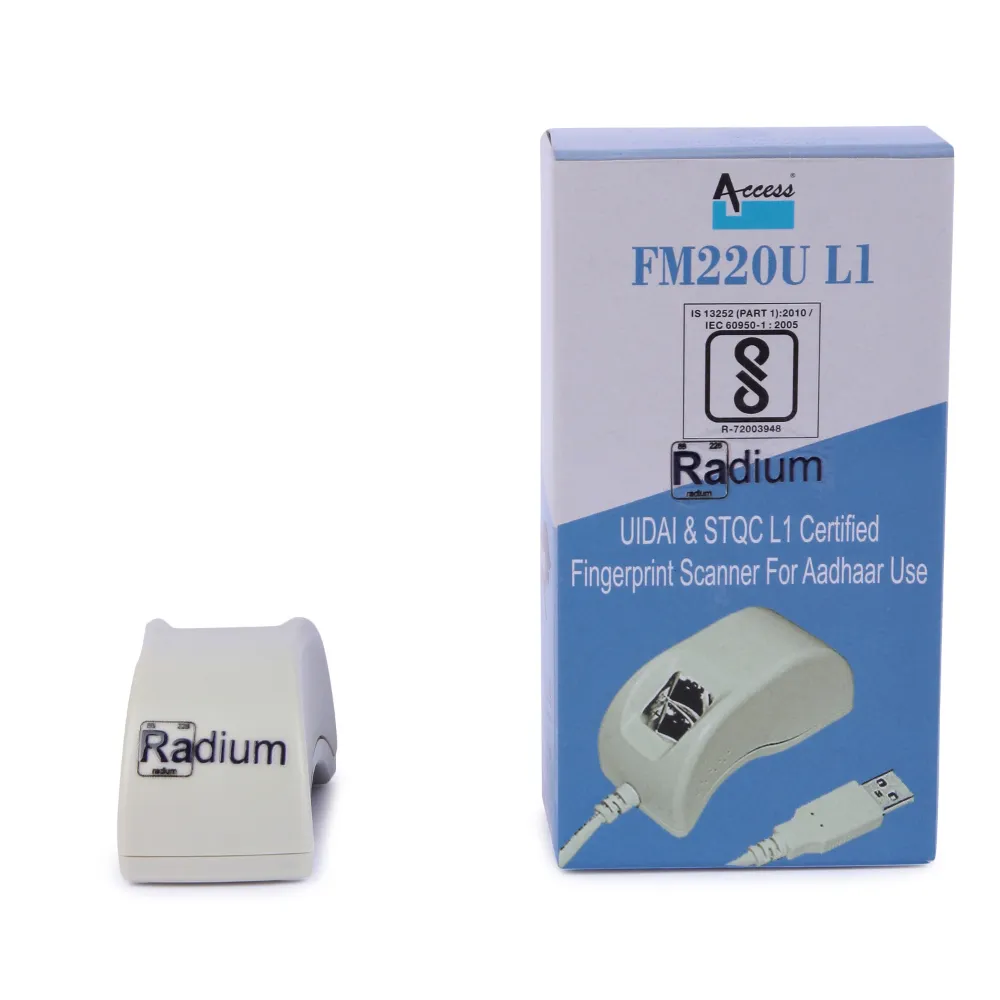

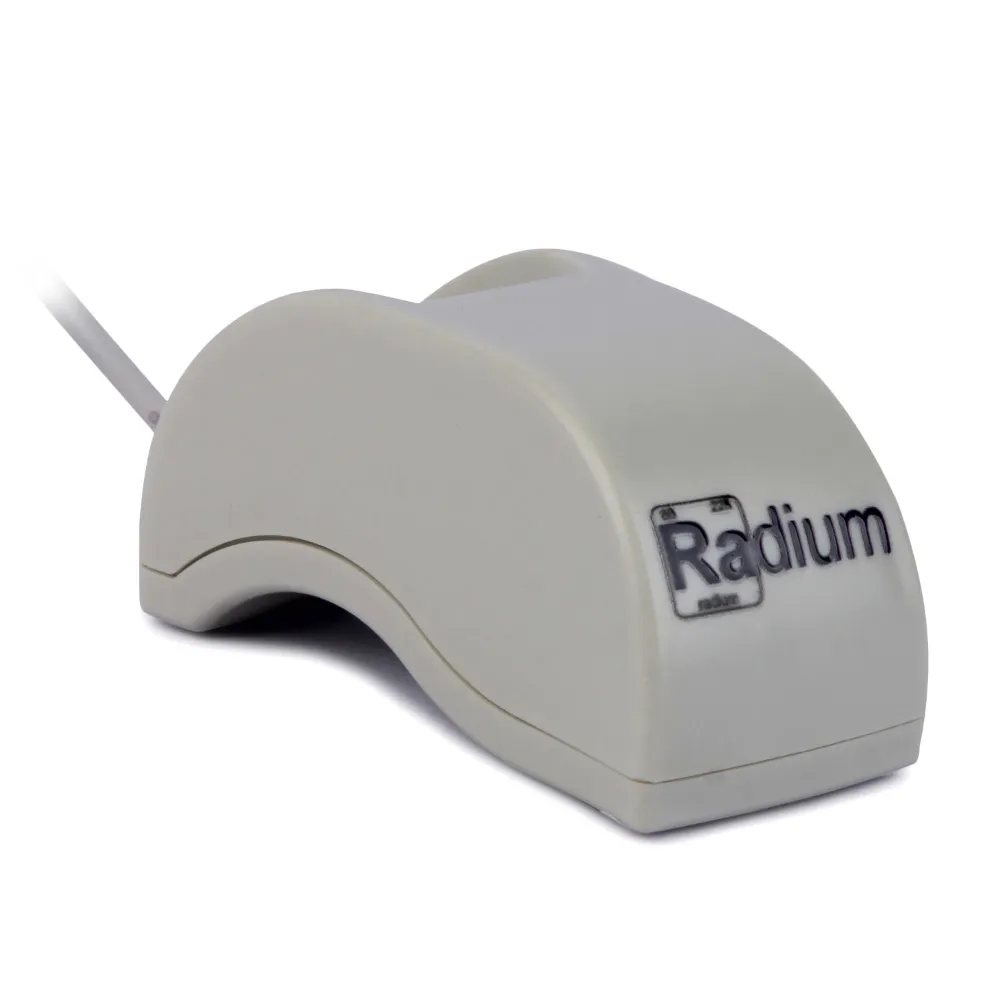

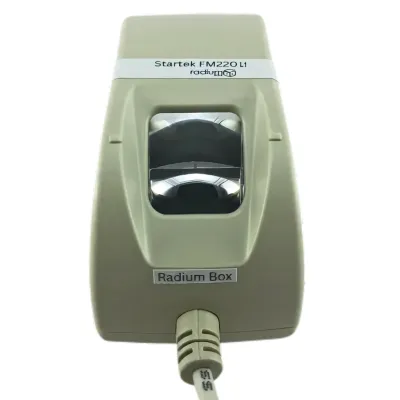

StarTek Access FM220 U L0 / L1 Single Fingerprint Biometric Scanner with RD Service

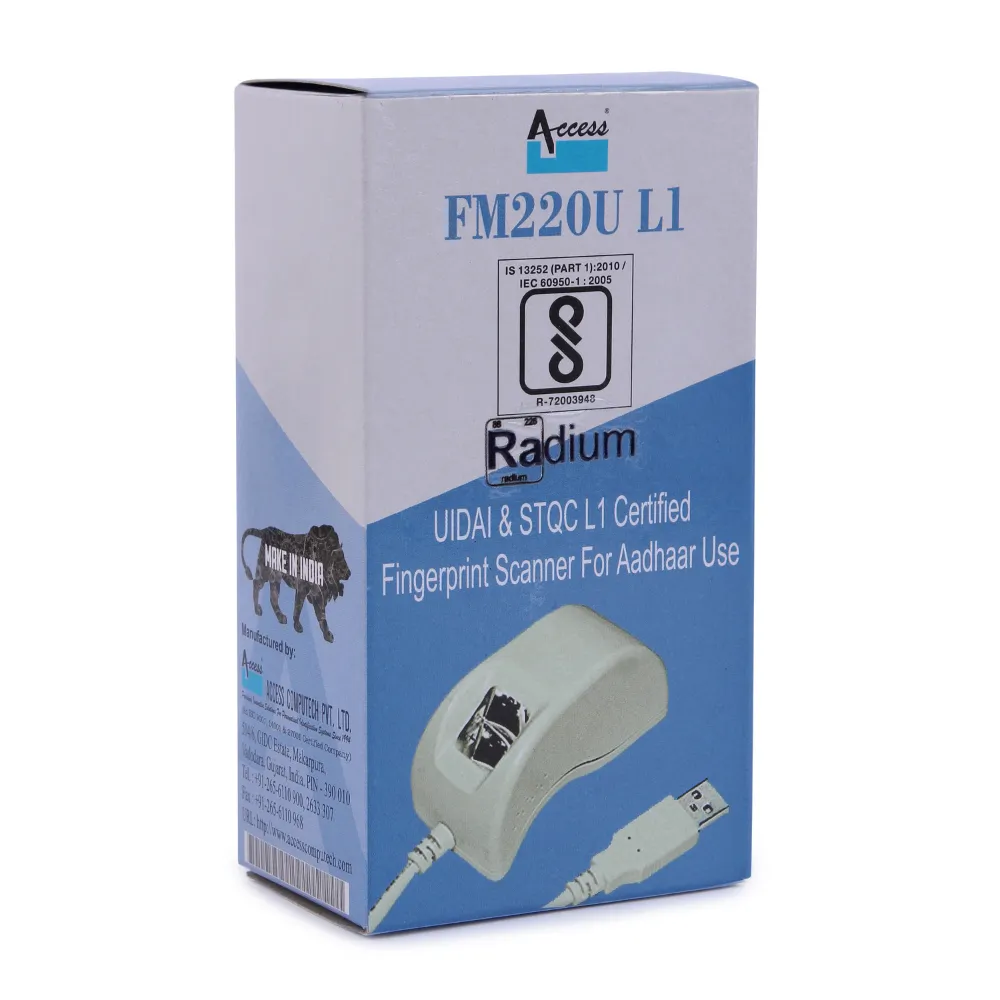

Access FM220U L1 Biometric Fingerprint Scanner

The Access FM220U L1 Biometric Fingerprint Scanner is designed for fast and secure fingerprint authentication.

This compact and efficient scanner has a USB C-type connector and comes in White color, certified by UIDAI to perform Aadhaar authentication. It's fast scanning and matching speeds make the device suitable for various applications in the field of biometrics. The biometric device FM220U L1 weighs only 100 grams and with dimensions of 80mm(L) x 41mm(M)x40mm(H), meeting < 1% PIV Distortion. This startek fingerprint scanner is lightweight and can be easily used on desktop and mobile applications.

The Access FM220  L1 fingerprint scanner excels in severe conditions, even on smeared, scarred, stained, and smudged fingers. Its robust design ensures reliable performance even in harsh environments, such as remote and dusty locations. The scanner uses optical sensors with an LED light source that illuminates the field of view, ensuring that it produces a non-distorted image quality and takes a very short time to scan for accurate, fast fingerprint capture. It supports various APIs, including Image Capture, Enrollment/Template Extraction, and enables the support of image formats such as JPEG 2000 lossless and WSQ (Compression 10:1). The FM220U L1 is the best solution for biometric applications while guaranteeing the highest level of security and reliability with various identification processes.

Manufactured by Access Computech India P. LTD, the FM220U L1 follows MOSIP L1 and UIDAI L1 specifications, ensuring enhanced security for signing and encryption of biometric data.

The device uses light from an LED source and CMOS optical technology to accurately capture the fingerprint. It supports on both Windows and Android operating systems, and is easy to integrate into existing systems. Access Computech India P.LTD is a global leader in the fingerprint identification sector and collaborates with business and governmental partners to provide specialized security platforms that will seamlessly integrate with its dynamic fingerprint identification products.

The Access FM220U L1 is certified and approved by UIDAI and STQC for Aadhaar authentication, ensuring its secure biometric identification and meeting the international standards for secure biometric authentication. It is used in various Aadhaar-based applications, like eKYC authentication and SIM activation for telecom operators, besides biometric attendance systems. Access Startek FM220 U L1 fingerprint scanner with RDservice is highly secure then L0 device for signing and encryption of biometric data for DSC and SIM activation.

Due to its high security and reliability features, the StarTek FM220U L1 is the best choice for  Aadhaar-enabled projects. It is used in real-life applications like NDLM, Apna CSC, Jeevan Pramaan, Aadhaar Enabled Biometric Attendance System, and VTP. The device's fast scanning and non-distorted quality of the image make this scanner apt for fingerprint verification on government-approved initiatives and private sector uses. Its robust design gives the device high performance in dusty or other harsh conditions for correct biometric identification. The FM220U L1 ensures secure handling of biometric data in compliance with UIDAI and STQC standards, making it the device of choice for any Aadhaar-based application.

Those who are looking for a reliable and efficient biometric fingerprint scanner, buy  the Startek FM220U L1 at the best price  available on Radium Box. The device comes with full support for RD service registration . We provide all the services like, download and  installing the StarTek FM220U L1 driver, with the option of online payment using an EMI facility. One can opt for 1/2/3 years of RD service as extend device subscription with AMC or installation service support for hassle-free use. The FM220U L1 offers high security and reliable performance in various Aadhaar-based applications, making it very ideal for improving biometric solutions. for any further information or support related enquiries contact us at our Toll-Free Helpline +91 84343 84343 or email [email protected]. Buy Startek L1 device in bulk ordering at best price in India.

Specification

• Product

  • Brand: Access

  • Model Number: FM220U

  • Security Level: L1

  • Warranty: 1 Year Warranty

  • RD Service: 1 Year RD Service

  • Origin: Made in India

  • Manufactured by: Access Computech India P. LTD.

• OS Support & System Requirements

  • OS Support: Windows, Android, Linux with kernel 2.6 (x86) & WinCE5.0 (x86 and Arm9)

• Images & Capture

  • Sensor Type: CMOS-based Optical Sensor

  • Resolution: 500 DPI

  • Grayscale: 256 levels (8-bit)

  • Supported Image Formats: JPEG 2000 lossless, WSQ (Compression 10:1)

  • FBI / Image Certifications: UIDAI, STQC, MOSIP L1

  • Speed/API Interface: Fast scanning and matching speed

  • Image Capture Area: 13.41 x 16.45(mm); 15.44 x 17.475 (mm) Optional

  • Scanner Output Image Size/Native: 264×324 pixel (HxV), 304 x 344 pixel (HxV) Optional

• Weight & Dimensions

  • Product Weight: 100 g

  • Platen Size:  16.5×19 (in mm) (HxV)

  • Scanner Assembly Dimensions: 10 x 8 x 6 cm

• Power & Connectors

  • Interface: USB

  • Power Source: USB powered

  • USB Voltage Level: 5V

  • Standby: 40mA, 160 mA. Approx

• Conformance & Certifications

  • USB Certification: Yes

  • USB-IF compatibility: Yes

  • FCC/CE/UKCA Conformance: Yes

  • Air Discharge / Contact Discharge: Yes

  • Equipment Safety: Yes

  • Hazardous Material: Compliant

  • Vibration Test: Passed

• Temperature & Humidity

  • Operating Temperature: 0°C to 50°C

  • Humidity: 20% to 90% (non-condensing)

  • Storage Temperature: -20°C to 70°C

• Surface & Systems

  • Surface Durability: High durability for continuous use

  • Cleaning & Sanitization: Easy to clean and sanitize

• Compliance & Regulations

  • FCC: Compliant

Caution: Handle the StarTek L1 with care for the best performance, and its longevity. Don’t expose the device to extreme temperatures, moisture, or dust beyond its IP54 rating. Always use and service the unit as per the manufacturer's instructions in order to avoid damage and ensure secure data handling.

Features:

• BIS Registration: Startek L1 is registered under BIS No. R-72003948, which assures compliance to IS 13252 (Part-I):2010 + A1:2013 + A2:2015 and IEC 60950-1:2005 + A1:2009 + A2:2013.

• Specifications Compliance: The device is compliant with specifications mentioned in MOSIP L1 and UIDAI L1, along with a pre-certified Renesas controller.

• Connectivity: It provides a USB 2.0 interface, high-speed, Micro USB, and Type-C connectivity options.

• Template Size: The scanner enables small template size and is ISO & PIV approved.

• Ergonomic Design: The design guides the finger to position the finger correctly for proper scanning, thus improving user experience.

• Durability: Dust and water ingress are protected against an IP54 rated.

• Security Features: Secure boot, encryption in trust zone, FTM supported security measures

• Fast Scanning and Matching: Engineered to provide fast scanning and matching performance that improves overall efficiency.

• Low Distortion of Image: The scanner attains less than 1% distortion and hence provides high-quality and accurate fingerprint images.

• Adjustable Security Levels: Users can set various security levels, making it suitable for a range of applications with the ultimate vision of augmenting general security.

• Non-Distorted Image Quality: This is capable of capturing clear, distinct, and accurate fingerprint images, even with smeared, scarred, stained, or smudged fingers.

• ISO Compliance: Startek L1 is compliant with the international standards for fingerprint scanning and authentication to ensure trustworthy performance.

• CMOS-Based Optical Reader: Incorporating a more efficient CMOS-based optical reader for reading and checking the images.

• Universal Applications: Can be applied to welfare distribution, retail or banking POS, school attendance, workforce management, ISP logon, foreign labor management, e-shopping, e-banking, e-workflow, and ERP, voting and club member verification.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
